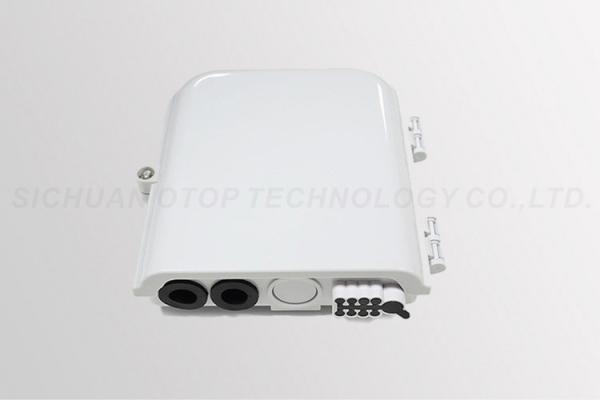

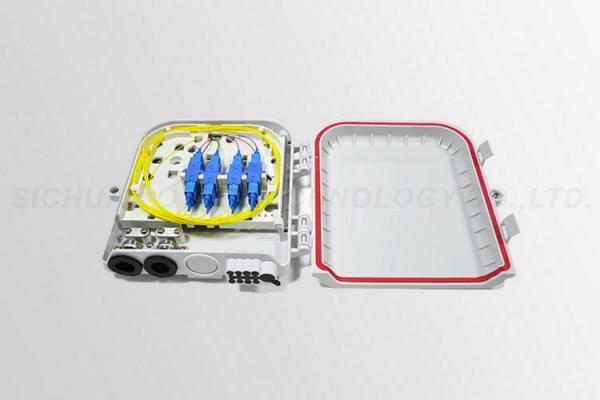

Outdoor Fiber Distribution Box 8 Port ABS PC Material 1*8 PLC Splitter
Outdoor Fiber Distribution Box 8 Port ABS PC Material 1*8 PLC Splitter
Outdoor Fiber Distribution Box 8 Port ABS PC Material 1*8 PLC Splitter
Outdoor Fiber Distribution Box 8 Port ABS PC Material 1*8 PLC Splitter
Specifications
Brand Name :
OTOP
Model Number :
8 Port ODB
Certification :
RoHS, ISO9001,ISO14000, OHSAS18001
Place of Origin :
China
MOQ :
100pcs
Price :
USD 3-5 per pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10000 pcs per month
Delivery Time :
10 working days
Packaging Details :
Carton
Application :
FTTX, PON & CATV
Cable Entries :
Waterproof
Installation :
Wall Mounting(Indoor/Outdoor) Pole Mounting
Level of Protection :
IP65
Material :
ABS+PC
No. of Adaptor & Splitter :
1*8 PLC Splitter/Sc 8 Cores/Duplex LC 8 Cores
Description

Outdoor Fiber Distribution Box 8 Port ABS PC Material 1*8 PLC Splitter

♦ Description

Industry Standard User Interface, be made of high impact plastic.

Can accommodate 1x4 & 1X8 & 1X16PLC splitter.
widely used in FTTH access network.

Widely used in FTTX access networks.

Telecommunication Networks

CATV networks

Local Area Networks

The Fiber Termination Box is designed specifically for FTTX network building.
Can be done fiber splicing ,splitting, distribution in this distribution box,
It is well suited for indoor or outdoor use.

♦ Application

- Great for wall mounting or pole mounting

- Widely used in FTTH network system

- PC+ABS material,wet-proof,water-proof,anti-aging

- Protection level up to IP65It is applicable to installation and use of SC adapter or LC adapter,fast connector.

♦ Specification

Environmental requirement Working temperature:-40~+80ºC Relative humidity:≤85%(+30ºC) Atmospheric pressure:70Kpa~106Kpa
Main technical datasheet Insertion loss:≤0.2dB UPC return loss:≥50dB APC return loss:≥60dB Life of insertion and extraction:>1000
Thunder-proof technical datasheet The grounding device is isolated with the cabinet, isolation resistance is less than 2x104 MΩ/500V(DC); IR≥2x104MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover;U≥3000V
Dimensions(L*W*H)mm 275×200×80
Installation Wall mounting(indoor/outdoor) Pole Mounting
Level of protection IP65
Cable Entries Waterproof connector
Weight 0.85kg
No. of Adaptor & Splitter 1*8 PLC splitter/SC 8 CORES/Duplex LC8 cores
Max. Capacity of Fiber 8 fibers
Max. Capacity of Splice 8 cores

♦ Packing

- Carton
