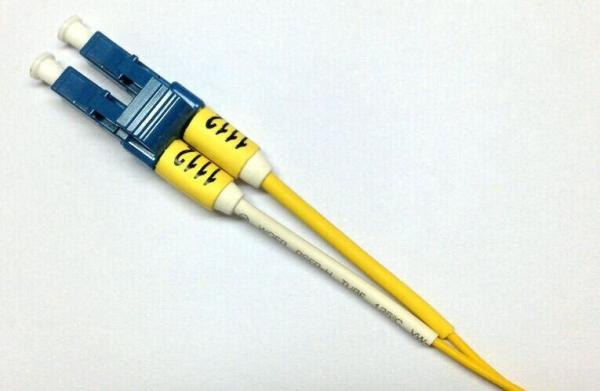

Loose Tube Zirconia Ferrule 18mm Short Boot LC Patch Cord
Loose Tube Zirconia Ferrule 18mm Short Boot LC Patch Cord
Specifications
Brand Name :
ZGT
Model Number :
ZZTPC-LC-DX
Certification :
ROHS,UL
Place of Origin :
SHENZHEN,CHINA
MOQ :
100 PCs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
900K / Month
Delivery Time :
3-7days
Packaging Details :
1. Individual PE bag packing and blister packing available, 2. OEM design is available on request
Standards :
Telcordia GR-326, IEC, TIA/EIA,UL
Application :
Telecom network,data center, CATV, FTTX project
Inspection :
Insertion Loss,Return Loss and End-face Geometric
Connector type :
SC, SC/APC, LC, LC/APC, FC, FC/APC, ST, MT-RJ, MU, E2000, E2000/APC, MPO, DIN etc available
Description

Fiber Optic Cable Assembly Fiber Optical Patch Cord with Short Boot 18mm short boot

Specifications:

 SM MM
9/125 50/125 62.5/125 OM3 OM4
UPC APC PC
Insertion loss ≤0.2dB ≤0.3dB
Return loss ≥50dB ≥60dB ≥35dB
Durability 1000 times, ≤0.2dB 1000 times, ≤0.3dB
Working Tem. -40 to +80℃
Storage Tem. -40 to +80℃
Endface Geometry
Parameter 2.5μmm Ferrule 1.25μmm Ferrule
UPC APC UPC APC
Radius of Curvature 10～25mm 5～12mm 7～25mm 5～12mm
Apex Offset 0～50μm 0～50μm 0～50μm 0～50μm
Fiber Height -100～50nm -100～100nm -100～50nm -100～100nm
Angle 7.7-8.3degree 7.7-8.3degree
3D Geometry Loose Tube Zirconia Ferrule 18mm Short Boot LC Patch Cord Loose Tube Zirconia Ferrule 18mm Short Boot LC Patch Cord Loose Tube Zirconia Ferrule 18mm Short Boot LC Patch Cord Loose Tube Zirconia Ferrule 18mm Short Boot LC Patch Cord

Description:

ZGT provide a full range of patch cords, such as SC, SC/APC, LC, LC/APC, FC, FC/APC, ST, MT-RJ, MU, E2000, E2000/APC, MPO, DIN etc for both Single mode and Multimode, SX ,DX and Multi-core, The monthly production capacity is 900k, all products are designed and controlled under IEC standard, meet the requirement of Telcordia GR-326 and TIA/EIA as well.

Material:

Ferrule: Zirconia

Fibers: Corning, Draka, YOFC

Jacket: PVC, LSZH, OFNR, OFNP

Cable: loose tube

Applications:

Telecommunication network

CATV system

Data Center

Local Area Network

Active/Passive device

FTTH and FTTX

Loose Tube Zirconia Ferrule 18mm Short Boot LC Patch Cord
