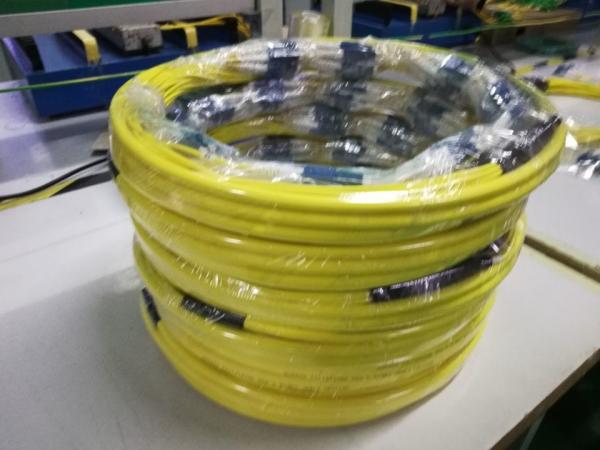

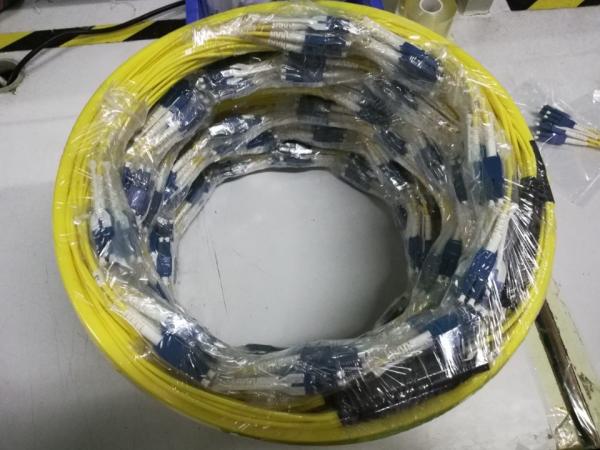

SM/MM UPC/APC Trunk Cable 96f Fiber Pigtails Patch Cords
SM/MM UPC/APC Trunk Cable 96f Fiber Pigtails Patch Cords
SM/MM UPC/APC Trunk Cable 96f Fiber Pigtails Patch Cords
SM/MM UPC/APC Trunk Cable 96f Fiber Pigtails Patch Cords
SM/MM UPC/APC Trunk Cable 96f Fiber Pigtails Patch Cords
SM/MM UPC/APC Trunk Cable 96f Fiber Pigtails Patch Cords
SM/MM UPC/APC Trunk Cable 96f Fiber Pigtails Patch Cords
SM/MM UPC/APC Trunk Cable 96f Fiber Pigtails Patch Cords
Specifications
Brand Name :
ZGT
Model Number :
ZZTPC-FC-S
Certification :
ROHS,UL
Place of Origin :
SHENZHEN,CHINA
MOQ :
100 PCs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
900K / Month
Delivery Time :
3-7days
Packaging Details :
1. Individual PE bag packing and blister packing available, 2. OEM design is available on request
Standards :
Telcordia GR-326, IEC, TIA/EIA,UL
Application :
Telecom network,data center, CATV, FTTX project
Inspection :
Insertion Loss,Return Loss and End-face Geometric
Materials :
All new and RoHS compliant
Connector type :
SC, SC/APC, LC, LC/APC, FC, FC/APC, ST, MT-RJ, MU, E2000, E2000/APC, MPO, DIN etc available
Fiber mode :
Single mode and Multimode
Description

96f Fiber Optic Cable Assembly Fiber Optical Patch Cord SM/MM UPC/APC,Jumper HD with push-pull tab

Specifications:

 SM MM
9/125 50/125 62.5/125 OM3 OM4
UPC APC PC
Insertion loss ≤0.2dB ≤0.3dB
Return loss ≥50dB ≥60dB ≥35dB
Durability 1000 times, ≤0.2dB 1000 times, ≤0.3dB
Working Tem. -40 to +80℃
Storage Tem. -40 to +80℃
Endface Geometry
Parameter 2.5μmm Ferrule 1.25μmm Ferrule
UPC APC UPC APC
Radius of Curvature 10～25mm 5～12mm 7～25mm 5～12mm
Apex Offset 0～50μm 0～50μm 0～50μm 0～50μm
Fiber Height -100～50nm -100～100nm -100～50nm -100～100nm
Angle 7.7-8.3degree 7.7-8.3degree
3D Geometry SM/MM UPC/APC Trunk Cable 96f Fiber Pigtails Patch Cords SM/MM UPC/APC Trunk Cable 96f Fiber Pigtails Patch Cords SM/MM UPC/APC Trunk Cable 96f Fiber Pigtails Patch Cords SM/MM UPC/APC Trunk Cable 96f Fiber Pigtails Patch Cords

Description:

ZGT provide a full range of patch cords, such as SC, SC/APC, LC, LC/APC, FC, FC/APC, ST, MT-RJ, MU, E2000, E2000/APC, MPO, DIN etc for both Single mode and Multimode, SX ,DX and Multi-core, The monthly production capacity is 900k, all products are designed and controlled under IEC standard, meet the requirement of Telcordia GR-326 and TIA/EIA as well.

Material:

Ferrule: Zirconia

Fibers: Corning, Draka, YOFC

Jacket: PVC, LSZH, OFNR, OFNP

Cable: loose tube

Applications:

Telecommunication network

CATV system

Data Center

Local Area Network

Active/Passive device

FTTH and FTTX

SM/MM UPC/APC Trunk Cable 96f Fiber Pigtails Patch Cords
