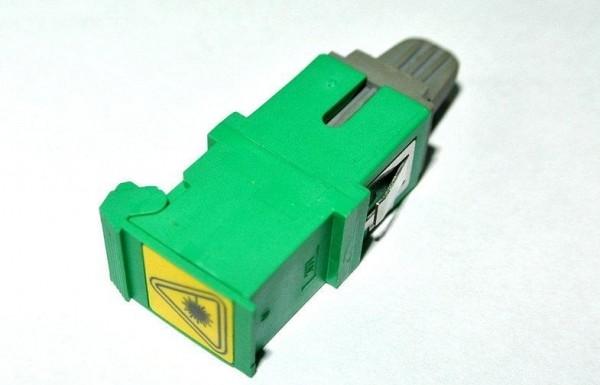

SC SX Fiber Optic Adapter With Shutter Low Insertion Loss Customized Design
SC SX Fiber Optic Adapter With Shutter Low Insertion Loss Customized Design
Specifications
Brand Name :
ZGT
Model Number :
ZGT-S-001
Certification :
ISO9001,RoHS
Place of Origin :
CHINA
MOQ :
100PCS
Packaging Details :
Plastic bag
Material :
ABS PC
Product name :
fiber optic adapter
Color :
Green
Type :
Singlemode
Insertion loss :
≤ 0.2dB(SM&MM)
Application :
FTTH FTTB FTTX Network,Telecommunication/Fiber Optic CATV/Multimedia
Connector type :
SC
Return loss :
>60db
Operating temperature :
-40℃ to 85℃
Durability :
< 0.2db typical change,1000 time matings
Wavelength :
1310nm/1550nm/850nm/1300nm
Storage temperature :
Storage Temperature
Sleeve material :
Ceramic
Housing material :
Plastic
Operating temp :
-40 to +85 degree
Warranty :
5 years
Description

Fiber Optic SC SX Adapter with side shutter outer shutter with low insertion loss

SC Shutter adapterYou are here: Home > Products > Fiber Optic Shutter adapter

SC SX Adapter with side shutter

Serial Number: ZZTAD-SC14-S-0

Competitive Advantage:

Telcordia GR-326, IEC, TIA/EIA Standard compliant.

100% Optical performance inspection.

Low Insertion Loss.

RoHS Compliance.

Customized design and production.

Parts &Material

Parts

Material

Remarks

Sleeve

Zirconia, PB

Housing

PBT

Flammability UL94 V-0

Dust cap

ABS

Flammability UL94 V-0

Clip

Stailess steel

Optical Performance

Premium Grade

Standard Grade

Insertion Loss

≤0.1dB

≤0.2dB

Durability

1000 times

1000 times

Enviroment and Mechanical

Properties

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

1000 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-6

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-12

≤0.2dB

Temperature Cycling

40C to +75C, 40 cycles

IEC61300-2-22
