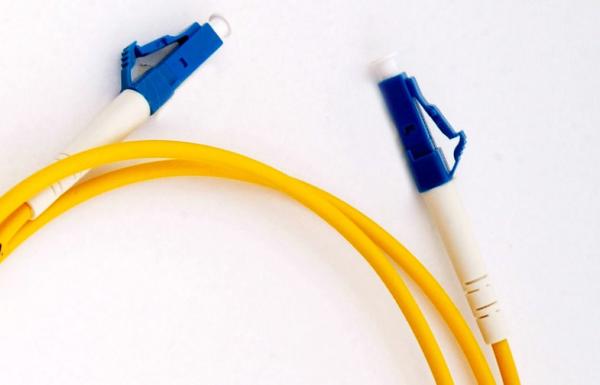

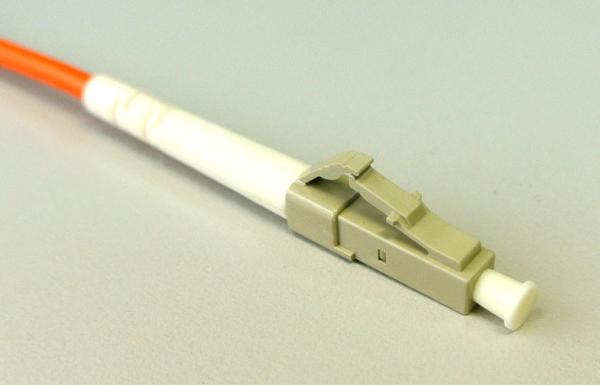

Reliable Fiber Patch Cord Lc , Optical Patch Cord With Low Insertion Loss
Reliable Fiber Patch Cord Lc , Optical Patch Cord With Low Insertion Loss
Reliable Fiber Patch Cord Lc , Optical Patch Cord With Low Insertion Loss
Reliable Fiber Patch Cord Lc , Optical Patch Cord With Low Insertion Loss
Reliable Fiber Patch Cord Lc , Optical Patch Cord With Low Insertion Loss
Reliable Fiber Patch Cord Lc , Optical Patch Cord With Low Insertion Loss
Reliable Fiber Patch Cord Lc , Optical Patch Cord With Low Insertion Loss
Reliable Fiber Patch Cord Lc , Optical Patch Cord With Low Insertion Loss
Specifications
Brand Name :
ZGT
Model Number :
ZZTPC-LC
Certification :
ROHS,UL
Place of Origin :
SHENZHEN,CHINA
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
900K / Month
Delivery Time :
3-7days
Packaging Details :
1. Individual PE bag packing and blister packing available, 2. OEM design is available on request
Standards :
Telcordia GR-326, IEC, TIA/EIA,UL
Application :
Telecom network,data center, CATV, FTTX project
Inspection :
Insertion Loss,Return Loss and End-face Geometric
Compatibility :
Compatible with all standard fibre optic equipment and connectors
Materials :
All new and RoHS compliant
Connector type :
SC, SC/APC, LC, LC/APC, FC, FC/APC, ST, MT-RJ, MU, E2000, E2000/APC, MPO, DIN etc available
Fiber mode :
Single mode and Multimode
Cable length :
Customized
Description

ZGT LC Fiber Optic Cable Optical Patch Cord SM/MM UPC/APC 2.0/3.0mm

You are here: Home > Products > Patch Cords and Pigtails

Serial Number: ZZTPC-LC

Specifications:

 SM MM
9/125 50/125 62.5/125 OM3 OM4
UPC APC PC
Insertion loss ≤0.2dB ≤0.3dB
Return loss ≥50dB ≥60dB ≥35dB
Durability 1000 times, ≤0.2dB 1000 times, ≤0.3dB
Working Tem. -40 to +80℃
Storage Tem. -40 to +80℃
Endface Geometry
Parameter 2.5μmm Ferrule 1.25μmm Ferrule
UPC APC UPC APC
Radius of Curvature 10～25mm 5～12mm 7～25mm 5～12mm
Apex Offset 0～50μm 0～50μm 0～50μm 0～50μm
Fiber Height -100～50nm -100～100nm -100～50nm -100～100nm
Angle 7.7-8.3degree 7.7-8.3degree
3D Geometry Reliable Fiber Patch Cord Lc , Optical Patch Cord With Low Insertion Loss Reliable Fiber Patch Cord Lc , Optical Patch Cord With Low Insertion Loss Reliable Fiber Patch Cord Lc , Optical Patch Cord With Low Insertion Loss Reliable Fiber Patch Cord Lc , Optical Patch Cord With Low Insertion Loss

Description:

ZGT provide a full range of patch cords, such as SC, SC/APC, LC, LC/APC, FC, FC/APC, ST, MT-RJ, MU, E2000, E2000/APC, MPO, DIN etc for both Single mode and Multimode, SX ,DX and Multi-core, The monthly production capacity is 900k, all products are designed and controlled under IEC standard, meet the requirement of Telcordia GR-326 and TIA/EIA as well.

Material:

Ferrule: Zirconia

Fibers: Corning, Draka, YOFC

Jacket: PVC, LSZH, OFNR, OFNP

Cable: loose tube

Reliable Fiber Patch Cord Lc , Optical Patch Cord With Low Insertion Loss

Zirconia Ferrule gets us the best Insertion Loss and Return Loss
Reliable Fiber Patch Cord Lc , Optical Patch Cord With Low Insertion Loss
Optical fiber sheath provides maximum protection
Reliable Fiber Patch Cord Lc , Optical Patch Cord With Low Insertion Loss
Printing helps quickly distinguish and identify different cables

Applications:

Telecommunication network

CATV system

Data Center

Local Area Network

Active/Passive device

FTTH and FTTX

Competitive Advantage:

1.Comply with Telcordia GR-326, IEC, TIA/EIA,UL Standards,Materials are all new and RoHS Compliant.Ideal for all fiber networks including telecom network,data center, CATV, FTTX project.
2.Every pigtail is optically tested for Insertion Loss and End-face Geometric to ensure a high quality end product.
3.Good optical performance-Low Insertion Loss ≤0.2dB and high Return Loss ≥50dB,ensure low signal loss and high reliability.
4.Compatible with all standard fibre optic equipment and connectors.
5.Connector type, fiber type and grade,jacket material, color and printings,lengths etc.can be customized.
6. Since 2000,ZGT has been specializing in optic fiber passive components,with about 20 years of accumulation, our product technology and production process has been in the forefront of the industry.
