Water Proof Pigtails Fiber Network Cable , Low Signal Loss Optical Cable Cord
Water Proof Pigtails Fiber Network Cable , Low Signal Loss Optical Cable Cord
Specifications
Brand Name :
ZGT
Certification :
ROHS,UL
Place of Origin :
CHINA
MOQ :
50 PCs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
900K / Month
Delivery Time :
3-7days
Packaging Details :
1. Individual PE bag packing 2. 12 pcs bundle per PE bag packing 3. 12 pcs per tray 4. OEM on customer's request
Standards :
Telcordia GR-326, IEC, TIA/EIA,UL
Application :
Telecom network,data center, CATV, FTTX project
Inspection :
Insertion Loss,Return Loss and End-face Geometric
Compatibility :
Compatible with all standard fibre optic equipment and connectors
Materials :
All new and RoHS compliant
Connector type :
SC, SC/APC, LC, LC/APC, FC, FC/APC, ST, MT-RJ, MU, E2000, E2000/APC, MPO, DIN etc available
Fiber mode :
Single mode and Multimode
Cable length :
Customized
Description

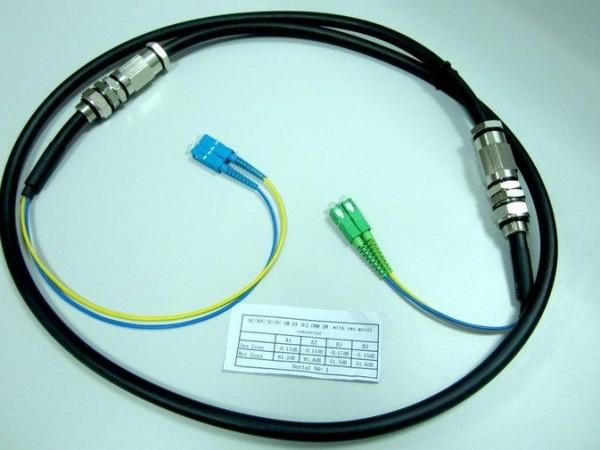

ZGT Water proof pigtails Fiber Optic Cable Optical Patch Cord SM/MM UPC/APC

You are here: Home > Products > Patch Cords and Pigtails

Serial Number: Water proof pigtails

Specifications:

 SM MM
9/125 50/125 62.5/125 OM3 OM4
UPC APC PC
Insertion loss ≤0.2dB ≤0.3dB
Return loss ≥50dB ≥60dB ≥35dB
Durability 1000 times, ≤0.2dB 1000 times, ≤0.3dB
Working Tem. -40 to +80℃
Storage Tem. -40 to +80℃
Endface Geometry
Parameter 2.5μmm Ferrule 1.25μmm Ferrule
UPC APC UPC APC
Radius of Curvature 10～25mm 5～12mm 7～25mm 5～12mm
Apex Offset 0～50μm 0～50μm 0～50μm 0～50μm
Fiber Height -100～50nm -100～100nm -100～50nm -100～100nm
Angle 7.7-8.3degree 7.7-8.3degree
3D Geometry Water Proof Pigtails Fiber Network Cable , Low Signal Loss Optical Cable Cord Water Proof Pigtails Fiber Network Cable , Low Signal Loss Optical Cable Cord Water Proof Pigtails Fiber Network Cable , Low Signal Loss Optical Cable Cord Water Proof Pigtails Fiber Network Cable , Low Signal Loss Optical Cable Cord

Material:

Ferrule: Zirconia

Fibers: Corning, Draka, YOFC

Jacket: PVC, LSZH, OFNR, OFNP

Cable: Tight buffer, easy stripping tight buffer

Applications:

Telecommunication network

CATV system

Data Center

Local Area Network

Active/Passive device

FTTH and FTTX

Competitive Advantage:

1.Comply with Telcordia GR-326, IEC, TIA/EIA,UL Standards,Materials are all new and RoHS Compliant.Ideal for all fiber networks including telecom network,data center, CATV, FTTX project.
2.Every pigtail is optically tested for Insertion Loss and End-face Geometric to ensure a high quality end product.
3.Good optical performance-Low Insertion Loss ≤0.2dB and high Return Loss ≥50dB,ensure low signal loss and high reliability.
4.Compatible with all standard fibre optic equipment and connectors.
5.Connector type, fiber type and grade,jacket material, color and printings,lengths etc.can be customized.
6. Since 2000,ZGT has been specializing in optic fiber passive components,with about 20 years of accumulation, our product technology and production process has been in the forefront of the industry.
