Specifications
Brand Name :
ZGT
Model Number :
ZZTPC-LC-0.9
Certification :
ROHS,UL
Place of Origin :
CHINA
MOQ :
50 PCs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
900K / Month
Delivery Time :
3-7days
Packaging Details :
1. Individual PE bag packing 2. 12 pcs bundle per PE bag packing 3. 12 pcs per tray 4. OEM on customer’s request
Standards :
Telcordia GR-326, IEC, TIA/EIA,UL
Application :
telecom network,data center, CATV, FTTX project
Inspection :
Insertion Loss and End-face Geometric
Compatibility :
Compatible with all standard fibre optic equipment and connectors.
Materials :
All new and RoHS compliant
Connector type :
SC, SC/APC, LC, LC/APC, FC, FC/APC, ST, MT-RJ, MU, E2000, E2000/APC, MPO, DIN etc available
Fiber mode :
Single mode and Multimode
Cable length :
Customized
Description

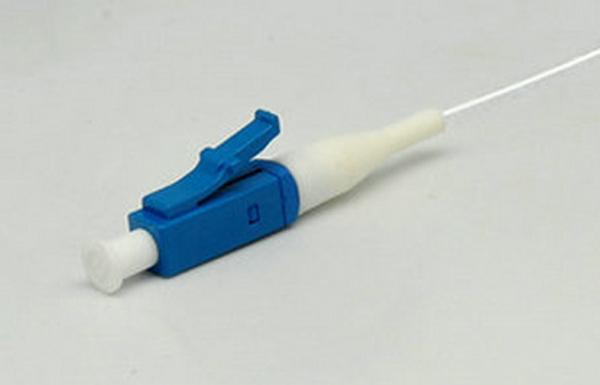

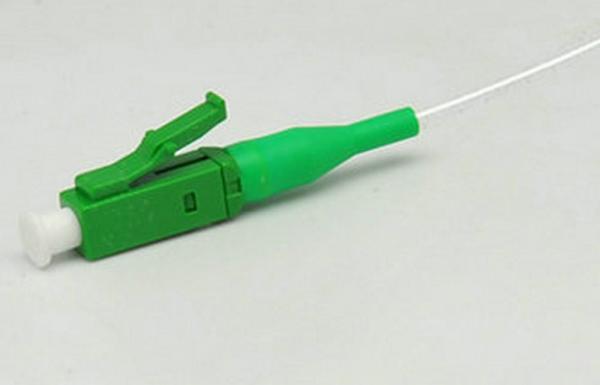

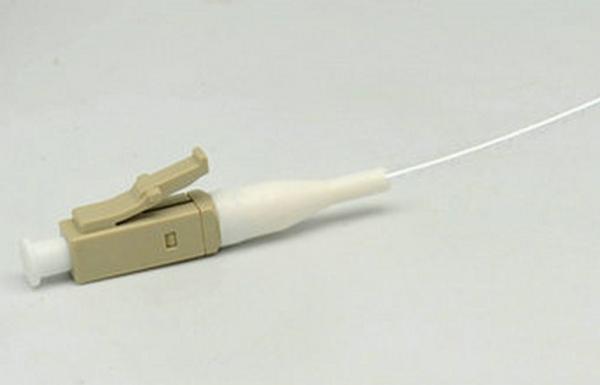

ZGT low IL high RL 0.9mm LC Fiber Optic Cable Optical Pigtail small signal loss

You are here: Home > Products > Patch Cords and Pigtails

Serial Number:ZZTPC-LC-0.9

Specifications:

 SM MM
9/125 50/125 62.5/125 OM3 OM4
UPC APC PC
Insertion loss ≤0.2dB ≤0.3dB
Return loss ≥50dB ≥60dB ≥35dB
Durability 1000 times, ≤0.2dB 1000 times, ≤0.3dB
Working Tem. -40 to +80℃
Storage Tem. -40 to +80℃
Endface Geometry
Parameter 2.5μmm Ferrule 1.25μmm Ferrule
UPC APC UPC APC
Radius of Curvature 10～25mm 5～12mm 7～25mm 5～12mm
Apex Offset 0～50μm 0～50μm 0～50μm 0～50μm
Fiber Height -100～50nm -100～100nm -100～50nm -100～100nm
Angle 7.7-8.3degree 7.7-8.3degree
3D Geometry Low IL High RL Fiber Pigtails Patch Cords With Small Signal Loss Low IL High RL Fiber Pigtails Patch Cords With Small Signal Loss Low IL High RL Fiber Pigtails Patch Cords With Small Signal Loss Low IL High RL Fiber Pigtails Patch Cords With Small Signal Loss

Description:
ZGT provides a full range of pigtails, such as SC, SC/APC, LC, LC/APC, FC, FC/APC, ST, MT-RJ, MU, E2000, E2000/APC, MPO, DIN etc for both Single mode and Multimode. The monthly production capacity is 900k, all products are designed and controlled under IEC standard, meet the requirement of Telcordia GR-326 and TIA/EIA as well.

Material:

Ferrule: Zirconia

Fibers: Corning, Draka, YOFC

Jacket: PVC, LSZH, OFNR, OFNP

Cable: Tight buffer, easy stripping tight buffer

Low IL High RL Fiber Pigtails Patch Cords With Small Signal Loss

Zirconia Ferrule get the best Insertion Loss and Return Loss
Low IL High RL Fiber Pigtails Patch Cords With Small Signal Loss
0.9mm fiber cable can be used for high density stitching applications
Low IL High RL Fiber Pigtails Patch Cords With Small Signal Loss
Tight buffer protect fiber core from damage and facilitate welding.

Applications:

Telecommunication network

Data Center

CATV system

Local Area Network

Active/Passive device

FTTH and FTTX project

Competitive Advantage:

1.Comply with Telcordia GR-326, IEC, TIA/EIA,UL Standards,Materials are all new and RoHS Compliant.Ideal for all fiber networks including telecom network,data center, CATV, FTTX project.
2.Every pigtail is optically tested for Insertion Loss and End-face Geometric to ensure a high quality end product.
3.Good optical performance-Low Insertion Loss ≤0.2dB and high Return Loss ≥50dB,ensure low signal loss and high reliability.
4.Compatible with all standard fibre optic equipment and connectors.
5.Connector type, fiber type and grade,jacket material, color and printings,lengths etc.can be customized.
6. Since 2000,ZGT has been specializing in optic fiber passive components,with about 20 years of accumulation, our product technology and production process has been in the forefront of the industry.
Low IL High RL Fiber Pigtails Patch Cords With Small Signal Loss
