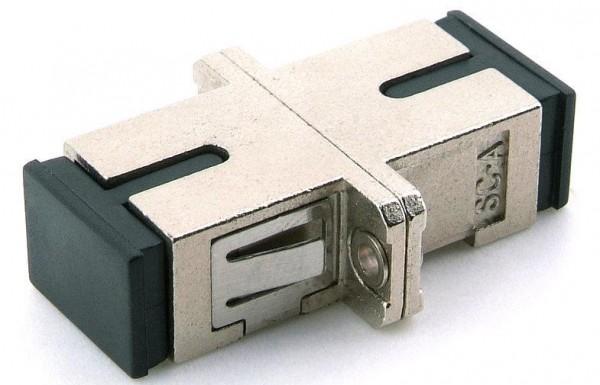

Multimode Sc Fiber Adapter , Sc Simplex Adapter With Metal Housing
Multimode Sc Fiber Adapter , Sc Simplex Adapter With Metal Housing
Specifications
Brand Name :
ZGT
Model Number :
ZZTAD-SC1-M
Certification :
ISO9001,RoHS
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
900K PER MONTH
Delivery Time :
3-5days
Packaging Details :
Plastic bag
Product name :
fiber optic adapter
Color :
Blue /Beige /Green
Type :
Single mode/ Multi-mode
Insertion loss :
IL<0.2db
Application :
FTTH FTTB FTTX Network
Material :
Copper,zinc alloy,metal
Return loss :
50db
Operating temperature :
-40 to +85 degree
Durability :
>1000time
Wavelength :
1200~1600nm
Storage temperature :
-45-80
Sleeve material :
Ceramic
Housing material :
metal or plastic housing
Operating temp :
-40 to +85 degree
Description

Fiber optic SC/PC mutimode adapter SX simplex with metal housing,balc ust cap .

SC AdapterYou are here: Home > Products > Fiber Optic Adapter

SC adapter SX with metal housing

Serial Number: ZZTAD-SC1-M

Competitive Advantage:

Telcordia GR-326, IEC, TIA/EIA Standard compliant.

100% Optical performance inspection.

Low Insertion Loss.

RoHS Compliance.

Customized design and production.

Parts &Material

Parts

Material

Remarks

Sleeve

Zirconia, PB

Housing

Zinc alloy/Copper

Dust cap

ABS

Flammability UL94 V-0

Clip

Stailess steel

Optical Performance

Premium Grade

Standard Grade

Insertion Loss

≤0.1dB

≤0.2dB

Durability

1000 times

1000 times

Enviroment and Mechanical

Properties

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

1000 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-6

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-12

≤0.2dB

Temperature Cycling

40C to +75C, 40 cycles

IEC61300-2-22

≤0.2dB
