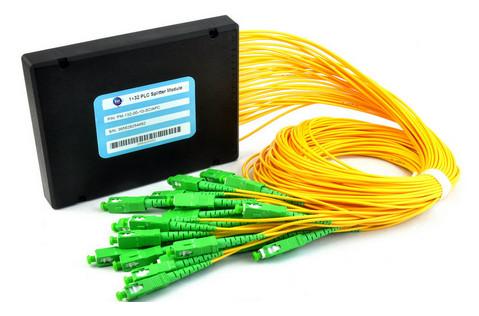

Single Mode / Multimode Fiber Optic Plc Splitter 1*32 Moudle Customized Length
Single Mode / Multimode Fiber Optic Plc Splitter 1*32 Moudle Customized Length
Specifications
Brand Name :
ZGT
Model Number :
ZGT-SP-004
Certification :
ROHS,REACH ,IEC,GR326
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
900K PER MONTH
Packaging Details :
Plastic bag
Product name :
sc upc apc gpon fiber optic plc splitter with manufacture price,Fiber Optic PLC Splitter,1x16 lgx cassette type fiber optic splitter,Mini type 1x16 fiber optical PLC Splitter with high quality chip
Type :
Single Mode,1*2/1*4/1*8/1*16/1*32/1*64,1x32,Mini 2x8 plc optical splitter
Application :
FTTH FTTB FTTX PON CATV,FTTX Systems/PON Networks/CATV Links/Optical Signal Distribution,Networking
Fiber type :
G.657A with 0.9mm lose tube,Single Mode,G657,0.9mm or 250um bare,0.9mm/2.0mm
Operating temperature :
-40~+85℃,-40℃ to 85℃
Connector type :
SC/APC,LC,FC,SC,MU and FC/APC
Material :
PVC;ABS,PVC option,fiber,connector,LSZH
Directivity :
≥ 55 db
Return loss :
55/50(DB)
Connector :
SC/UPC,no connector,SC/LC/FC/ST
Wavelength :
1260-1650nm,1310nm/1550nm
Insertion loss :
7.0dB,≤17.4dB
Warranty :
3 years
Fiber length :
≥1.0m,≥2m,1m,Customized
Size :
320 x 210 x85mm,130*100*25mm
Dimension :
12*8*1.8cm
Wide operating temperature :
-40°C - 85°C
Operator temperature :
-40~+85℃
Item :
high quality plc splitters fiber spliter
Description

Fiber optic ABS BOX PLC splitter 1*32 moudle Single mode ,multimode,customized length

Serial Number: 1*32 moudle

Competitive Advantage:

Good uniformity and low insertion loss

Low Polarization Dependent Loss

Excellent Environmental Stability

Excellent Mechanical

High Stability

Applications:

Fiber to The Point (FTTX)
Fiber to The Home (FTTH)
Passive optical networks(PON)
Local Area Networks (LAN)
Cable Television (CATV)
Test Equipment

Specifications:

Type

1×2

1×4

1×8

1×16

1×32

1×64

2×2

2×4

2×8

2×16

2×32

2×64

Fiber Type

9/125 um or customer appointed

Operating Wavelength(nm)

1260~1650

Insertion Loss(dB)

Typical

3.6

6.8

10.0

13.0

16.0

19.5

4.0

7.0

10.5

13.5

16.5

20.5

(P/S)Max

3.8/
4.0

7.1/
7.3

10.2/
10.5

13.5/
13.7

16.5/
16.8

20.5/
21.0

4.1/
4.3

7.4/
7.6

10.8/
11.0

14.3/
14.5

17.3/
17.5

20.7/
21.5

Loss Uniformity(dB)-Max

0.6

0.6

0.8
