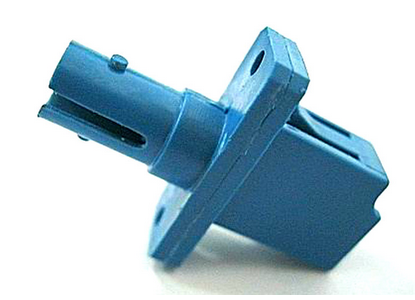

Fiber Optic adapter ST to LC hybrid adapter with plastic housing low inerstion loss
Fiber Optic adapter ST to LC hybrid adapter with plastic housing low inerstion loss
Specifications
Brand Name :
ZGT
Model Number :
ZZTAD-STLC2-S-1
Certification :
ISO9001,RoHS
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
900K PER MONTH
Delivery Time :
3-5days
Packaging Details :
Plastic bag
Product name :
fiber optic adapter
Color :
Blue /Beige /Green
Type :
Single mode/ Multi-mode
Insertion loss :
IL<0.2db
Application :
FTTH FTTB FTTX Network
Material :
ABS PC
Return loss :
>55dB
Operating temperature :
-40 to +85 degree
Durability :
>1000time
Wavelength :
1310nm/1550nm/850nm/1300nm
Storage temperature :
-40℃~+75℃
Sleeve material :
Ceramic
Operating temp :
-40 to +85 degree
Warranty :
5 years
Description

Hybrid adaptorYou are here: Home > Products > Fiber Optic Adapter

ST to LC hybrid adapter with plastic housing

Fiber Optic adapter ST to LC hybrid adapter with plastic housing low inerstion loss

Serial Number: ZZTAD-STLC2-S-1

Competitive Advantage:

Telcordia GR-326, IEC, TIA/EIA Standard compliant.

100% Optical performance inspection.

Low Insertion Loss.

RoHS Compliance.

Customized design and production.

Parts &Material

Parts

Material

Remarks

Sleeve

Ceramic/ Nickel

Housing

PBT

Dust cap

PE

Flammability UL94 V-0

Optical Performance

Premium Grade

Standard Grade

Insertion Loss

≤0.1dB

≤0.2dB

Durability

1000 times

1000 times

Enviroment and Mechanical

Properties

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

1000 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-6

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-12

≤0.2dB

Temperature Cycling

40C to +75C, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40C 95%
