Specifications
Brand Name :
ZGT
Model Number :
ZZTAD-60-S-1
Certification :
ISO9001,RoHS,ROSH N Type Attenuator,Telecom
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
D/A, L/C, D/A, D/P, T/T, Western Union
Supply Ability :
900K PER MONTH
Delivery Time :
3-5days
Packaging Details :
Plastic bag
Product name :
fiber optic adapter
Color :
blue,green
Type :
Singlemode
Insertion loss :
IL<0.2db
Application :
FTTH FTTB FTTX Network,Network,Telecommunication/Fiber Optic CATV/Multimedia
Material :
PBT
Connector type :
SC
Return loss :
>55dB
Operating temperature :
-40 to +85 degree
Durability :
1000 time matings,>1000time
Wavelength :
1310nm/1550nm/850nm/1300nm
Storage temperature :
Storage Temperature
Sleeve material :
Ceramic
Housing material :
Plastic
Operating temp :
-40 to +85 degree
Warranty :
8 years
Description

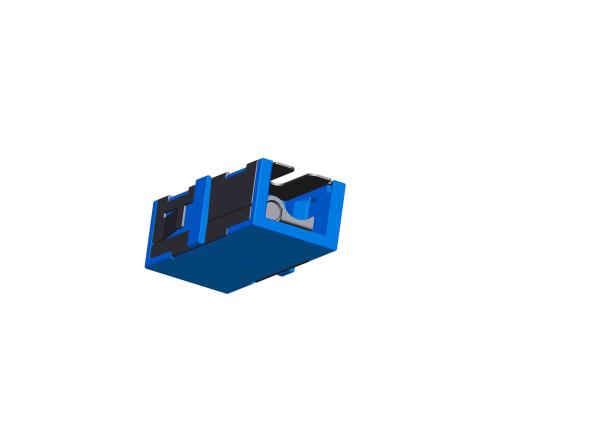

Single Mode Fiber SC Adapter , Fiber Adapters with internal shutter in standard IEC size ceramic sleeve

SC Shutter adapterYou are here: Home > Products > Fiber Optic Shutter adapter

SC SX with internal shutter, reduced flanged

Serial Number: ZZTAD-60-S-1

Competitive Advantage:

Telcordia GR-326, IEC, TIA/EIA Standard compliant.

100% Optical performance inspection.

Low Insertion Loss.

RoHS Compliance.

Customized design and production.

Parts &Material

Parts

Material

Remarks

Sleeve

Zirconia, PB

Housing

PBT

Flammability UL94 V-0

Dust cap

ABS

Flammability UL94 V-0

Shutter

ABS

Flammability UL94 V-0

Meter cover

Stainless steel

Optical Performance

Premium Grade

Standard Grade

Insertion Loss

≤0.1dB

≤0.2dB

Durability

1000 times

1000 times

Enviroment and Mechanical

Properties

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

1000 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-6

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-12

≤0.2dB

Temperature Cycling

40C to +75C, 40 cycle

Ceramic Sleeve Fiber Optic Adapter With Shutter Standard IEC Size Low Insertion LossCeramic Sleeve Fiber Optic Adapter With Shutter Standard IEC Size Low Insertion Loss
