XLZHT-1 Enameled Round Wires Springiness Tester
XLZHT-1 Enameled Round Wires Springiness Tester
Specifications
Brand Name :
Wirecan
Model Number :
XLZHT-1
Certification :
ISO9001
Place of Origin :
china
MOQ :
1set
Price :
By negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Up to different machine
Delivery Time :
Min.30working days
Packaging Details :
Plastic film+wooden box
Application :
Enameled wire
Speed of winding rebound :
7±0.5r/min
 Voltage :
AC220V±10% 50Hz
 Power :
< 120W
SIZE :
L*W*H（about 520*355*355MM）
Weight :
about 25KG
Description

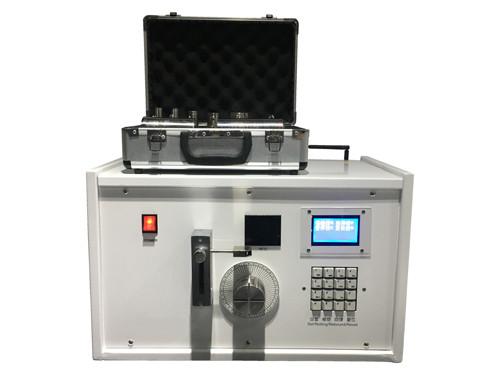

XLZHT-1 Enameled Round Wires Springiness Tester

I-suntop wire and cable Testing machine20220301.pd...

1. Description of XLZHT-1 Enameled Round Wires Springiness Tester

  • Implementation standard: GB/ T40743-2008,IEC60851-3;

  • Inspection standard :JB/T4279.4-2008

  • Used to test the resilience of enameled round wires with nominal diameter of conductor above 0.080mm and below 1.600mm

  • 32-bit ARM control system

  • Winding 5 turns automatically stop

  • All specifications of the sample do not need to adjust the sensor

  • High agility and sensitivity, good repeatability, easy to operate

  • The deviation between the displayed value and the value indicated by the dial shall not exceed ±1°

  • The coil is released slowly during spring back, without sudden spring back or sudden jump phenomenon

  • Chinese LCD screen, prompt test steps, display test results

  • All test data and sample identity data can be automatically transmitted to the touch screen, and automatically saved and analyzed by MPS6 enameled wire quality data management system

2. T echnical of XLZHT-1 Enameled Round Wires Springiness Tester

Speed of winding rebound

7±0.5r/min

Voltage

AC220V±10%50HZ

power

< 120W

size

L*W*H(about 520*355*355MM)

weight

about 25KG

XLZHT-1 Enameled Round Wires Springiness Tester
