Single Head 21kw Steel Wire EVA Coating Machine Fiber Optic Cable Production Line
Single Head 21kw Steel Wire EVA Coating Machine Fiber Optic Cable Production Line
Single Head 21kw Steel Wire EVA Coating Machine Fiber Optic Cable Production Line
Single Head 21kw Steel Wire EVA Coating Machine Fiber Optic Cable Production Line
Single Head 21kw Steel Wire EVA Coating Machine Fiber Optic Cable Production Line
Single Head 21kw Steel Wire EVA Coating Machine Fiber Optic Cable Production Line
Single Head 21kw Steel Wire EVA Coating Machine Fiber Optic Cable Production Line
Single Head 21kw Steel Wire EVA Coating Machine Fiber Optic Cable Production Line
Specifications
Brand Name :
I-suntop
Model Number :
I-30
Certification :
SGS
Place of Origin :
China
MOQ :
1set
Price :
By negotiation
Payment Terms :
L/C,T/T
Supply Ability :
Up to different machine
Delivery Time :
Min.30working days
Packaging Details :
Plastic film+wooden box
Application :
for Steel wire coating
Plastic Processed :
EVA
Production Speed :
Max.200m/min
OD :
0.4~1.2mm
Service :
Professional field installation, training and on line support
Voltage :
21kw,3-phase 5wire 380V 50HZ
Servo motor :
Danfoss
Control System :
IPC+PLC
Description

Fiber Optic Cable Production Line For Steel Wire EVA Coating

i-suntop fiber optic cable machine 20220228.pdf

1. Application for Fiber Optic Cable Production Line For Steel Wire EVA Coating :

This line is designed for steel wire plastic (EVA) coating. which is mainly used in FTTH drop cable production.

2. Advantage for Fiber Optic Cable Production Line For Steel Wire EVA Coating:

A. High configuration,the machine use IPC+PLC control system

B. main electric parts are importing,screw adopt the modern latest technology

C. Gear tooth surface abrasion resistance.Low energy consumption of the equipment,a large quantity of extrusion, high production efficiency, high gloss surface,small temperature difference,low noise, good stability, strong continuity of working, convenient operation, long service life.

3. Technical parameters of Fiber Optic Cable Production Line For Steel Wire EVA Coating:

Number of steel wire Pay-off

single head

Structure speed

250m/min

Working speed

Max.200m/min

Steel wire diameter

0.4~1.2mm

Extruded material

Steel Wire

Metering accuracy

≤0.2%

Installed power

About 21KW

4. Line Configuration for Fiber Optic Cable Production Line For Steel Wire EVA Coating:

NO All parts’ name and specification of QTY
1 single head Steel wire pay-off 1set
2 600 Pneumatic tension unit 1set
3 High frequency heater

1set
4 30 Extruder +25KG dryer and hopper 1set
5 IPC+PLC control cabinet

1set
6 2.5M primary and secondary movable heating water trough 1set
7 laser diameter gauge 1set
8 8M single-layer U-type fixed type cooling water trough+chiller 1set
9 single-wheel capstan 1set
10 take up tension dancer 1set

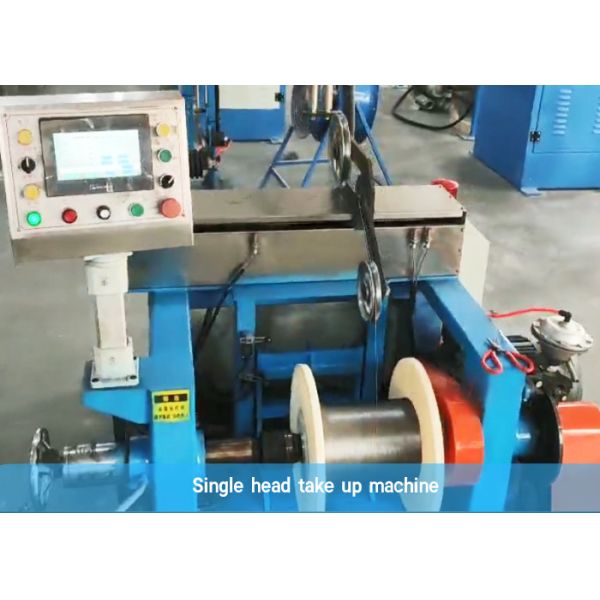

11 semi-auto single-shaft take-up machine 1set
12 Stand-by parts 1set
13 Providing tools 1set
14 Providing data 1set

Single Head 21kw Steel Wire EVA Coating Machine Fiber Optic Cable Production Line
