120mpm Breakout Fiber Optic Cable Production Line Cage Stranding Type
120mpm Breakout Fiber Optic Cable Production Line Cage Stranding Type
120mpm Breakout Fiber Optic Cable Production Line Cage Stranding Type
120mpm Breakout Fiber Optic Cable Production Line Cage Stranding Type
120mpm Breakout Fiber Optic Cable Production Line Cage Stranding Type
120mpm Breakout Fiber Optic Cable Production Line Cage Stranding Type
120mpm Breakout Fiber Optic Cable Production Line Cage Stranding Type
120mpm Breakout Fiber Optic Cable Production Line Cage Stranding Type
Specifications
Brand Name :
I-suntop
Model Number :
I-70
Certification :
SGS
Place of Origin :
China
MOQ :
1set
Price :
By negotiation
Payment Terms :
L/C,T/T
Supply Ability :
Up to different machine
Delivery Time :
Min.50working days
Packaging Details :
Plastic film+wooden box
Application :
manufacturing Distribution/Breakout Fiber Optic Cable
Finished Outer diamter :
Max.11.5mm
Design Speed :
Max.120m/min
No of pay off :
4/6/12/24
excess loss after extrusion :
1550nm<=0.02dB/km(single mold optical fiber)
Warranty :
18month
Voltage :
3-phase 5wire 380V 50-60HZ
Servo Motor :
Danfoss
Description

Cage stranding Type Distribution/Breakout Fiber Optic Cable Production Line

i-suntop fiber optic cable machine 20220228.pdf

1. Description for Cage stranding Type Distribution/Breakout Fiber Optic Cable Production Line:

The line is used for stranding single single-core cables or tight buffered fibers with Less than 12 together and then extruding the sheath after the aramid yarn having coated. It can also be used for extruding outer sheath of distribution/breakout fiber optic cable.The material its PVC, LSZH, PE jacket, outer diameter is 11.5mm max..

120mpm Breakout Fiber Optic Cable Production Line Cage Stranding Type120mpm Breakout Fiber Optic Cable Production Line Cage Stranding Type

2. Technical parameters of Cage stranding Type Distribution/Breakout Fiber Optic Cable Production Line :

Machine type 70×25 Extruder
Suitable extrusion material LSZH,PVC,PE
Design speed Max.120m/min
No of cage stranding machine 12/24 reels
Specification of cage stranding machine pay-off reels 400mm
Core wire diameter 0.6/0.9/2.0
Pay-off tension of tight buffered fiber 1N-3N
Aramid yarn pay off(passive or active optional) 12/16/24
Take-up reels Specification PN800 reel and PN1250 reel
excess loss after extrusion 1550nm<=0.2dB/km(single mold optical fiber)
Center height of machine 1000mm from background

3. Line Configuration for Cage stranding Type Distribution/Breakout Fiber Optic Cable Production Line:

Items Qty.
Φ800-1250 central strength-member pay-off 1set

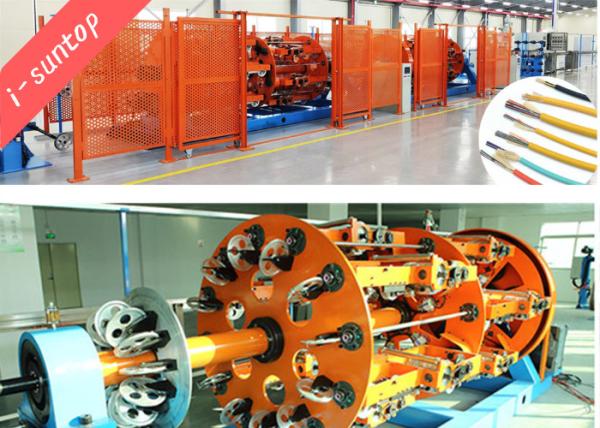

12heads cage stranding machine 2sets

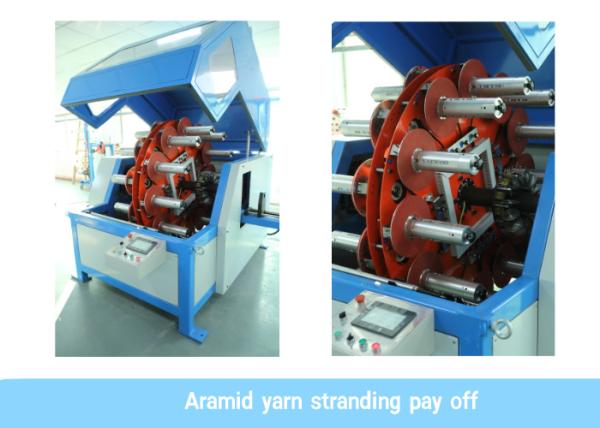

24 heads aramid yarn pay-off (motorized aramid yarn pay-off option available)

 1set
Mobile mold supporting 1set
70 Main extruder 1set
75kg Dryer +hopper 1set
IPC+PLC control penal 1set
4m moving water trough and warm water tank 1set
12m fixed type cooling water trough and cooling water tank+chiller 1set
laser diameter gauge 1set
Accumulator 1set
dual-wheel capstan 1set

φ800 dual-wheel tension unit

 1set

800-1250mm shaftless longmen type take-up

 1set

120mpm Breakout Fiber Optic Cable Production Line Cage Stranding Type
