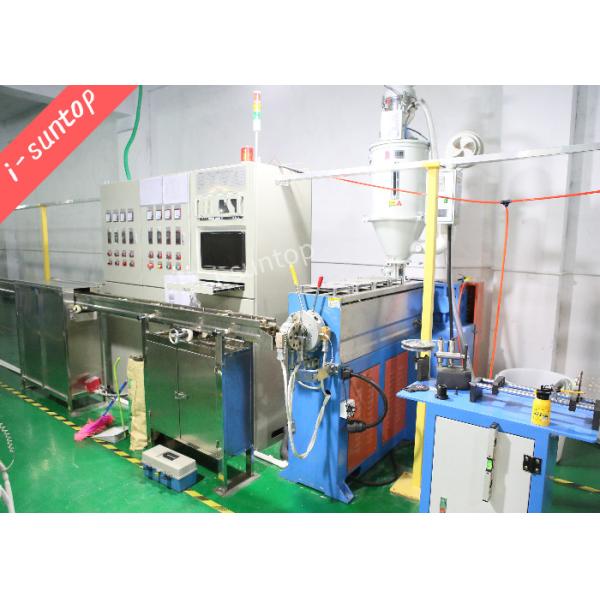

300mpm Cable Extrusion Machine , Polypropylene Filler Rope Wire Extruder Machine
300mpm Cable Extrusion Machine , Polypropylene Filler Rope Wire Extruder Machine
300mpm Cable Extrusion Machine , Polypropylene Filler Rope Wire Extruder Machine
300mpm Cable Extrusion Machine , Polypropylene Filler Rope Wire Extruder Machine
300mpm Cable Extrusion Machine , Polypropylene Filler Rope Wire Extruder Machine
300mpm Cable Extrusion Machine , Polypropylene Filler Rope Wire Extruder Machine
300mpm Cable Extrusion Machine , Polypropylene Filler Rope Wire Extruder Machine
300mpm Cable Extrusion Machine , Polypropylene Filler Rope Wire Extruder Machine
Specifications
Brand Name :
I-suntop
Model Number :
I-65
Certification :
SGS
Place of Origin :
China
MOQ :
1set
Price :
By negotiation
Payment Terms :
L/C,T/T
Supply Ability :
Up to different machine
Delivery Time :
Min.50working days
Packaging Details :
Plastic film+wooden box
Application :
Extrusion for ripcord
Extrusion Material :
Polypropylene
Design Speed :
Max.300m/min
Extrusion daimeter :
Ф1.5-Ф4mm
Voltage :
3-phase 5wire 380V 50HZ
Screw type :
65mm single type
Description

65mm Fiber Optic Cable Polypropylene Filler Rope Extruison Production Line

i-suntop fiber optic cable machine 20220228.pdf

1. Application for Polypropylene Filler Rope Extruison Production Line:

The line is used for extrusion of fiber optic cable filling rope.

2. Specification of Polypropylene Filler Rope Extruison Production Line:

structure speed Max.300m/min

Extrusion diameter

Ф1.5-Ф4mm

Main extruder motor

30KW
Extrusion rotation speed

1500r/min
Screw diamter Ф65

Screw L/D

25:1

Electrial control

PLC+IPC

Power supply requirements

50KW, AC380V ±10% 50HZ three-phase five-wire

3.Line Configuration for Polypropylene Filler Rope Extruison Production Line

Items Qty.
Ф65 main extruder 1set
100kg hopper and 300G dryer 1set

Masterbatch mixer

 1set

IPC+PLC program electricity control cabinet

 1set
4 m stainless steel hot water tank + water tank 1set
8 m stainless steel cold water tank and water tank 1set
laser diameter guage 1set
double wheel capstan 1set
60m accumulator 1set
single head take up and traverse machine 1set

300mpm Cable Extrusion Machine , Polypropylene Filler Rope Wire Extruder Machine
