Specifications
Brand Name :
I-suntop
Certification :
SGS
Place of Origin :
China
MOQ :
1set
Price :
By negotiation
Payment Terms :
L/C,T/T
Supply Ability :
Up to different machine
Delivery Time :
Min.50working days
Packaging Details :
Plastic film+wooden box
Usage :
For Metal (Steel Aluminum Tape) accumulator
accumulator width :
10-300mm
Service :
12month warranty
Voltage :
3-phase 5wire 380V 50HZ
Tape-accumulating thickness :
0.2-0.3mm
Tape-accumulating speed :
Max.80m/min
Description

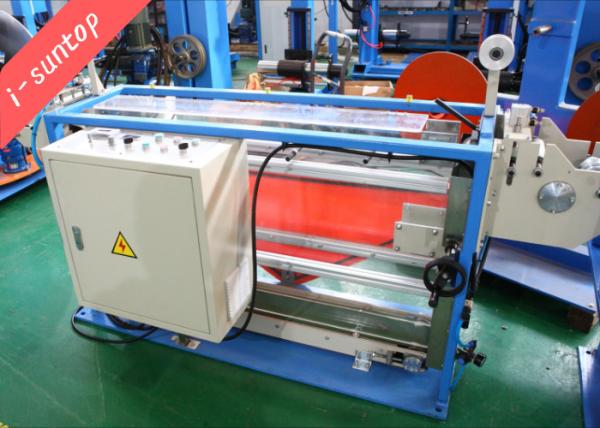

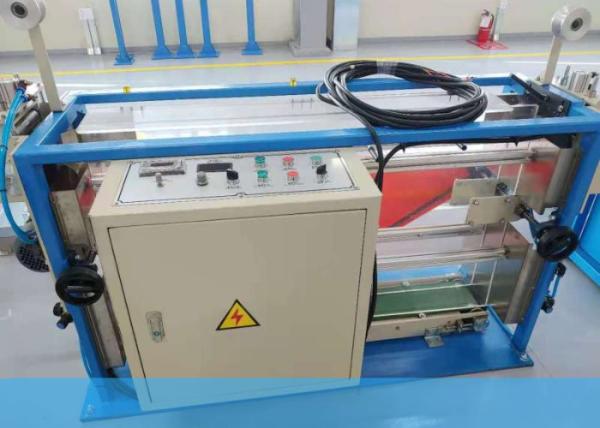

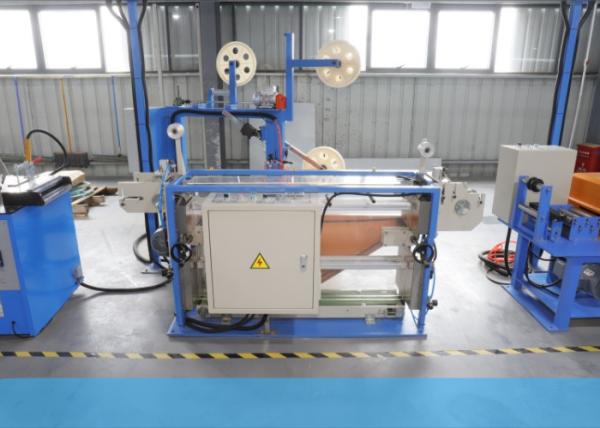

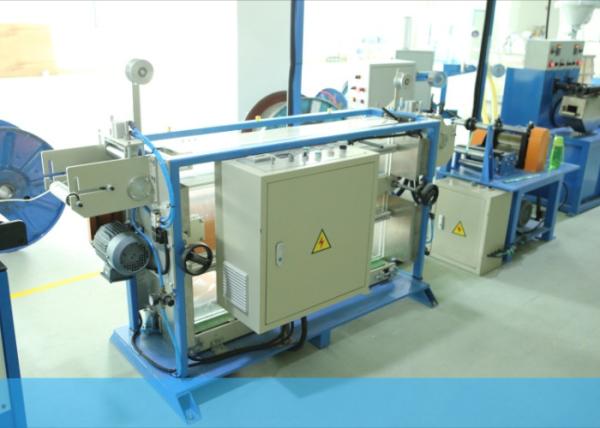

Width 10～300mm Metal Tape (Steel-Aluminum Tape) Accumulator Device

i-suntop fiber optic cable machine 20220228.pdf

1. Application for Width 10～300mm Metal Tape (Steel-Aluminum Tape) Accumulator Device:

  • The width of both sides of the plate can be adjusted for 15 ~ 150mm, and parallel, in and out of the two sides of the belt with stainless steel side;

  • Structural forms: horizontal structure, sets into the belt, the belt guiding device, when the store with one cylinder pressure set by the guide roll and rubber guide roll (compaction force gauge visual display, adjustable), make the steel belt in the pressure under the action of friction, smooth fast reservoir belt, tape storage box by two pieces of 15 mm thick organic glass for positioning and clamping.A set of cylinder pressing mechanism controlled by the throttle valve acts between the steel and aluminum belts to ensure that the cylinder moves slowly until the guide roller is pressed. The driving force of the storage belt adopts frequency conversion motor and frequency conversion control, which can adjust the speed of the storage belt and display the storage time and frequency.Install anti-stacking device at the outlet of the belt storage device.

2. Main paramters for Width 10～300mm Metal Tape (Steel-Aluminum Tape) Accumulator Device:

Tape-accumulating width

10～300mm(manual operation)

Tape-accumulating thickness

0.2～0.3m

Tape-accumulating speed

Max.80m/min

material

stainless steel

Tape-accumulating length

Max.100m

Drive

0.75KW

Operate convenience,air pressure range

0.1-0.6MPA

Tension

2.0～10N±1N can adjust
