24 Head 20N 120rpm Aramid Yarn Stranding Machine Fiber Optic Cable Machine
24 Head 20N 120rpm Aramid Yarn Stranding Machine Fiber Optic Cable Machine
24 Head 20N 120rpm Aramid Yarn Stranding Machine Fiber Optic Cable Machine
24 Head 20N 120rpm Aramid Yarn Stranding Machine Fiber Optic Cable Machine
24 Head 20N 120rpm Aramid Yarn Stranding Machine Fiber Optic Cable Machine
24 Head 20N 120rpm Aramid Yarn Stranding Machine Fiber Optic Cable Machine
24 Head 20N 120rpm Aramid Yarn Stranding Machine Fiber Optic Cable Machine
24 Head 20N 120rpm Aramid Yarn Stranding Machine Fiber Optic Cable Machine
Specifications
Brand Name :
I-suntop
Model Number :
I-24
Certification :
SGS
Place of Origin :
China
MOQ :
1set
Price :
By negotiation
Payment Terms :
L/C,T/T
Supply Ability :
Up to different machine
Delivery Time :
Min.50working days
Packaging Details :
Plastic film+wooden box
Application :
for aramid yarn twist
Design Rotation Speed :
Max.120RPM
No of pay off :
24
After service :
12month warranty
Power :
7.5KW,3-phase 5wire 380V 50-60HZ
Servo Motor :
Danfoss
Description

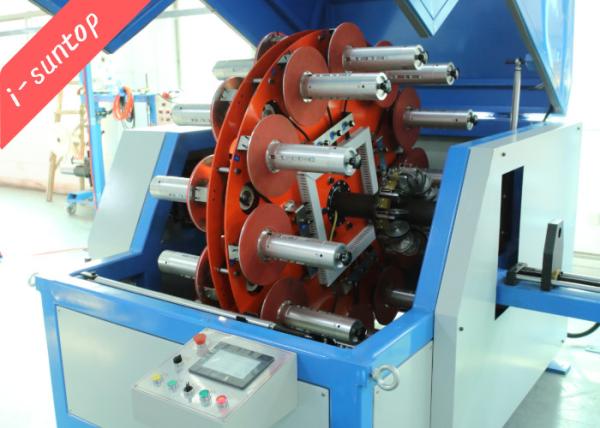

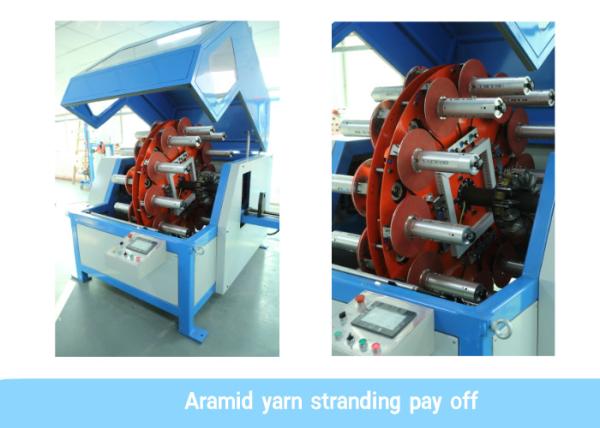

24 Head Aramid Yarn Stranding Machine For ADSS Fiber Optic Cable

i-suntop fiber optic cable machine 20220228.pdf

1. Description for 24 Head Aramid Yarn Stranding Machine For ADSS Fiber Optic Cable:

The device is mainly applied for the harboring of non-mental optic-fiber cable, aramid yarn possesses good flexibility and high strength to produce optic-fiber cable with excellent bending. The equipment can be used with the outer sheathing production line.

2. Technical parameters of 24 Head Aramid Yarn Stranding Machine For ADSS Fiber Optic Cable:

Heads no. of aramid yarn

24heads

Max revolution speed of stranding head

120rpm

Stranding pitch

200-1000mm(steeples adjustable)

Aramid yarn tension

5N-20N

Motor power

7.5w

Aramid yarn reel specification

Φ290×Φ94×Φ290

Operation way

s/z

Cable diameter max.

Φ35mm

Machine size(24 heads)

L2.2m*W1.8m*H2.5m(for reference)

Machine weight(24 heads)

850kg(for reference)

Stranding material

Industry Aramid filament yarn

24 Head 20N 120rpm Aramid Yarn Stranding Machine Fiber Optic Cable Machine
