Specifications
Brand Name :
I-suntop
Model Number :
I-50
Certification :
SGS
Place of Origin :
China
MOQ :
1set
Price :
By negotiation
Payment Terms :
L/C,T/T
Supply Ability :
Up to different machine
Delivery Time :
Min.50working days
Packaging Details :
Plastic film+wooden box
Material :
PBT
Actual Speed :
Max.500m/min
No of fiber :
12
excess loss after extrusion :
1550nm<=0.2dB/km(single mold optical fiber)
Usage :
manufacturing of PBT loose tube
Warranty :
12month
Voltage :
3-phase 5wire 380V 50HZ
PLC :
SIEMENS
Description

PBT Loose Tube Fiber Optic Cable Production Line With High Speed 500m/Min

i-suntop fiber optic cable machine 20220228.pdf

1.Description for PBT Loose Tube Fiber Optic Cable Production Line:

This fiber secondary coating line is used for extruding 1~12/24 core optical fiber loose tube, the jacketing material is PBT, loose tube is round and smooth surface, its dimeter is uniform.

2.Features for PBT Loose Tube Fiber Optic Cable Production Line:

A. The optical fiber pay-off is the motorzed pay-off device, the tension of the pay-off line is stable and reliable, and the tension is adjustable.

B. The extruder adopts special screw, which has good extrusion linearity and high extrusion efficiency.

C Jelly filling device has professional de-bubble effect, euipped with precision metering pump and a precision weighing device to ensure timely replenishment of ointment.

D·Take-up is double reels automatic changed without deceleration, and high production efficiency.

E. International industrial computer technology control system with high degree of automation, it can be linked with MES, ERP systems, real time tracking and managing production..

F .The main control systems and components are international famous brands, and the production line has high stability and reliability.

3.Technical parameters of PBT Loose Tube Fiber Optic Cable Production Line:

Extruder type 50×25 Extruder
extrusion material PBT
structure speed Max.800m/min

production speed

 Max.500m/min

(1.8mm PBT loose tube)
No of optical fiber pay-off reels 12
Specification of optical fiber pay-off reels 25km and 50km standard optical fiber reels
Pay-off tension of optical fiber 0.4N-1.5N
Take-up reels Specification PN630reel and PN800 reel
excess loss after extrusion

≤ 0.02db / km (sm fiber@ 1310nm, 1550nm)
Center height of machine 1000mm from background

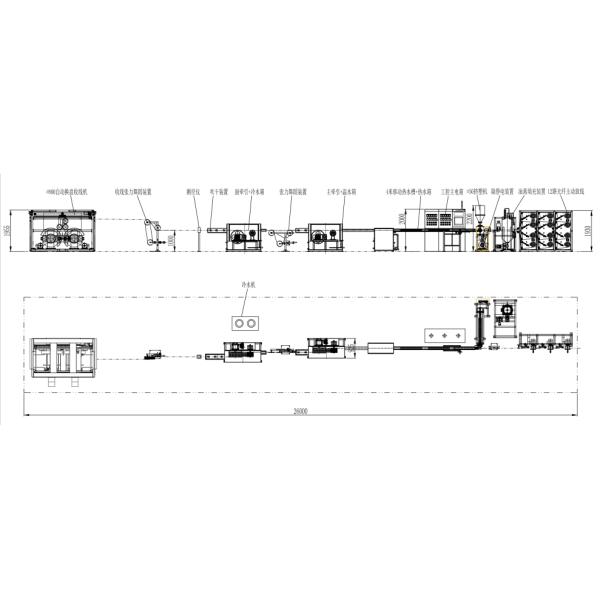

4.Line Configuration for PBT Loose Tube Fiber Optic Cable Production Line:

Items Qty.

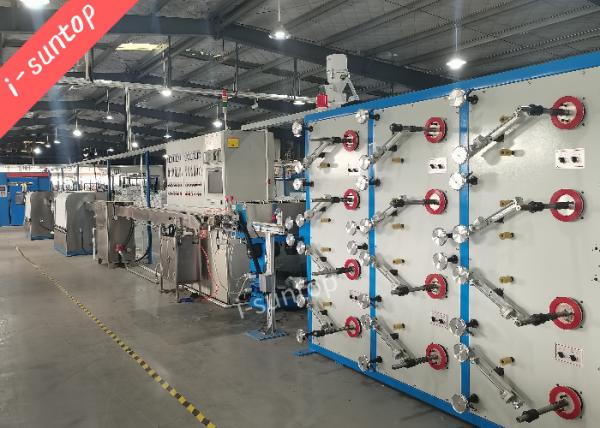

12heads fiber pay off 1set
Electrostatic device removed 1set

Jelly filling device

 1set
50 extruder 1set
Dryer +hopper 50kg 1set
IPC+PLC program control systerm 1set

4 m mobile hot water tank + hot water tank

 2sets

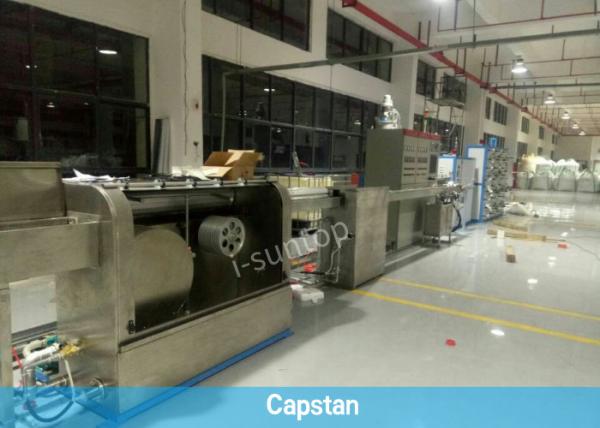

Ф630mm single wheel capstan+Warm water spraying device

 1set

Ф630mm single wheel capstan+cold water spraying device

 1set
laser diameter gauge 1set

Take up Tension dancer

 1set

dual-shaft take-up 630-800mm

 1set
