Indoor And Outdoor 50KW FTTH Flat Fiber Optic Cable Machine
Indoor And Outdoor 50KW FTTH Flat Fiber Optic Cable Machine
Indoor And Outdoor 50KW FTTH Flat Fiber Optic Cable Machine
Indoor And Outdoor 50KW FTTH Flat Fiber Optic Cable Machine
Indoor And Outdoor 50KW FTTH Flat Fiber Optic Cable Machine
Indoor And Outdoor 50KW FTTH Flat Fiber Optic Cable Machine
Indoor And Outdoor 50KW FTTH Flat Fiber Optic Cable Machine
Indoor And Outdoor 50KW FTTH Flat Fiber Optic Cable Machine
Specifications
Brand Name :
I-suntop
Model Number :
I-50
Certification :
SGS
Place of Origin :
China
MOQ :
1set
Price :
By negotiation
Payment Terms :
L/C,T/T
Supply Ability :
Up to different machine
Delivery Time :
Min.30working days
Packaging Details :
Plastic film+wooden box
Application :
manufacturing of indoor and outdoor FTTH drop cable
Extrusion Material :
PVC/LSZH/PE
Desgin Speed :
Max.150m/min
No of fiber pay off :
1/2/4
excess loss after extrusion :
1550nm<=0.02dB/km(single mold optical fiber)
Service :
one year warranty
Voltage :
50KW,3-phase 5wire 380V 50HZ
Plc :
SIEMENS
Description

Indoor And Outdoor FTTH Flat Drop Fiber Optic Cable Extrusion Sheathing Machine

i-suntop fiber optic cable machine 20220228.pdf

1.Application for Indoor And Outdoor FTTH Flat Drop Fiber Optic Cable Extrusion Sheathing Machine:

FTTH Drop Cable Production Line is mainly used to produce 1-4 core flat and round FTTH drop cable, The material can be LSZH, PVC and PE.

Indoor And Outdoor 50KW FTTH Flat Fiber Optic Cable Machine

2.Features for Indoor And Outdoor FTTH Flat Drop Fiber Optic Cable Extrusion Sheathing Machine:

High configuration, the whole machine use IPC+PLC control system, low energy consumption of the equipment, a large quantity of extrusion, high production efficiency, high gloss surface, small temperature difference, low noise, good stability, strong continuity of working, convenient operation, long service life.

3.Technical parameters of Indoor And Outdoor FTTH Flat Drop Fiber Optic Cable Extrusion Sheathing Machine :

No

Item

Paramters
1
Structure Speed
190m/min
2
Production Speed
≥ 120m/min
3
Optical fiber bobbin size
Φ236 x Φ160 x Φ108 or Φ300 x Φ160 xΦ250
4
Optical fiber tension
0.5~3N (adjustable)
5
Take-up tension
5~20N (adjustable)
6
Take-up bobbin size
PN400-PN 630mm
7
Length of line
26m
8
Central height of line
1000mm
9
Power
50KW

4.Main items for Indoor And Outdoor FTTH Flat Drop Fiber Optic Cable Extrusion Sheathing Machine:

Items Qty.
Φ800 Stengthen member steel wire pay-off(for 1.0/1.2mm steel wire) 1set
4 heads fiber +2head FRP/ small Steel wire pay-off 1set
Mobile mold supporting 1set
50 extruder 1set
50kg Dryer +hopper 1set
IPC+PLC program control systerm 1set
2.5mm moving water trough and warm water tank 1set
8mm fixed type cooling water trough and cooling water tank 1set
laser diameter gauge 1set
dual-wheel capstan 1set
cable accumulator 1set

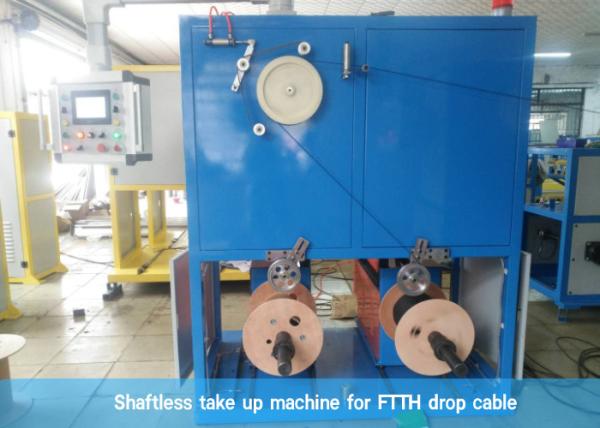

400-630mm shafless type dual-shaft take-up

 1set

Indoor And Outdoor 50KW FTTH Flat Fiber Optic Cable Machine
