70KW Optical Fiber Cable Machine For Dry PBT Loose Tube Production Line
70KW Optical Fiber Cable Machine For Dry PBT Loose Tube Production Line
70KW Optical Fiber Cable Machine For Dry PBT Loose Tube Production Line
70KW Optical Fiber Cable Machine For Dry PBT Loose Tube Production Line
70KW Optical Fiber Cable Machine For Dry PBT Loose Tube Production Line
70KW Optical Fiber Cable Machine For Dry PBT Loose Tube Production Line
70KW Optical Fiber Cable Machine For Dry PBT Loose Tube Production Line
70KW Optical Fiber Cable Machine For Dry PBT Loose Tube Production Line
Specifications
Brand Name :
I-suntop
Model Number :
I-50
Certification :
SGS
Place of Origin :
China
MOQ :
1set
Price :
By negotiation
Payment Terms :
L/C,T/T
Supply Ability :
Up to different machine
Delivery Time :
Min.50working days
Packaging Details :
Plastic film+wooden box
Extrusion Material :
PBT,PP
Design Speed :
Max.800m/min
No of fiber :
12
excess loss :
<=0.02dB/km(single mold optical fiber)
Application :
manufacturing of dry PBT loose tube
Warranty :
18month
Power :
70KW, AC380V ±10% 50HZ three-phase five-wire
Inverter :
Danfoss
Description

Fiber Optic Cable Machine For Dry Loose Tube Production Line

i-suntop fiber optic cable machine 20220228.pdf

1. Description of Fiber Optic Cable Machine For Dry Loose Tube Production Line:

Mainly Application for 2-12 cores fiber optic loose tube without jelly.

2. Technical parameters of Fiber Optic Cable Machine For Dry Loose Tube Production Line:

Model type Φ50
Applicable material Modified PP&PBT
Pay-off bobbin size Φ236*160*108*25.4mm/φ265*160*225*25.4mm
Cores 1-12
Pay-off tension 0.4N-1.5N±0.05N
Loose tube OD Φ1.6-3.0mm
Designed speed Max.800m/min
Processing line speed Max.500m/min
Take-up bobbin PN630-800mm
Collateral loss ≤0.02dB/km
Line length ≤36m*4.5m*3.5m
Power 70KW, AC380V ±10% 50HZ three-phase five-wire

3. Line Configuration of Fiber Optic Cable Machine For Dry Loose Tube Production Line(High speed):

Items Qty.

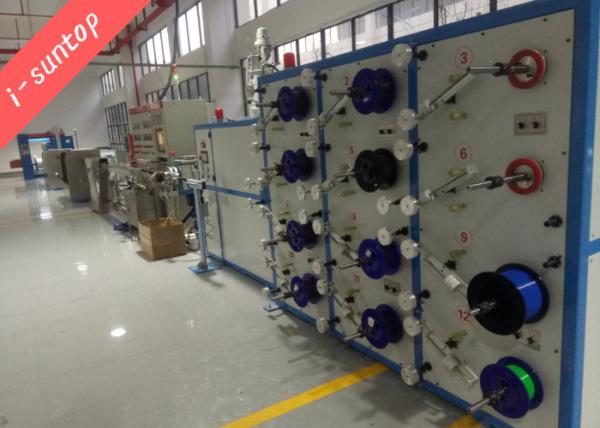

12heads fiber pay off 1set
Electrostatic device removed 1set
Jelly filling device 1set
50 extruder 1set
Dryer +hopper 50kg 1set

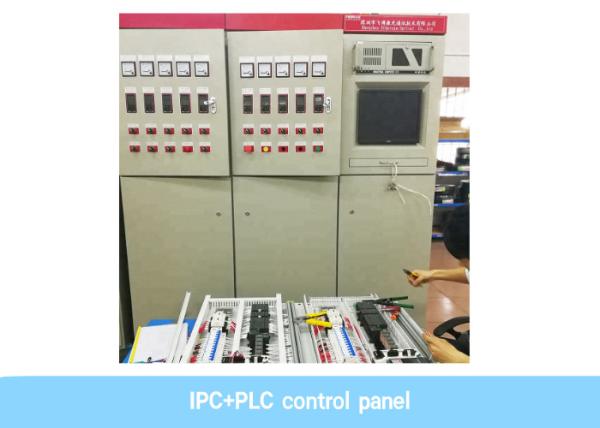

IPC+PLC program control systerm 1set
4 m mobile hot water tank + hot water tank 2sets
Ф630mm single wheel capstan+Warm water spraying device 1set
Ф630mm single wheel capstan+cold water spraying device 1set
laser diameter gauge 1set
Take up Tension dancer 1set
dual-shaft take-up 630-800mm 1set

4. Other related equipments:

A. optical cable production line

B. optical cable testing equipments

C. optical cable auxiliary equipments

E. Electric wire and cable equipments

F. Electric wire and cable testing equipments

G. Electric wire and cable auxiliary equipments

H. Copper wire drawing machine

I. Stranding machine

J. Braiding machine

L. Armored Monocoil Tubing Machine
