60Hz Power Wire Take Up Machine Portal Type Cable Manufacturing Machine
60Hz Power Wire Take Up Machine Portal Type Cable Manufacturing Machine
60Hz Power Wire Take Up Machine Portal Type Cable Manufacturing Machine
60Hz Power Wire Take Up Machine Portal Type Cable Manufacturing Machine
60Hz Power Wire Take Up Machine Portal Type Cable Manufacturing Machine
60Hz Power Wire Take Up Machine Portal Type Cable Manufacturing Machine
60Hz Power Wire Take Up Machine Portal Type Cable Manufacturing Machine
60Hz Power Wire Take Up Machine Portal Type Cable Manufacturing Machine
Specifications
Brand Name :
I-suntop
Model Number :
I-800/1600
Certification :
SGS
Place of Origin :
China
MOQ :
1set
Price :
By negotiation
Payment Terms :
L/C,T/T
Supply Ability :
Up to different machine
Delivery Time :
Min.30working days
Packaging Details :
Plastic film+wooden box
Name :
Portal Type Gantry Traversing Take Up Making Machine
Voltage :
3phase 380V 50HZ/60HZ
Warranty :
18month
Hs code :
84794000
After-sales service provided :
Engineers available to service machinery overseas
Traverse precision (%) :
1-2
Description

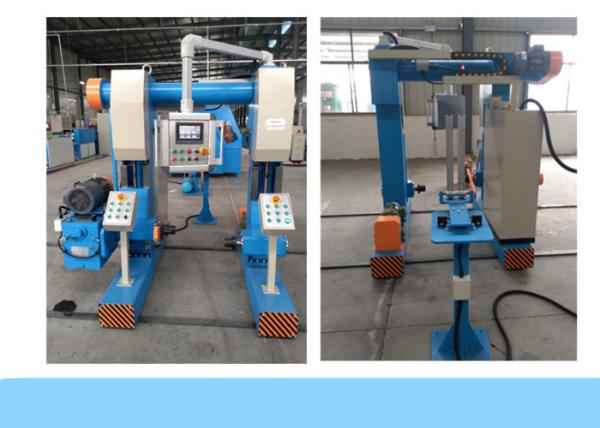

Power Wire Cable Portal Type Gantry Traversing Take Up Making Machine

i-suntop Electric wire and cable equipments2022022...

1. Application for Power Wire Cable Portal Type Gantry Traversing Take Up Making Machine :

This equipment is applicable to Winding and coiling all kinds of cable into a bobbin.

2. Technical parameters for Power Wire Cable Portal Type Gantry Traversing Take Up Making Machine :

Model Φ630/1250 Φ800/1600 Φ1000/2000 Φ1250/2500 Φ1600/3150 Φ1600/3500
Cable Dia. (mm) Max 35 50 70 100 120 130
Bobbin flange dia. (mm) Φ630-1250 Φ800-1600 Φ1000-2000 Φ1250-2500 Φ1600-3150 Φ1600/3500
Bobbin overall width (mm) 475-950 600-1180 750-1500 950-1900 1180-2300 1180-2300
Load capacity ( T) 3 4-8 6-10 12-15 15-20 18-20
Line speed (m/min) Max 100 80 80 65 60 50
Traverse precision (%) 1-2 1-2 1-2 1-2 1-2 1-2

3. Features for Power Wire Cable Portal Type Gantry Traversing Take Up Making Machine:

A. Portal shaped structure, Electrical compacting or relaxing reels and lifting. It has function of lifting together, drop together, lifting separate and drop separate..

B. Portal shaped stand traverses wire locomotive, which is driven by AC motor and controlled by transducer. The traverse speed follows the take-up speed, that make the traversing pitch adjustable step-less. It is with the function of traverse quickly and adjustment.

C. Bobbins clamping protection, the limited protection of up and down bobbins and terminal protection of transverse movement

D. Semi-automatic operating saving time and label
