8time/Min Cable Hook Test Equipment , Outdoor Fiber Optic Cable Test Equipment
8time/Min Cable Hook Test Equipment , Outdoor Fiber Optic Cable Test Equipment
8time/Min Cable Hook Test Equipment , Outdoor Fiber Optic Cable Test Equipment
8time/Min Cable Hook Test Equipment , Outdoor Fiber Optic Cable Test Equipment
8time/Min Cable Hook Test Equipment , Outdoor Fiber Optic Cable Test Equipment
8time/Min Cable Hook Test Equipment , Outdoor Fiber Optic Cable Test Equipment
8time/Min Cable Hook Test Equipment , Outdoor Fiber Optic Cable Test Equipment
8time/Min Cable Hook Test Equipment , Outdoor Fiber Optic Cable Test Equipment
Specifications
Brand Name :
I-suntop
Model Number :
GFKA-100
Certification :
SGS
Place of Origin :
China
MOQ :
1set
Price :
By negotiation
Payment Terms :
L/C,T/T
Supply Ability :
Up to different machine
Delivery Time :
Min.50working days
Packaging Details :
Plastic film+wooden box
Item :
Fiber Optic Cablea Hook Test Equipment
Application :
Fiber optic cable testing
Hook height :
100mm
Test number setting range :
1～9999
Rate :
8time/min
Sample suspension span :
4.5m，drape factor :300mm
Standards :
IEC60794-1-2
Heavy hammer weight :
3Kg、4Kg、5Kg、6Kg、7Kg
Description

IEC-60794-1-2 Standard Outdoor Fiber Optic Cable Hook Test Equipment

I-suntop Optical cable mechanical testing equipmen...

1. Usage of IEC-60794-1-2 Standard Outdoor Fiber Optic Cable Hook Test Equipment:

This equipment is suitable for impact resistance hookup test of overhead optical cable,including type test (or routine test) and delivery test (or delivery test) to determine the ability of optical cable to withstand sudden hookup.

2. Specifications of IEC-60794-1-2 Standard Outdoor Fiber Optic Cable Hook Test Equipment:

Item spec.

Product model

GFKA-100
Hook height
100mm
Test number setting range
1～9999
Rate
8time/min
Sample suspension span
4.5m,drape factor :300mm
Heavy hammer weight

3Kg,4Kg,5Kg,6Kg,7Kg

Power requirement
Three-phase four wire,50Hz,0.2KW

3. Factory Installation requirements of IEC-60794-1-2 Standard Outdoor Fiber Optic Cable Hook Test Equipment:

  • Host power supply: single phase, AC220V±10%, 50～60Hz, 0.2kW
  • Install onto a stable base, levelness≤0.5/1000, and room of more than 1 m around.
  • Ambient temperature: 10℃±40℃, humidity: ≤80% non-condensing.
  • No vibrating or corrosive media indoor

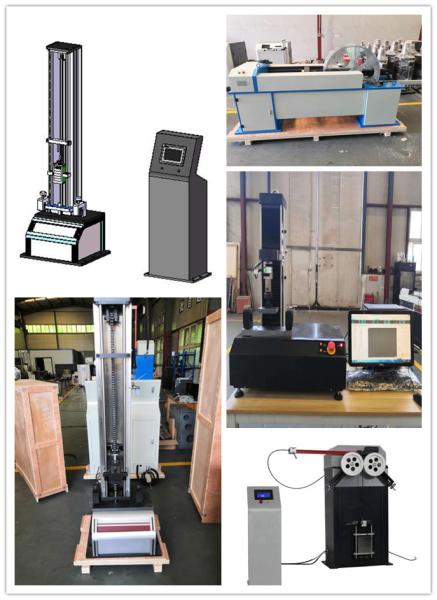

4. Other Fiber optic cable test equipment

A. Computer controlled optical cable tension testing machine

B. Optical cable crush testing machine

C. Optical cable impact testing machine

D. Optical cable repeated bending testing machine

E. Optical cable torsion testing machine (Apply to outside cable)

F. Optical cable flexing testing machine

G. Optical cable abrasion testing machine

H. Optical cable water penetration testing machine
