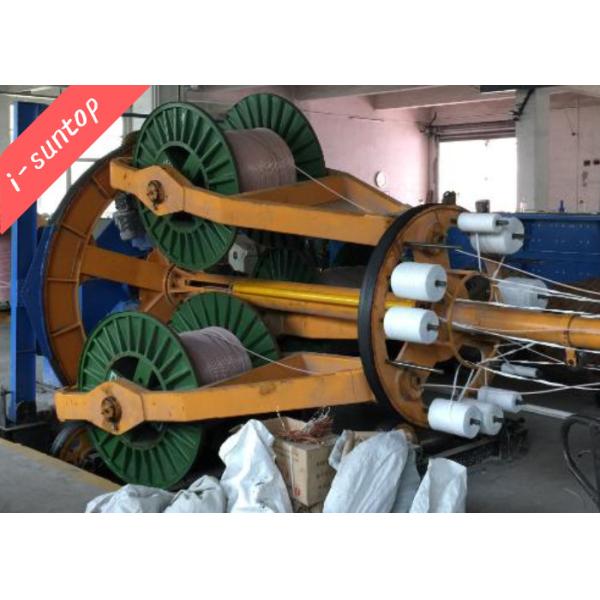

PN1250 5cores Cable Stranding Machine , 60HZ Wire Twisting Equipment
PN1250 5cores Cable Stranding Machine , 60HZ Wire Twisting Equipment
PN1250 5cores Cable Stranding Machine , 60HZ Wire Twisting Equipment
PN1250 5cores Cable Stranding Machine , 60HZ Wire Twisting Equipment
PN1250 5cores Cable Stranding Machine , 60HZ Wire Twisting Equipment
PN1250 5cores Cable Stranding Machine , 60HZ Wire Twisting Equipment
PN1250 5cores Cable Stranding Machine , 60HZ Wire Twisting Equipment
PN1250 5cores Cable Stranding Machine , 60HZ Wire Twisting Equipment
Specifications
Brand Name :
I-suntop
Model Number :
GF-1+1+3/Φ1250
Certification :
SGS
Place of Origin :
China
MOQ :
1set
Price :
By negotiation
Payment Terms :
L/C,T/T
Supply Ability :
Up to different machine
Delivery Time :
Min.60 working days
Packaging Details :
Plastic film+wooden box
Power supply :
50-60HZ,380V
Warranty :
12 Months
Usage :
3cores,4cores or 5cores rubber insulated power cables
Max stranding diameter :
80mm
Application :
twisting
Max cabling diameter :
100mm
Description

1+1+3/Φ1250 High Speed Laying Up Machine Cable Twisting Machine

i-suntop Electric wire and cable equipments2022022...

1. Application for High Speed Laying Up Machine Cable Twisting Machine :
This machine is used for cabling,taping of 3cores,4cores or 5cores rubber insulated power cables.Single insulated core can be circular ,sector shape.
2. Technical parameter for High Speed Laying Up Machine Cable Twisting Machine :

No.

Parameter name

Unit

CLY630 Type

CLY1000 Type

CLY1250 Type

CLY1400 Type

CLY1600 Type

1

Wire-core cross section area

mm2

2.5-16

10-120

16-185

25-240

50-400

2

Max cabling diameter

mm

40

50

60

80

100

3

Cage speed

r/min

24.6-56.5
(6 stage)

11.1-25.1
(6 stage)

9.5-21.5
(6 stage)

6.8-15.5
(6 stage)

4.3-9.6
(6 stage)

4

Cabling pitch

mm

90-2889

90-2889

180-3095

278-4766

448-7605

5

Cable speed

m/min

2.4-33.1
(16 stage)

2.2-32.7
(32 stage)

3.87-29.4
(36 stage)

4.3-32.7
(36 stage)

4.3-32.7
(36 stage)

6

Pay-off bobbin

mm

PN630

PN1000

PN1250

PN1400

PN1600

7

Take-up bobbin

mm

PN100-PN1600

PN100-PN2000

PN100-PN2000

PN125-PN2500

PN140-PN2800

8

Armoring head speed

r/min

191-781
(9 stage)

108-444
(9 stage)

108-444
(9 stage)

108-444
(9 stage)

108-444
(9 stage)

9

Armoring pitch

mm

3-173

5-302

8-272

9-302

9-302

10

Taping head speed

r/min

139-568
(9 stage)

81-323
(9 stage)

81-323
(9 stage)

81-323
(9 stage)

81-323
(9 stage)

11

Taping pitch

mm

4-238

6-403

12-362

13-403

13-403

12

Central height

mm

1000

1000

1000

1000

1000

3. Features for High Speed Laying Up Machine Cable Twisting Machine :

  • This machine use earth axis linkage,reversing gearbox make sure the twist pitch precision and stable

  • reversing gearbox gear adopt Bevel gear,the gears are quenched

  • The machine use frequency control speed.

PN1250 5cores Cable Stranding Machine , 60HZ Wire Twisting Equipment
