PLC Control Pitch Change Cable Twisting Machine Double Twist Bunching Machine

i-suntop Electric wire and cable equipments2022022...

1. Application for PLC Control Pitch Change Cable Twisting Machine Double Twist Bunching Machine :
Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires).
2. Machine specification for PLC Control Pitch Change Cable Twisting Machine Double Twist Bunching Machine :

3. The Advantages of PLC Control Pitch Change Cable Twisting Machine Double Twist Bunching Machine
- High quality stranding wire
Th wire-passing system adopts a new structure and the wire directly passed from the main shaft guide wheel to bow band, so the
scratching and jumping phenomenon caused by failure of the corner guide wheel on the Al wheel is subtracted.
-Reduce the failure rate and maintenance costs
The main engine is oil lubricated and naturally circulated and cooled, which effectively extends the service life of the main
shaft bearings.
The bearings of the whole machine are all well-known Japan brands, The bow belt is made of new materials and has good flexibility.
In high-speed operation, it avoids jumping stock caused by vibration. Inverter, magnetic powder clutch, electromagnetic brake,
hydraulic jack etc are all imported famous brands.
-Easy to operate
Siemens software, PLC control, Operate on the touch screen, change gear to change lay length.

4. Product Description:

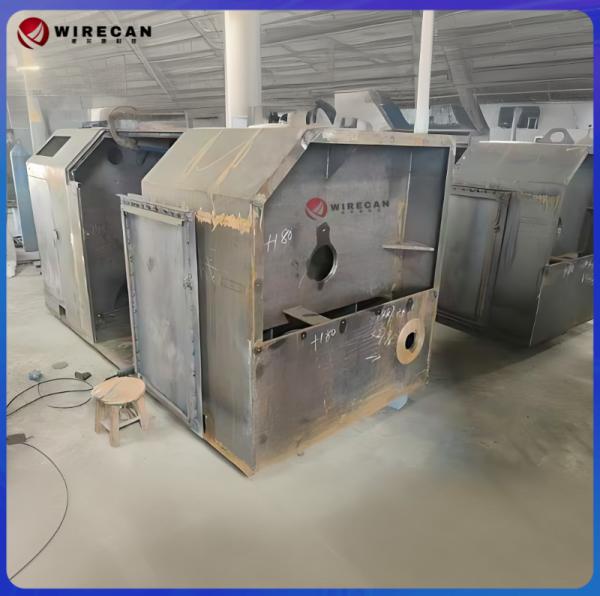

The φ500-φ630 High-Speed Stranding Machine is designed to meet the needs of high-efficiency cable production, offering precision and durability for stranding operations. This machine is ideal for producing high-quality, uniform cables across various applications, including power cables, communication cables, and industrial cables.

5. Key Features:

- Wide Reel Compatibility: Supports reel sizes ranging from φ500mm to φ630mm, providing flexibility for various cable types.
- High-Speed Operation: Achieves a maximum production speed of up to 150m/min, optimizing production cycles and increasing output.
- Precision Stranding: Ensures consistent and uniform stranding, enhancing cable performance and reducing waste.
- Advanced Control System: Equipped with a PLC control system and HMI interface for easy operation, real-time monitoring, and precise adjustments.
- Durable and Reliable: Built with high-quality materials to withstand continuous production in demanding industrial environments, ensuring long-lasting performance.
- Automated Features: Includes automated reel loading and tension control for enhanced efficiency and reduced manual intervention.
