Factory directly supply 12,24,48,96,144 core ADSS/GYXTW/GYTC8S fiber optic outdoor cable
Factory directly supply 12,24,48,96,144 core ADSS/GYXTW/GYTC8S fiber optic outdoor cable
Factory directly supply 12,24,48,96,144 core ADSS/GYXTW/GYTC8S fiber optic outdoor cable
Factory directly supply 12,24,48,96,144 core ADSS/GYXTW/GYTC8S fiber optic outdoor cable
Factory directly supply 12,24,48,96,144 core ADSS/GYXTW/GYTC8S fiber optic outdoor cable
Factory directly supply 12,24,48,96,144 core ADSS/GYXTW/GYTC8S fiber optic outdoor cable
Factory directly supply 12,24,48,96,144 core ADSS/GYXTW/GYTC8S fiber optic outdoor cable
Factory directly supply 12,24,48,96,144 core ADSS/GYXTW/GYTC8S fiber optic outdoor cable
Factory directly supply 12,24,48,96,144 core ADSS/GYXTW/GYTC8S fiber optic outdoor cable
Factory directly supply 12,24,48,96,144 core ADSS/GYXTW/GYTC8S fiber optic outdoor cable
Specifications
Model Number :
GYTC8S/ADSS/GYXTW, GYTC8S/ADSS/GYXTW cable
Place of Origin :
China
Brand Name :
ODM/OEM
Certification :
RoHS
Packaging Details :
2KM/Wood Spool
Supply Ability :
100000 Kilometer/Kilometers per Quarter
MOQ :
1000 meters
Price :
$0.30 - $1.00/meters
Payment Terms :
T/T, Western Union
Type :
Fiber Optic Cable
Number of Conductors :
≥ 10
Jacket Material :
PE, TPU, LSZH
Fiber Count :
2 to 144 Fiber
Fiber Brand :
Corning, OFS, YOFC
Fiber Type :
G652D, G657A1, G657A2
Packing :
2KM/Drum
Cable Size :
8mm~16mm
Application :
Telecommunication
Using Environment :
Aerial, Duct
Storage Temperature(℃) :
-40~+70
Description
Products Description

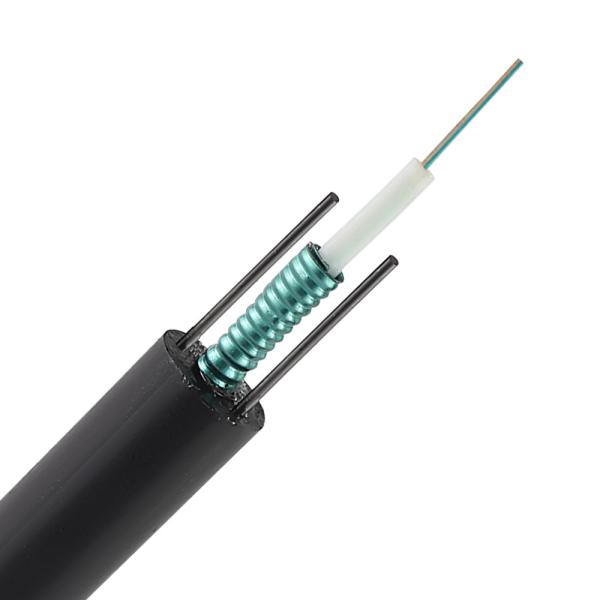

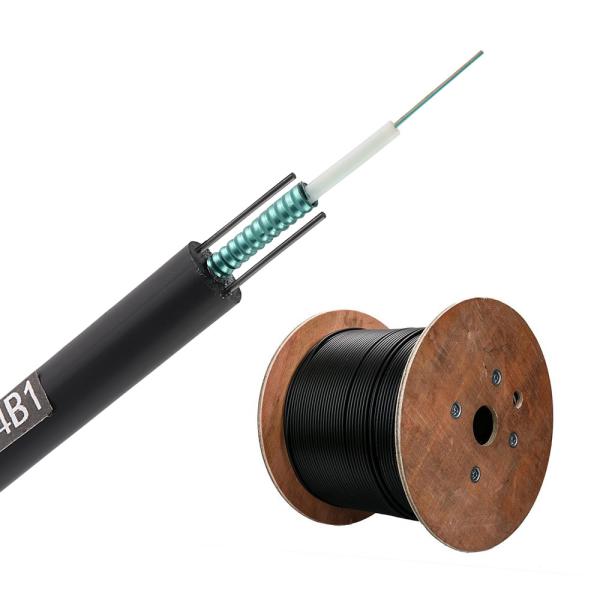

2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor Armoured G657A GYXTW Fiber Optical Cable

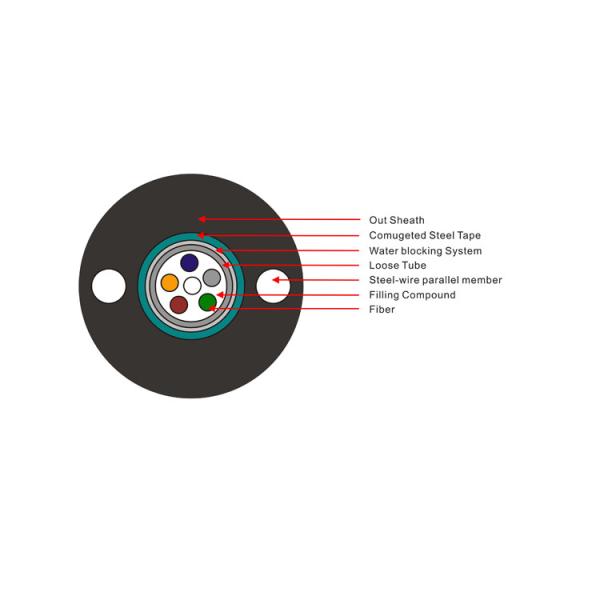

The structure of GYXTW cable is 250µm optical fiber ribbon is inserted into a loose tube of high modulus material. The loose tube is filled with gel filling compound. The loose tube is covered by a PSP longitudinal. Water-blocking material is added between the metallic strength member and loose tube to ensure the compactness of optical cable and longitudinal water seepage of optical cable.Two parallel steel wires are placed on both sides,and then the cable is completed with PE outer sheath.

Product Characteristics

* Material of loose tube has good mechanical properties and temperature characteristics
* Material of loose tube has good hydrolysis resistance and high strength
* The tube is filled with special filler to provide critical protection for the fiber
* Good lateral pressure resistance and softness
* Double chrome plating plastic-coated steel tape (PSP) improves the moisture resistance of optical cables
* The two parallel steel wires provides enough tensile strength
* Small diameter, light weight, easy for laying
Factory directly supply 12,24,48,96,144 core ADSS/GYXTW/GYTC8S fiber optic outdoor cable
Factory directly supply 12,24,48,96,144 core ADSS/GYXTW/GYTC8S fiber optic outdoor cable
Cable type
OD(mm)
NominalWeight(kg/km)
tensile strength(N)
Crush Resistance(N/100MM)
Bending Radius(mm)
Short-term
Long-term
Short-term
Long-term
Dynamic
Static
ADSS-2~48Xn
12.0±0.5
140.0
3600
1200
1000
500
20D
15D
ADSS-96Xn
14.0±0.5
165.0
3600
1200
1000
500
20D
15D
ADSS-144Xn
16.0±0.5
205.0
3600
1200
1000
500
20D
15D
Storage/Working temperature(℃)
-40~+70
Factory directly supply 12,24,48,96,144 core ADSS/GYXTW/GYTC8S fiber optic outdoor cable
Company Profile
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Looking forward to cooperate with you.
Factory directly supply 12,24,48,96,144 core ADSS/GYXTW/GYTC8S fiber optic outdoor cable
FAQ
Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
