Supply ethernet cable GYXTW aerial armoured 4 core fiber optic cable price
Supply ethernet cable GYXTW aerial armoured 4 core fiber optic cable price
Supply ethernet cable GYXTW aerial armoured 4 core fiber optic cable price
Supply ethernet cable GYXTW aerial armoured 4 core fiber optic cable price
Supply ethernet cable GYXTW aerial armoured 4 core fiber optic cable price
Supply ethernet cable GYXTW aerial armoured 4 core fiber optic cable price
Supply ethernet cable GYXTW aerial armoured 4 core fiber optic cable price
Supply ethernet cable GYXTW aerial armoured 4 core fiber optic cable price
Specifications
Model Number :
GYXTW
Place of Origin :
China
Brand Name :
ODM/OEM
Certification :
ISO9001
Packaging Details :
2KM/Wooden Drum
Supply Ability :
100000 Meter/Meters per Week
MOQ :
2000 meters
Price :
$0.05 - $0.25/meters
Payment Terms :
T/T, Western Union
Type :
Outdoor Fiber Optic Cable
Number of Conductors :
4
fiber model :
G652D or G657A1
number of core :
2 4 6 8 10 12 24 core
loose tube color :
at your request
Fiber Type :
Single Mode
outer sheath :
PE
Application :
Telecommunication
outer Color :
Black
Operating temperature :
-30°C~+70°C
Strength member :
2 Steel Wire
Description
Ethernet cable GYXTW aerial armoured 4 core fiber optic cable price

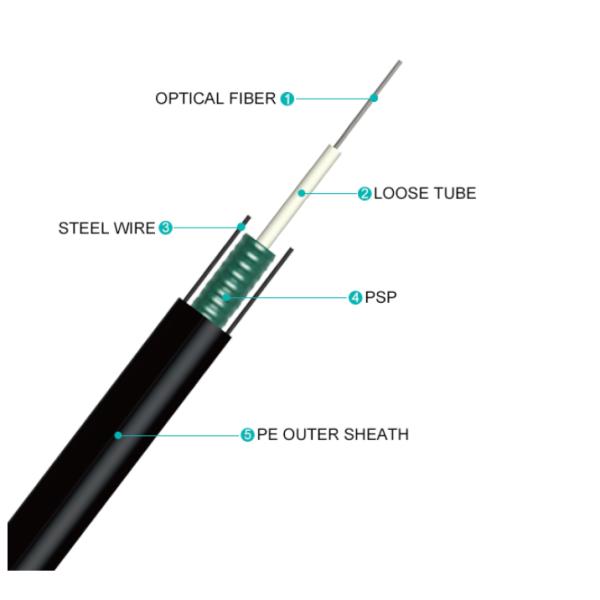

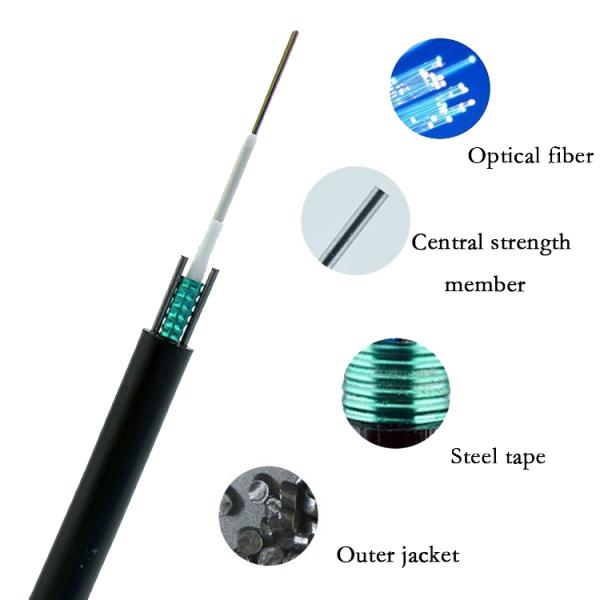

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Supply ethernet cable GYXTW aerial armoured 4 core fiber optic cable price
Feature

Good mechanical and temperature performance


High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Crush resistance and flexibility

PSP enhancing moisture-proof

Two parallel steel wires ensure tensile strength

Small diameter, light weight and friendly installation

Long delivery length
Supply ethernet cable GYXTW aerial armoured 4 core fiber optic cable price
Technical data
No. of cable
2~8
10~12
14~24
Fiber Model
G.652D
Strength Member
Material
Steel Wire
Diameter(±0.05)mm
0.5
0.5
0.5
Loose Tube
Material
PBT
Diameter(±0.06)mm
2.1
2.4
2.8
Thickness(±0.03)mm
0.32
0.35
0.4
The Max.Core NO./Tube
8
12
24
Water Blocking layer(Material)
Water Blocking Tape
Armoring
Material
Steel Strip
Thickness(±0.03)mm
0.25
Outer Sheath
Material
MDPE
Thickness(±0.2)mm
2.0
Cable Diameter(±0.2)mm
7.9
8.1
8.5
Cable Weight(±5)kg/km
60
63
68
Min. bending radius
Without Tension
10.0×Cable -φ
Under Maximum Tension
20.0×Cable -φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70
Performance
Supply ethernet cable GYXTW aerial armoured 4 core fiber optic cable price

Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm

Fiber : G652D
Installation : Suitable for aerial or duct
Application : Apply to Long distance communication system, Local area network system and Subscriber network system
Lifetime : above 30 years
Operating temperature : -30°C~+70°C
Company Information

We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.

We also promise all the features and advantages are the high technology, which are full of professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
