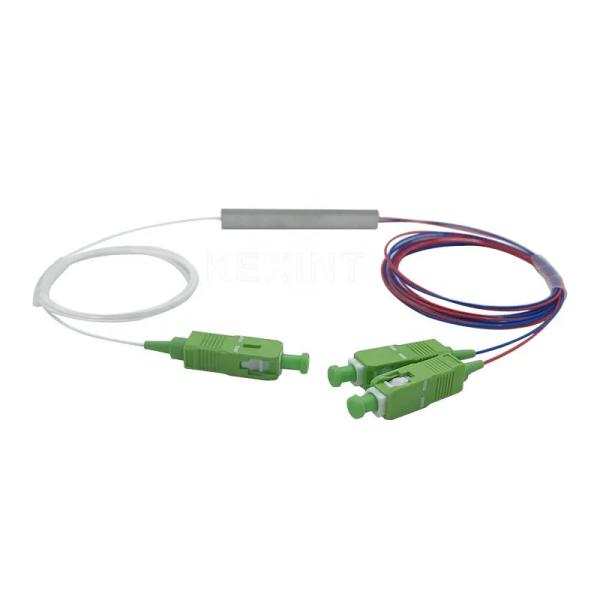

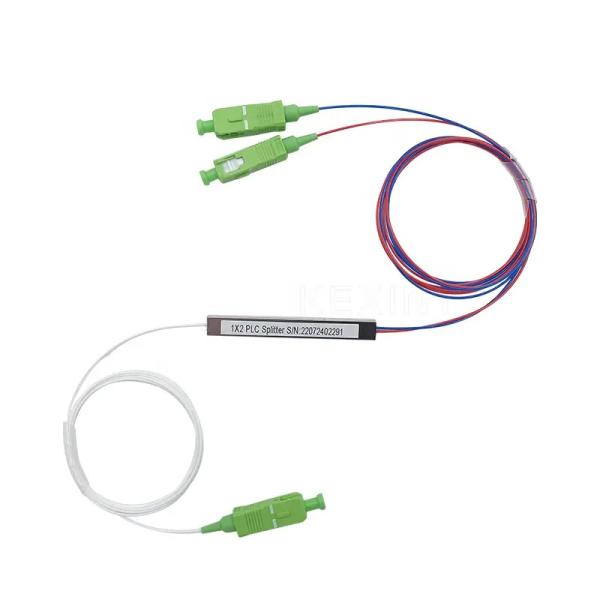

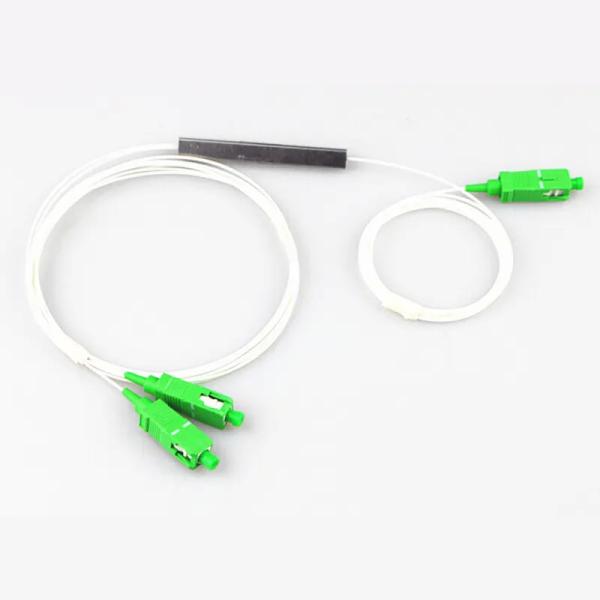

Optical 1x2 PLC Fiber Splitter SC APC UPC Single Mode Micro Steel Tube Type
Optical 1x2 PLC Fiber Splitter SC APC UPC Single Mode Micro Steel Tube Type
Optical 1x2 PLC Fiber Splitter SC APC UPC Single Mode Micro Steel Tube Type
Optical 1x2 PLC Fiber Splitter SC APC UPC Single Mode Micro Steel Tube Type
Optical 1x2 PLC Fiber Splitter SC APC UPC Single Mode Micro Steel Tube Type
Optical 1x2 PLC Fiber Splitter SC APC UPC Single Mode Micro Steel Tube Type
Optical 1x2 PLC Fiber Splitter SC APC UPC Single Mode Micro Steel Tube Type
Optical 1x2 PLC Fiber Splitter SC APC UPC Single Mode Micro Steel Tube Type
Specifications
Model Number :
SC APC PLC Splitter
Place of Origin :
China
Brand Name :
OEM/ODM
Certification :
RoHS
Packaging Details :
standard export carton box
MOQ :
100 pieces
Price :
$2.80/pieces 100-499 pieces
Payment Terms :
T/T, Western Union
Type :
PLC splitter
Use :
FTTH
Warranty Time :
1 year
Network :
Wired LAN, 4g
Model :
1*2 plc splitter
Fiber type :
Single Mode
Diameter :
0.9mm
Length :
1m
Description

1x2 micro steel tube sc apc upc fiber optic plc splitter

Product Description
PLC optical splitter made by the semiconductor process. Optical wave guide needle is located at the top of the chip, in the chip to achieve shunt, PLC optical splitter can be divided into cassette, chip, rack, etc type.
Optical 1x2 PLC Fiber Splitter SC APC UPC Single Mode Micro Steel Tube Type

Overview

*Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical
waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
*It features small size,high reliability, wide operating wavelength range and good channel-to-channel uniformity.
*These are widely used in PON networks to realize optical signal power splitting as a low-cost solution.

Feature

* Low Insertion Loss,Low PDL(Polarization Dependent Loss)
* Compact Design
* Exceptional Reliability and Stability
* Wide Operating Wavelength: From 1260nm to 1650nm
* Wide Operating Temperature: From -20°C to 70°C
* Conformed to RoHS

Application

* FTTX Systems
* LAN, WAN and Metro Networks
* Analog/Digital Passive Optical Networks
* CATV Networks
* Other applications in fiber optic systems
Specification
Specifications
Port Configuration
1x2
1x3
1x4
1X6
1x8
1X12
1x16
1x32
1x64
Insertion Loss (dB)
4.1
6.5
7.5
10.0
10.8
12.9
13.8
17.0
21.4
Loss Uniformity (dB)
0.6
0.6
0.6
0.6
0.8
1.0
1.2
1.5
1.5
Polarization Dependent Loss(dB)
0.2
0.2
0.2
0.2
0.2
0.2
0.25
0.3
0.4
Wavelength Dependent Loss(dB)
0.3
0.3
0.3
0.3
0.3
0.3
0.5
0.5
0.5
Temperature Dependent Loss (dB)
0.4
0.4
0.4
0.4
0.4
0.4
0.5
0.5
0.5
Return Loss (dB)
UPC ≥50；APC≥55
Directivity (dB)
≥ 55
Operating Wavelength (nm)
1260～1650
Fiber Type
G657A1 or customer specified
Operating Temperature
-40~+85
Storage Temperature
-40~+85
Packing & Delivery
Packing
1x2;1x3;1x4;1x6;1x8
200pcs/carton
1x12;1x16
100pcs/carton
1X32
50pcs/carton
1X64
20pcs/carton
packing material
plastic box
Carton Dimension (HxWxD)
430x410x405mm
Company Profile
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
