Outdoor 2 Core Armored Cable Fiber Optical With MDPE Sheath 7.6mm Diameter
Outdoor 2 Core Armored Cable Fiber Optical With MDPE Sheath 7.6mm Diameter
Outdoor 2 Core Armored Cable Fiber Optical With MDPE Sheath 7.6mm Diameter
Outdoor 2 Core Armored Cable Fiber Optical With MDPE Sheath 7.6mm Diameter
Outdoor 2 Core Armored Cable Fiber Optical With MDPE Sheath 7.6mm Diameter
Outdoor 2 Core Armored Cable Fiber Optical With MDPE Sheath 7.6mm Diameter
Outdoor 2 Core Armored Cable Fiber Optical With MDPE Sheath 7.6mm Diameter
Outdoor 2 Core Armored Cable Fiber Optical With MDPE Sheath 7.6mm Diameter
Outdoor 2 Core Armored Cable Fiber Optical With MDPE Sheath 7.6mm Diameter
Outdoor 2 Core Armored Cable Fiber Optical With MDPE Sheath 7.6mm Diameter
Specifications
Model Number :
GYXTW
Place of Origin :
China
Brand Name :
ODM/OEM
Packaging Details :
0.5~2km/reel
Supply Ability :
1000000 Meter/Meters per Week
MOQ :
2000 meters
Price :
$0.20 - $0.50/meters
Certification :
RoHS, CE
Payment Terms :
T/T, Western Union
Type :
Outdoor Fiber Optic Cable
Number of Conductors :
2
Fiber Type :
50/125
Fiber count :
2 Core
Strength member material :
2 steel wire
Water blocking layer material :
Water blocking tape
Armored material :
Steel strip
Outer sheath material :
MDPE
Cable diameter :
7.6mm
Packing :
2-4km/drum
Cable marking :
as your requirements
Color :
Black
Description
Most contractors use outdoor 2 core armored cable GYXTW cable fibra optica

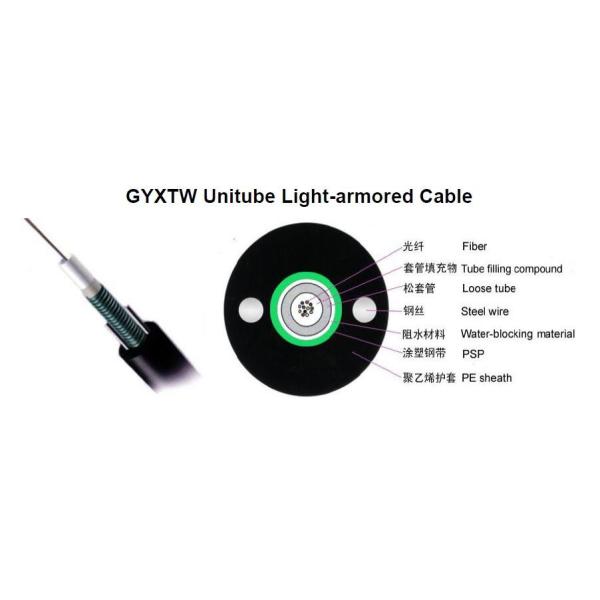

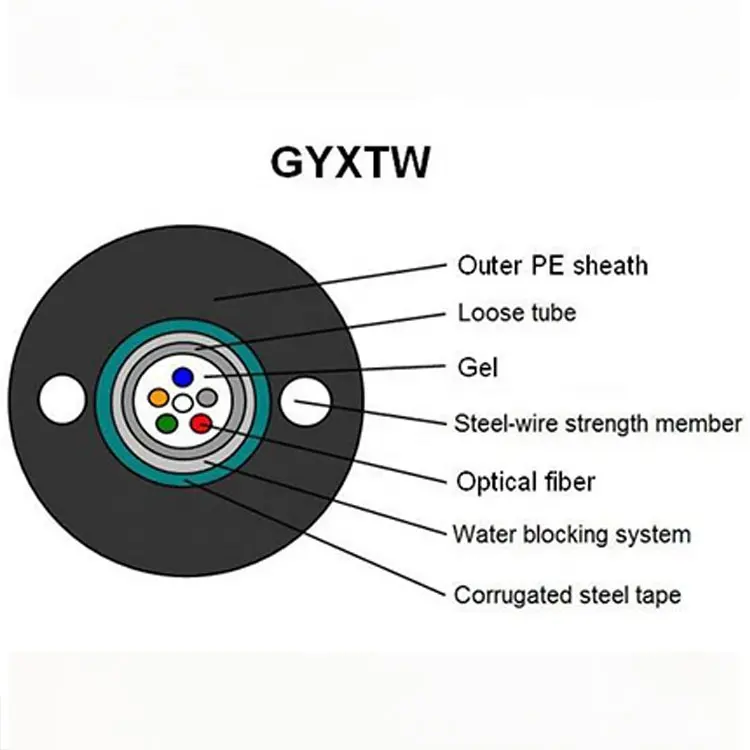

GYXTW Unitube Light-armored Cable
The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Outdoor 2 Core Armored Cable Fiber Optical With MDPE Sheath 7.6mm Diameter
Feature
Outdoor 2 Core Armored Cable Fiber Optical With MDPE Sheath 7.6mm Diameter
* Good mechanical and temperature performance
* High strength loose tube that is hydrolysis resistant
* Special tube filling compound ensure a critical protection of fiber
* Crush resistance and flexibility
* PSP enhancing moisture-proof
* Two parallel steel wires ensure tensile strength
* Small diameter, light weight and friendly installation
* Long delivery length
Technical data
No. of cable
2~24
Fiber Model
50/125(OM2)
Strength Member
Material
Steel Wire
Diameter(±0.05)mm
0.8
Loose Tube
Material
PBT
Diameter(±0.06)mm
3.0
Thickness(±0.03)mm
0.4
The Max.Core NO./Tube
24
Water Blocking layer(Material)
Water Blocking Tape
Armoring
Material
Steel Strip
Thickness(±0.03)mm
0.25
Outer Sheath
Material
MDPE
Thickness(±0.2)mm
2.0
Cable Diameter(±0.2)mm
9.0
Cable Weight(±5)kg/km
70
Min. bending radius
Without Tension
10.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70
Related products
Outdoor 2 Core Armored Cable Fiber Optical With MDPE Sheath 7.6mm Diameter
Our Company
Outdoor 2 Core Armored Cable Fiber Optical With MDPE Sheath 7.6mm Diameter
We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.
We also promise all the features and advantages are the high technology, which are full of
professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Outdoor 2 Core Armored Cable Fiber Optical With MDPE Sheath 7.6mm Diameter
Outdoor 2 Core Armored Cable Fiber Optical With MDPE Sheath 7.6mm Diameter
FAQ & Contact
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
