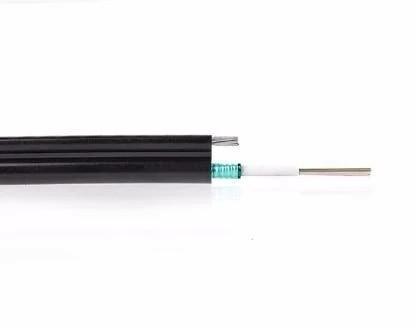

Customized Steel Wire Armoured Cable , Optical Fiber Cable 4 Core With PE Sheath
Customized Steel Wire Armoured Cable , Optical Fiber Cable 4 Core With PE Sheath
Customized Steel Wire Armoured Cable , Optical Fiber Cable 4 Core With PE Sheath
Customized Steel Wire Armoured Cable , Optical Fiber Cable 4 Core With PE Sheath
Customized Steel Wire Armoured Cable , Optical Fiber Cable 4 Core With PE Sheath
Customized Steel Wire Armoured Cable , Optical Fiber Cable 4 Core With PE Sheath
Customized Steel Wire Armoured Cable , Optical Fiber Cable 4 Core With PE Sheath
Customized Steel Wire Armoured Cable , Optical Fiber Cable 4 Core With PE Sheath
Specifications
Model Number :
GYXTC8S
Place of Origin :
China
Brand Name :
ODM/OEM
Packaging Details :
2-3km/wooden drum
Supply Ability :
100 Kilometer/Kilometers per Week
MOQ :
2000 meters
Price :
$0.10 - $0.30/meters
Certification :
RoHS, CE
Payment Terms :
T/T, Western Union
Type :
Outdoor Fiber Optic Cable
Number of Conductors :
4
Mode :
steel armored
Fiber count :
4 core
Fiber Type :
G652D single mode
Self-supporting :
one 2.0mm solid steel wires
Loose tube :
PBT
Outer sheath material :
PE
Armored material :
Steel tape
Color :
Black
Description

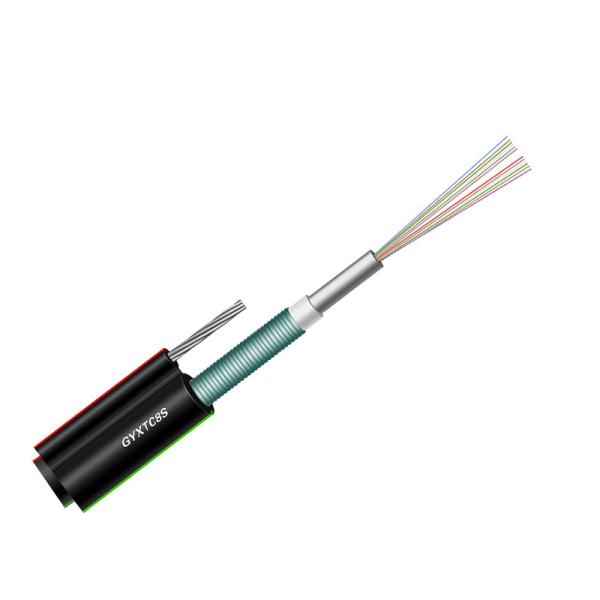

Wanbao steel armored aerial 4 core single mode fiber optic cable figure 8 GYXTC8S

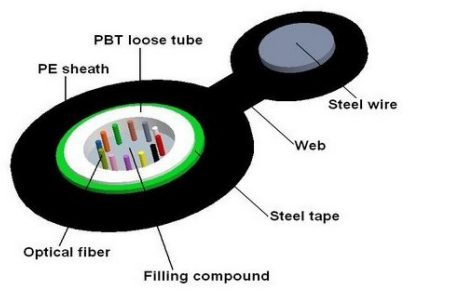

In the GYXTC8S cable, single-mode/multimode the fibers, 250μm , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member.The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.

Customized Steel Wire Armoured Cable , Optical Fiber Cable 4 Core With PE Sheath
Customized Steel Wire Armoured Cable , Optical Fiber Cable 4 Core With PE Sheath
Specification
No. of cable
4
6
12
24
Fiber Model
G.652D
Loose Tube
Material
PBT
Diameter(±0.06)mm
2.0
2.8
Thickness(±0.03)mm
0.35
The Max.Core NO./Tube
4
6
12
24
Water Blocking layer(Material)
Water Blocking Tape
Armoring
Material
Steel Tape
Thickness(±0.03)mm
0.25
Messenger Wire
Material
Steel Wire
Size(±0.05)mm
2.0mm
Web
Material
MDPE
Size(±0.1)mm
2.0×2.0
Outer Sheath①
Material
MDPE
Thickness(±0.1)mm
1.2
Outer Sheath②
Material
MDPE
Thickness(±0.1)mm
1.5
Cable Diameter(±0.5)mm
6.6×11.5
7.4x12.5
Cable Weight(±10)kg
93
102
Min. bending radius
Without Tension
10.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70
Application
1
Tensile Strength
Short Term
1500N
Long Term
600 N
2
Crush Resistance
Short Term
1000 (/100mm)
Long Term
300 (/100mm)

The properties of single mode optical fiber (ITU-T Rec. G.652.D)

Item
Specification
Fiber type
Single mode
Fiber material
Doped silica
Attenuation coefficient
@ 1310 nm
@ 1383 nm
@ 1550 nm
@ 1625 nm

≤ 0.36 dB/km
≤ 0.32 dB/km
≤ 0.22 dB/km
≤ 0.30 dB/km
Point discontinuity
≤ 0.05 dB
Cable cut-off wavelength
≤ 1260 nm
Zero-dispersion wavelength
1300 ~ 1324 nm
Zero-dispersion slope
≤ 0.092 ps/(nm2.km)
Chromatic dispersion
@ 1288 ~ 1339 nm
@ 1271 ~ 1360 nm
@ 1550 nm
@ 1625 nm
≤3.5 ps/(nm. km)
≤5.3 ps/(nm. km)
≤18 ps/(nm. km)
≤22 ps/(nm. km)
PMDQ (Quadrature average*)
≤0.2 ps/km1/2
Mode field diameter @ 1310 nm
9.2±0.4 um
Core / Clad concentricity error
≤ 0.5 um
Cladding diameter
125.0 ± 0.7 um
Cladding non-circularity
≤1.0%
Primary coating diameter
245 ± 10 um
Proof test level
100 kpsi (=0.69 Gpa), 1%
Temperature dependence
0℃~ +70℃ @ 1310 & 1550nm
≤ 0.1 dB/km
