Specifications
Model Number :
FOC-LC
Place of Origin :
China
Brand Name :
ODM/OEM
Certification :
RoHS, CE
Packaging Details :
PE Bag
Supply Ability :
10000 Piece/Pieces per Day
MOQ :
10 pieces
Price :
$0.40 - $0.60/pieces
Payment Terms :
T/T, Western Union
Type :
Fiber Adapter & Connectors
Connector Type :
LC
Ferrule End-face :
PC, UPC,APC
Fiber Type :
Singlemode, Multimode
Cable Type :
Simplex, Duplex
Cable OD :
0.9/2.0/3.0mm
Housing Color :
Blue, Green, Beige
Insertion Loss :
<0.3dB
Return Loss :
>50dB
Description

Multimode LC Fiber Optic Connector With PC UPC APC Polishing Fiber Ferrule

Description:

LC fiber connector is a small form factor connector that uses a 1.25 mm ferrule, half the size of the SC.

It's a standard ceramic ferrule connector, easily terminated with any adhesive.

Good performance, highly favored for singlemo

Features:

Easy installation

Competitive price

Good durability

Good temperature performance

Precision mechanical dimension

Boots in a variety of colors

Application:

Fiber optic communication system and telecommunication networks

Fiber optic data transmission

Optical access network

Fibre to the Subscriber (FTTx) applications

Optical cable interconnection

Maintenance or emergency restoration of fiber networks

Repair/replacement requirements

Fiber optic equipment

Specification:

Item Single Mode Multi Mode
Insertion Loss <0.2dB <0.3bB
Insert-Pull Test 1000 times
Operating Temperature -40°C ~ +85°C
Ceramic Ferrule Specification 125.5um concentricity deviations:<1um 127um concentricity deviations:<3um
Suitable Fiber 9/125um 50/125um,62.5/125um
Order Information:
Item Connector Description Item Connector Description
PC/UPC/APC PC/UPC/APC
Connector Singlemode 9/125 ST Connector Multimode (50/125 or 62.5/125) ST
SC SC
FC FC
LC LC
MU MU
MTRJ(female) MTRJ(female)
MTRJ(male) MTRJ(male)
DIN

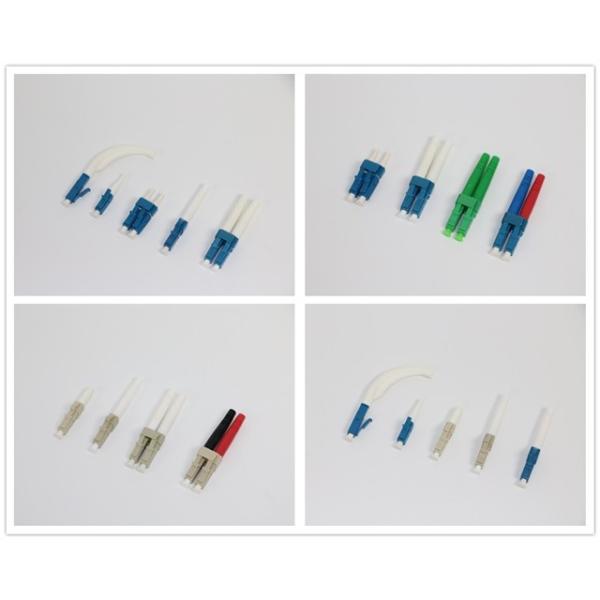

More Picture:

Multimode LC Fiber Optic Connector With PC UPC APC Polishing Fiber Ferrule

Our Company

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.

Multimode LC Fiber Optic Connector With PC UPC APC Polishing Fiber Ferrule

INNOVATIVE TECHNOLOGY

We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.

Packing & Delivery

Sample

Within 1-2 working days

Wholesale orders

3-7 working days according various quantities

Multimode LC Fiber Optic Connector With PC UPC APC Polishing Fiber Ferrule
Multimode LC Fiber Optic Connector With PC UPC APC Polishing Fiber Ferrule
FAQ

1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.

2. What's our main products?
Answer: We dedicate to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.

3. What is the area of the factory?
Over 2500 square meters
More than 18 non dust productions lines in total
1 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines

4. What certificate we have?
Answer: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.
