Low Insertion Loss Dwdm Fiber Optic 1260～1620nm Operating Wavelength
Low Insertion Loss Dwdm Fiber Optic 1260～1620nm Operating Wavelength
Specifications
Certification :
ISO 9001
MOQ :
10 Pieces
Price :
Negotiable
Packaging Details :
Cartoon
Delivery Time :
7-10 Days
Payment Terms :
30% deposit , Balance due within 7 days from date of shipment bill of lading
Supply Ability :
50000 Monthly Output
Item :
WDM Solutions
Operating wavelength(nm) :
1260～1620
Application :
Telecommunication
Features :
High channel isolation
Channel Spacing(nm) :
20
Color :
Customized
Description

Description

Wavelength Division Multiplexer (WDM) is the device which uses multiple optical maser to transmit multi beam of different wavelengths of laser technology through a single fiber. Each signal is transmitted in its unique channel after the data (text, voice, video and so on) modulated. WDM can increase the existing fiber infrastructure for phone companies and other operators.

We also provide CWDM module, including CWDM mux / demux module and CWDM OADM module. Single fiber or dual fiber connection for CWDM mux/demux can be applicable.

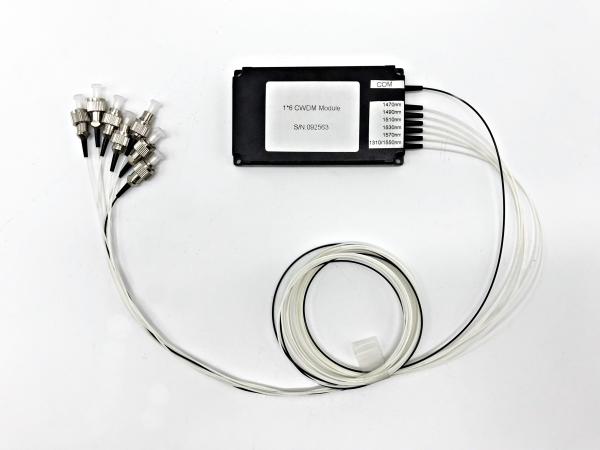

Our Coarse wavelength division multiplexer (CWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path. 4 channel, 6 channel, 8 channel, 16 channel, 18 channel can be chosen.

Features

  1. Low Insertion Loss
  2. High Isolation
  3. Low PDL
  4. Compact Design
  5. Good channel-to-channel uniformity
  6. Wide Operating Wavelength:
  7. From 1260nm to 1620nm
  8. Wide Operating Temperature:
  9. From -40℃ to 85℃
  10. High Reliability and Stability

Applications

Line monitoring

WDM network

Telecommunication

Cellular Application

Fiber optical amplifier

Access Network

Ordering Information

CWDM
Channel Spacing Pass Channel Fiber Type Fiber Length Connector

C=CWDM Grid

27=1270nm

……

47=1470nm

49=1490nm

……

61=1610nm

1=Bare Fiber

2=900um Loose tube

1=1m

2=2m

3=Customized

0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=ST

6=LC

We can produce WDM including the following:

CWDM device, CWDM module, 1310/1550 Filter WDM, 1310/1490/1550nm Filter WDM, 850/1310nm Filter WDM, 980/1550nm Filter WDM

DWDM device, 100G DWDM Module, 200G DWDM Module

OADM Module (Add/Drop)

Thermal AWG Module, Athermal AWG Module
