Single Mode Fiber Optic Patch Cable Simplex 2.0-30M LC LC Type Low Insertion Loss
Single Mode Fiber Optic Patch Cable Simplex 2.0-30M LC LC Type Low Insertion Loss
Single Mode Fiber Optic Patch Cable Simplex 2.0-30M LC LC Type Low Insertion Loss
Single Mode Fiber Optic Patch Cable Simplex 2.0-30M LC LC Type Low Insertion Loss
Specifications
Name :
Fiber Optic Patch Cable
Connector type: :
LC-LC
Core Type: :
Single-mode , Multimode
Cable Quantity: :
Simplex, duplex or customized
Cable Diameter: :
3.0mm, 2.0mm, 0.9mm
Cable Length: :
1, 2, 3 meter or customized
Application :
FTTH , CATV, LAN
Feature :
Low insertion loss
Certification :
ISO 9001
MOQ :
10 Pieces
Price :
Negotiable
Packaging Details :
Cartoon
Delivery Time :
7-10 Days
Payment Terms :
30% deposit , Balance due within 7 days from date of shipment bill of lading
Supply Ability :
50000 Monthly Output
Description

Products description

Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

Features:

(1) Ceramic Ferrule;

(2) High return loss;

(3) Low insertion loss;

(4) Good repeatability and and exchangeability;

(5) Excellent Polished and 100% tested;

(6) Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.

Applications:
FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
Active Device Termination
Premise Installations
Telecommunication and Data processing Networks
Video transmission , Data transmission

Specification

Item Unit LC/SC/FC/ST Fiber Patch Cord
SM MM
Fiber Diameter um 9/125 65.5/125 50/125
Polishing PC UPC APC PC PC
Insertion Loss dB ≤0.2 ≤0.15 ≤0.2 ≤0.1 ≤0.1
Return Loss dB ≥45 ≥50 ≥60 - -
Insert-pull Test dB ≤0.2 ≤0.2 ≤0.3 ≤0.15 ≤0.15
Interchangeability dB ≤0.1 ≤0.1 ≤0.15 ≤0.1 ≤0.1
Temperature Range ℃ -40~+80
Durability(1/Matings) ≥500
Tensile Strength (N) ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber 9/125um, 50/125um,62.5/125um,ect
Diameter 0.9mm 2.0mm, 3.0mm etc
Cores Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc

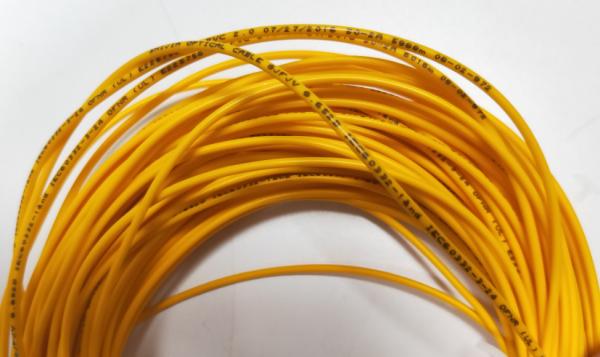

Product Show

Single Mode Fiber Optic Patch Cable Simplex 2.0-30M LC LC Type Low Insertion LossSingle Mode Fiber Optic Patch Cable Simplex 2.0-30M LC LC Type Low Insertion Loss
