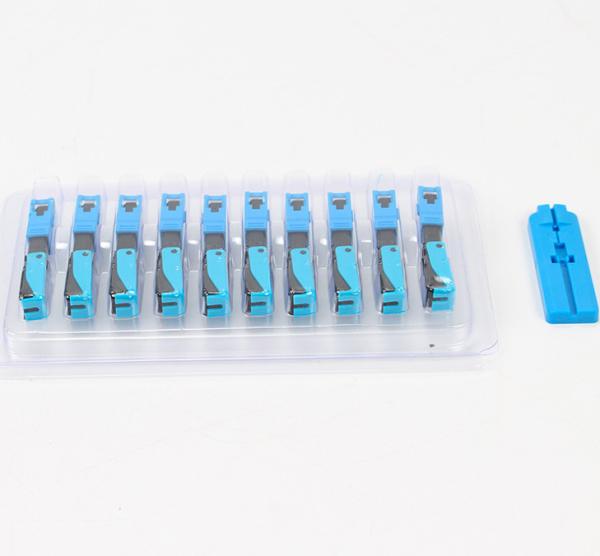

High Return Loss Fiber Optic Cable Connectors Excellent Mechanical Endurance
High Return Loss Fiber Optic Cable Connectors Excellent Mechanical Endurance
Specifications
Application :
Fiber Optic Telecommunications
Fiber Mode :
Singlemode, Multimode
Keyword :
Fiber Optic Cable Connectors
Advantages :
Excellent mechanical endurance
Applicative Connector Type :
SC,LC,FC,ST,MU,D4,DIN
Material :
Plastic Housing, Metal Housing
Certification :
ISO 9001
MOQ :
10 Pieces
Price :
Negotiable
Packaging Details :
Cartoon
Delivery Time :
7-10 Days
Payment Terms :
30% deposit , Balance due within 7 days from date of shipment bill of lading
Supply Ability :
50000 Monthly Output
Description

Fiber optic fast connectors make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. We can greatly reduce the assembly and set up time. The pre-polished connectors are mainly applied to FTTH cable in FTTH projects, directly in the end user site.

Features

• Low insertion loss, high return loss
• Excellent Temperature stability
• Good repeatability and exchangeability
• Excellent mechanical endurance
• Strict curing time and temperature control
• Strict testing standards and methods for quality
• Environment protection (ROHS Compliance)
• The fiber optical patch cord can be customized according to customers'specificrequirements (Customized Connector/Length/package...)
• 100% NEW raw material and well quality control ensure the best life time.


Applications

  • Local Area Networks (LANs) and Wide Area Networks (WANs)
  • Fiber Optic CATV, FTTH, FTTB, FTTP etc
  • Fiber Optic telecommunication systems
  • Transmission Mode (ATM)
  • Fiber Optic Backbone
  • Military Instrumentation

Specifications

ITEM PARAMETER
Applicative Connector Type SC,LC,FC,ST,MU,D4,DIN
Fiber mode Single mode Multi-mode
Test wavelength 1310nm, 1550nm 850nm, 1300nm
Insertion Loss typical≤0.20dB,Max≤0.30dB typical≤0.15dB,Max≤0.25dB
Return Loss UPC≥50.0dB,APC≥60.0dB ≥35.0dB
Durability ≤0.20dB typical change,1000 mating
Applicative cable OD. ∮0.9mm/∮1.8mm&∮2.0mm /∮3.0mm (MU only ∮0.9mm/∮2.0mm)
Connector Ferrule OD. ∮2.5mm:SC, FC,ST,DIN; ∮2.0mm:D4; ∮1.25mm:LC,MU
Angle BOOT SC,LC(45 or 90 degree)
Operating Temperature -20ºC to +70ºC
Storage Temperature - 40ºC to +85ºC
Ferrule Specification 125.3+1/-0μm, Concentricity: ≤1.0μm 127+3/-0μm, Concentricity: ≤3.0μm
