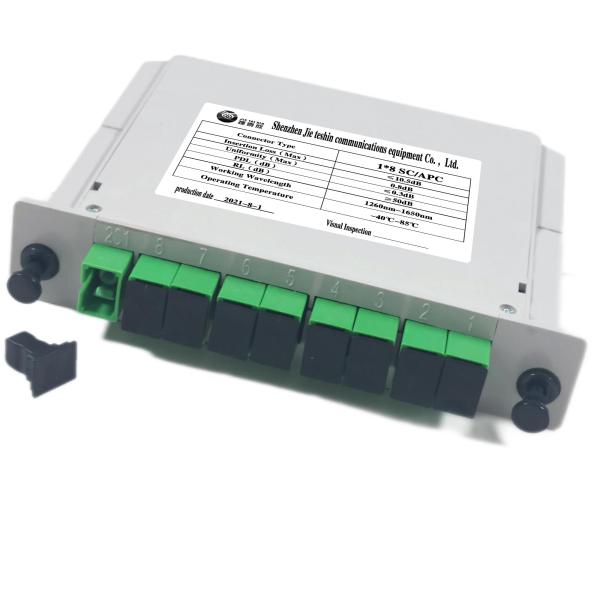

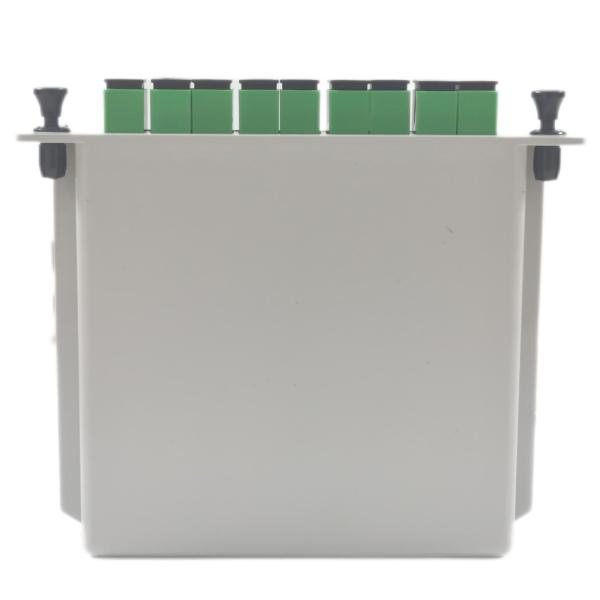

PLC Fiber Splitter 1x8 SC APC 1260-1650nm 0.9mm 2.0mm Low Insertion Loss
PLC Fiber Splitter 1x8 SC APC 1260-1650nm 0.9mm 2.0mm Low Insertion Loss
PLC Fiber Splitter 1x8 SC APC 1260-1650nm 0.9mm 2.0mm Low Insertion Loss
PLC Fiber Splitter 1x8 SC APC 1260-1650nm 0.9mm 2.0mm Low Insertion Loss
PLC Fiber Splitter 1x8 SC APC 1260-1650nm 0.9mm 2.0mm Low Insertion Loss
PLC Fiber Splitter 1x8 SC APC 1260-1650nm 0.9mm 2.0mm Low Insertion Loss
PLC Fiber Splitter 1x8 SC APC 1260-1650nm 0.9mm 2.0mm Low Insertion Loss
PLC Fiber Splitter 1x8 SC APC 1260-1650nm 0.9mm 2.0mm Low Insertion Loss
Specifications
Certification :
ISO 9001
MOQ :
10 Pieces
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
3-15 Days
Payment Terms :
30% deposit , Balance due within 7 days from date of shipment bill of lading
Supply Ability :
50000 Monthly Output
Place of Origin :
China
Brand Name :
JTX
Model Number :
JTX-SM-1/8-SC/APC
Product Name :
PLC Fiber Splitter
Fiber Type :
Single Mode
Operating Temperature :
-40~+85 degree
Diameter :
0.9mm/2.0mm/3.0mm
Operating Wavelength :
1260~1650
Connector type :
SC/FC/LC/ST
Return Loss :
55/50
Feature :
High Durability/Mechanical
Connector :
SC/APC/UPC
fiber type :
SC/APC
Description

High Durability 1x8 SC APC PLC Fiber Splitter 1260~1650 Low Insertion Loss

Introduction

PLC Fiber optic splitter is a micro-optical element using photolithographic techniques to form optical waveguide at medium or semiconductor substrate for realizing branch distribution function.

Fiber splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x32 and 1x64 configurations with single mode or multimode fiber and we offer all type connectors of pre-connectorized like SC, FC, ST, LC etc.

Characteristics:

  1. Optional Split Ratio 20/80, 40/60...(50/50 as default.)
  2. Compact for small application areas like in closure or splice trays
  3. Wide operating wavelength and temperature range;
  4. Excellent Environmental & Mechanical Stability
  5. Qualified Under Telcordia GR-1221 and GR-1209
  6. Steel tube-compact size
  7. Low insertion loss and PDL
  8. Low polarization dependent loss
  9. High Return Loss

  10. High channel number;

  11. Compact size;

  12. High reliability;

  13. Excellent channel uniformity;

Application:

FTTX (FTTP, FTTH, FTTN, FTTC)

Passive Optical Networks (PON)

Amplifying, Monitoring System

Test Equipments

Order Information

Local Area Networks (LAN)

CATV Systems

PLC Fiber Splitter 1x8 SC APC 1260-1650nm 0.9mm 2.0mm Low Insertion Loss

PLC Fiber Splitter 1x8 SC APC 1260-1650nm 0.9mm 2.0mm Low Insertion Loss

PLC Fiber Splitter 1x8 SC APC 1260-1650nm 0.9mm 2.0mm Low Insertion Loss

PLC Fiber Splitter 1x8 SC APC 1260-1650nm 0.9mm 2.0mm Low Insertion Loss

Specifications:
Type 1x2 1×4 1×8 1×16 1×32 1×64 2x2 2×4 2×8 2×16 2×32 2×64
Operating wavelength(nm) 1260-1650
Insertion loss (dB) Typical 4.1 7.2 10 13 16.5 20.5 4 7.3 10.5 13.5 17 20.5
Maximum 4.3 7.5 10.7 13.9 17.2 22 4.2 7.6 10.8 14 17.5 22
Uniformity (dB) Typical 0.4 0.5 0.6 1 1 2.5 0.6 0.8 1 1.5 2 2
Maximum 0.6 0.8 1 1.4 1.6 2.5 0.8 1 1.5 2 2.5 2.5
Polarization Dependent Loss (dB) Typical 0.1 0.1 0.15 0.2 0.2 0.2 0.1 0.1 0.1 0.2 0.2 0.2
Maximum 0.2 0.3 0.3 0.3 0.3 0.3 0.2 0.2 0.3 0.4 0.4 0.4
Wavelength dependent loss (dB) Typical 0.1 0.1 0.15 0.3 0.3 0.1 0.1 0.1 0.1 0.1 0.2 0.2
Maximum 0.2 0.3 0.3 0.5 0.5 0.2 0.2 0.2 0.3 0.5 0.5 0.5
Return loss (dB) Minimum ≥50
Directivity (dB) Minimum ≥50
Operating temperature (℃) -40℃ to 85℃
Storage temperature (℃) -40℃ to 85℃
Optical fiber type SMF-28 Or customer required
Optical fiber length (m) 1M or customize

We can produce many serials of PLC splitters including:
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with following package
Bare Fiber Optic Coupler
Blockless Fiber Optical Splitter
ABS box Fiber Optic Splitter
Pallet Type Optical Fiber Splitter
Rack Mount Optical Fiber Coupler
Wall Mount Fiber Optic Coupler

Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have detail requirements.

2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order quantity.

3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on customer's account.

4. How about your price?
Otop: We are supplying products with very competitive price based on good performance.

5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce
