Wdm Fiber Splitter 1X4 SC UPC FTTX High Reliability /Excellent Stability
Wdm Fiber Splitter 1X4 SC UPC FTTX High Reliability /Excellent Stability
Wdm Fiber Splitter 1X4 SC UPC FTTX High Reliability /Excellent Stability
Wdm Fiber Splitter 1X4 SC UPC FTTX High Reliability /Excellent Stability
Wdm Fiber Splitter 1X4 SC UPC FTTX High Reliability /Excellent Stability
Wdm Fiber Splitter 1X4 SC UPC FTTX High Reliability /Excellent Stability
Wdm Fiber Splitter 1X4 SC UPC FTTX High Reliability /Excellent Stability
Wdm Fiber Splitter 1X4 SC UPC FTTX High Reliability /Excellent Stability
Wdm Fiber Splitter 1X4 SC UPC FTTX High Reliability /Excellent Stability
Wdm Fiber Splitter 1X4 SC UPC FTTX High Reliability /Excellent Stability
Specifications
Certification :
ISO 9001
MOQ :
10 Pieces
Price :
Negotiable
Packaging Details :
Cartoon
Delivery Time :
7-10 Days
Payment Terms :
30% deposit , Balance due within 7 days from date of shipment bill of lading
Supply Ability :
50000 Monthly Output
Place of Origin :
China
Product Name :
Fiber Cable Splitter
Advantages :
High stability and reliability
Application :
Optical Signal Distribution
Shipping :
Safety
Connectors :
SC/LC/FC/ST /MTRJ/MPO Or Other
Type :
Single-mode, Multi-mode
fiber type :
1X4 SC UPC
polishing :
APC UPC
operating wavelength :
1260nm-1650nm
diameter :
0.9mm 2.0mm 3.0mm
length :
1.5m，can be customized
Description

Wdm Fiber Splitter 1X4 SC UPC FTTX High Reliability /Excellent Stability

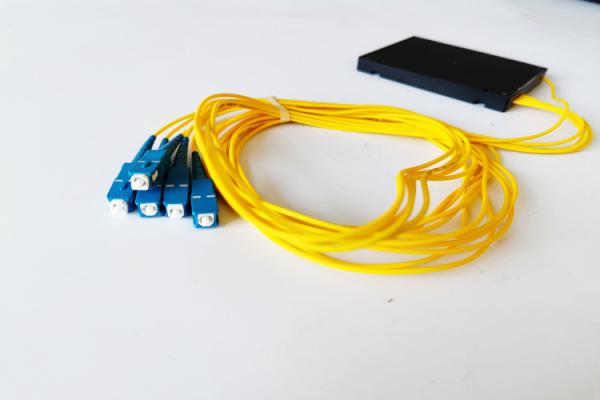

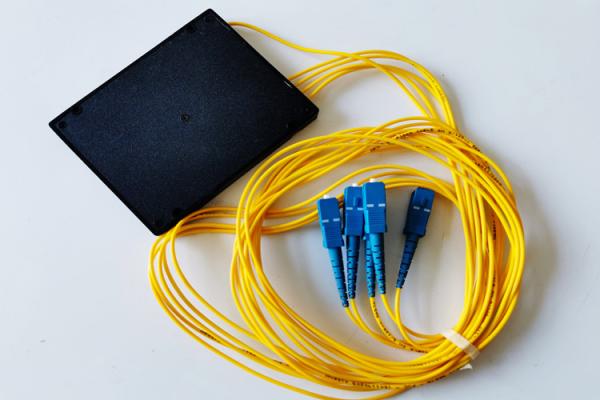

PRODUCT SHOW:

Wdm Fiber Splitter 1X4 SC UPC FTTX High Reliability /Excellent StabilityWdm Fiber Splitter 1X4 SC UPC FTTX High Reliability /Excellent Stability

Description of Cable Splitter

Cable splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. Siemax’ PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.

Features

Various coupling ratio
High stability and reliability
Compact Size
Low insertion loss
Low excess loss
Low PDL

Applications:

FTTX (FTTB, FTTH, FTTC) Systems

Passive Optical Network (PON)

Cable Television (CATV)

Optical Signal Distribution

Advantages
1. Guaranteed high quality products
2. Fast delivery speed
3. Safety Shipping
4. Quick Response within 24hours

Our service:

We could print your company name on the cable.

Standard and customized OEM products from small to large quantity are welcome.

Compliance with global environmental industry with RoHS and SGS standards.

All products are 100% fully tested by our technical expertise.

Specification:

1 1xN (with connector)
(Number of Channels) 1×2 1×4 1×8 1×16 1×32 1×64 2×2 2×4 2×8 2×16 2×32 2×64
(Operating Wavelenth) 1260 to 1650
P Level Insertion Loss 4 7.4 10.5 13.7 17 20.3 4.4 7.6 10.8 14.1 17.4 20.7
S Level Insertion Loss 4.2 7.6 10.7 14 17.3 20.7 4.6 7.9 11.2 15 18.1 21.7
(Uniformity) 0.4 0.6 0.8 1 1.2 1.6 0.8 1 1.2 1.5 1.8 2
(PDL) 0.2 0.3 0.3 0.3 0.3 0.5 0.3 0.3 0.3 0.3 0.3 0.5
(Return Loss) more than 55
(Directivity) more than 55
(Type of fiber) ITU G657A
(Operating temperature) -40 to 85
PLC
Splitte		 Port Type Cable Type Fiber Length Connector Type Package Style
1*4
1*8
1*16
1*32
1*64
2*32
Others Specify		 0.25mm Bare fiber
Ribbon Fiber
Fan-out with 0.9mm Loose Tube
2.0mm Cable
3.0mm Cable		 1 meter
1.5 meter
specify		 FC/APC
FC/PC
SC/APC
SC/PC
ST/UPC
LC/APC
Others Specify		 Stainless steel sleeve
Plastic Module
19 1U Rack Mount
Others Specify

Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have detail requirements.

2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order quantity.

3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on customer's account.

4. How about your price?
Otop: We are supplying products with very competitive price based on good performance.

5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce
