1X32 SC APC Good Uniformity Fiber Cable Splitter Low Insertion Loss
1X32 SC APC Good Uniformity Fiber Cable Splitter Low Insertion Loss
1X32 SC APC Good Uniformity Fiber Cable Splitter Low Insertion Loss
1X32 SC APC Good Uniformity Fiber Cable Splitter Low Insertion Loss
1X32 SC APC Good Uniformity Fiber Cable Splitter Low Insertion Loss
1X32 SC APC Good Uniformity Fiber Cable Splitter Low Insertion Loss
Specifications
Certification :
ISO 9001
MOQ :
10 Pieces
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
7-10 Days
Payment Terms :
30% deposit , Balance due within 7 days from date of shipment bill of lading
Supply Ability :
50000 Monthly Output
Place of Origin :
China
Brand Name :
JIE TAI XIN
Name :
Fiber Cable Splitter
Feature :
Excellent directivity
Application :
FTTx systems, PON and CATV networks
Shipping :
Safety
Connector type :
SC/LC/FC/ST /MTRJ/MPO Or Other
Type :
Single-mode, Multi-mode
Connector :
1X32 SC APC
polishing :
APC UPC
Operating   Wavelenth :
1260nm-1650nm
Operating   temperature :
-40~ + 85
diameter :
2.0mm 3.0mm
length :
1.5m
Description

Good Uniformity Fiber Cable Splitter 1X32 SC APC Low Insertion Loss

Fiber Optic Splitter Introduction


Optical coupler is an optical device that combines or splits power from optical fibers.
Optical splitter divides light from a single fiber into two or more fiber channels.

Fiber optic PLC splitters offer excellent performances over wide wavelength range (1260~1620nm) at a temperature range
of -40~+85C. They feature low insertion loss and PDL, high return loss and directivity, and very good uniformity.
Applications include FTTx systems, PON and CATV networks.

According to application occasions, PLC splitter can be divided into,
Bare Device type PLC splitter,
Mini Module PLC splitter,
Modular (ABS Case) type PLC splitter,
Slot Box Type PLC Splitter,
ODF Tray type PLC splitter,
and Rack-mount type PLC splitter.

Features:

  1. Excellent directivity
  2. High environmental and mechanical stability
  3. Good channel-to-channel uniformity
  4. High cost-effectiveness
  5. 1 x Input Fibers
  6. 32 x Output Fibers
  7. Low Polarization Dependent Loss
  8. Excellent Environmental Stability
  9. Low Insertion Loss

Applications:

  1. Fiber optical communication system
  2. Fiber optical sensors
  3. CATV System
  4. LAN System
  5. WAN System

Environmental requirement
- Working temperature : -40℃~+85℃
- Relative humidity : ≤85% (+30℃)
- Atmospheric pressure : 70Kpa~106Kpa
- Main technical datasheet
- Insertion loss : ≤0.2dB
- UPC return loss : ≥50dB
- APC return loss : ≥60dB
- Life of insertion and extraction : >1000 times

Specification:

1 1xN (with connector)
(Number of Channels) 1×2 1×4 1×8 1×16 1×32 1×64 2×2 2×4 2×8 2×16 2×32 2×64
(Operating Wavelenth) 1260 to 1650
P Level Insertion Loss 4 7.4 10.5 13.7 17 20.3 4.4 7.6 10.8 14.1 17.4 20.7
S Level Insertion Loss 4.2 7.6 10.7 14 17.3 20.7 4.6 7.9 11.2 15 18.1 21.7
(Uniformity) 0.4 0.6 0.8 1 1.2 1.6 0.8 1 1.2 1.5 1.8 2
(PDL) 0.2 0.3 0.3 0.3 0.3 0.5 0.3 0.3 0.3 0.3 0.3 0.5
(Return Loss) more than 55
(Directivity) more than 55
(Type of fiber) ITU G657A
(Operating temperature) -40 to 85
PLC
Splitte		 Port Type Cable Type Fiber Length Connector Type Package Style
1*4
1*8
1*16
1*32
1*64
2*32
Others Specify		 0.25mm Bare fiber
Ribbon Fiber
Fan-out with 0.9mm Loose Tube
2.0mm Cable
3.0mm Cable		 1 meter
1.5 meter
specify		 FC/APC
FC/PC
SC/APC
SC/PC
ST/UPC
LC/APC
Others Specify		 Stainless steel sleeve
Plastic Module
19 1U Rack Mount
Others Specify

PRODUCT SHOW:

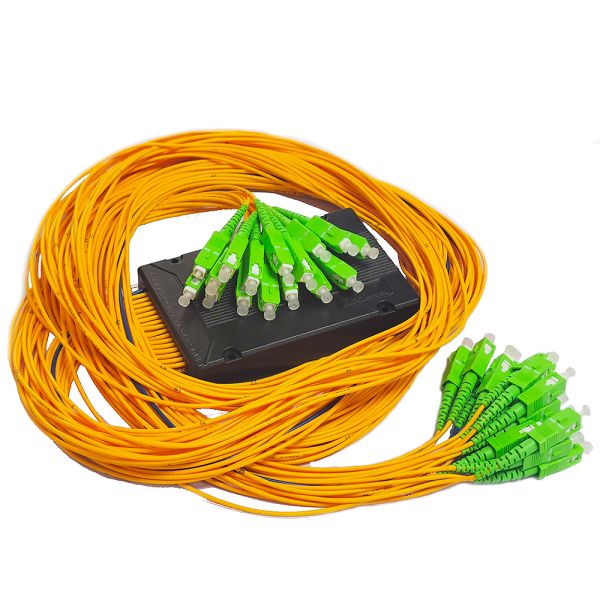

1X32 SC APC Good Uniformity Fiber Cable Splitter Low Insertion Loss

Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have detail requirements.

2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order quantity.

3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on customer's account.

4. How about your price?
Otop: We are supplying products with very competitive price based on good performance.

5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce
