1X2 SC APC Fiber Cable Splitter Operating Wavelength 1260mm-1650mm
1X2 SC APC Fiber Cable Splitter Operating Wavelength 1260mm-1650mm
1X2 SC APC Fiber Cable Splitter Operating Wavelength 1260mm-1650mm
1X2 SC APC Fiber Cable Splitter Operating Wavelength 1260mm-1650mm
1X2 SC APC Fiber Cable Splitter Operating Wavelength 1260mm-1650mm
1X2 SC APC Fiber Cable Splitter Operating Wavelength 1260mm-1650mm
Specifications
Certification :
ISO 9001
MOQ :
10 Pieces
Price :
Negotiable
Packaging Details :
Cartoon
Delivery Time :
7-10 Days
Payment Terms :
30% deposit , Balance due within 7 days from date of shipment bill of lading
Supply Ability :
50000 Monthly Output
Place of Origin :
China
Keyword :
Fiber Cable Splitter
Feature :
High cost-effectiveness
Usage :
Fiber optical sensors
Service :
OEM
Connectors :
SC/LC/FC/ST /MTRJ/MPO Or Other
Type :
Single-mode, Multi-mode
Operation Temperature :
-40~85
type :
1x2 SC APC
polishing :
APC UPC
operating wavelength :
1260mm-1650mm
length :
1.5m，can be customized
Description

Excellent Directivity Fiber Cable Splitter1X2 SC APC Operating Wavelength 1260mm-1650mm



Fiber Optic Splitter Introduction:
Optical coupler is an optical device that combines or splits power from optical fibers.
Optical splitter divides light from a single fiber into two or more fiber channels.
Fiber optic PLC splitters offer excellent performances over wide wavelength range (1260~1650nm) at a temperature range
of -40~+85C. They feature low insertion loss and PDL, high return loss and directivity, and very good uniformity.
Applications include FTTx systems, PON and CATV networks.
According to application occasions, PLC splitter can be divided into,
Bare Device type PLC splitter,
Mini Module PLC splitter,
Modular (ABS Case) type PLC splitter,
Slot Box Type PLC Splitter,
ODF Tray type PLC splitter,
and Rack-mount type PLC splitter.

Features:

  1. Excellent directivity
  2. High environmental and mechanical stability
  3. Good channel-to-channel uniformity
  4. High cost-effectiveness


Fiber Optic Splitter Specification:

PLC
Splitte		 Port Type Cable Type Fiber Length Connector Type Package Style
1*4
1*8
1*16
1*32
1*64
2*32
Others Specify		 0.25mm Bare fiber
Ribbon Fiber
Fan-out with 0.9mm Loose Tube
2.0mm Cable
3.0mm Cable		 1 meter
1.5 meter
specify		 FC/APC
FC/PC
SC/APC
SC/PC
ST/UPC
LC/APC
Others Specify		 Stainless steel sleeve
Plastic Module
19 1U Rack Mount
Others Specify
ITEM 1X2 1X4 1X8 1X16 1X32 1X64 2X2 2X4 2X8 2X16 2X32
Operating Wavelength(nm) 1260~1650
Insertion Loss (dB) Max. ≤4.0 ≤7.0 ≤10.4 ≤13.5 ≤17.0 ≤20.5 ≤4.0 ≤7.3 ≤10.6 ≤13.9 ≤17.2
Loss Uniformity (dB) Max. ≤0.6 ≤0.6 ≤0.8 ≤1.2 ≤1.5 ≤1.8 ≤0.8 ≤1.0 ≤1.0 ≤1.5 ≤2.0
PDL (dB) Max. ≤0.2 ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.2 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Directivity (dB) ≥55
Fiber Length (m) 1.2±0.1 , (Other Requirements Can Be Provide)
Fiber Type Corning SMF-28e, (Other Requirements Can Be Provide)
Operation Temperature℃ -40~+85


PRODUCT SHOW:

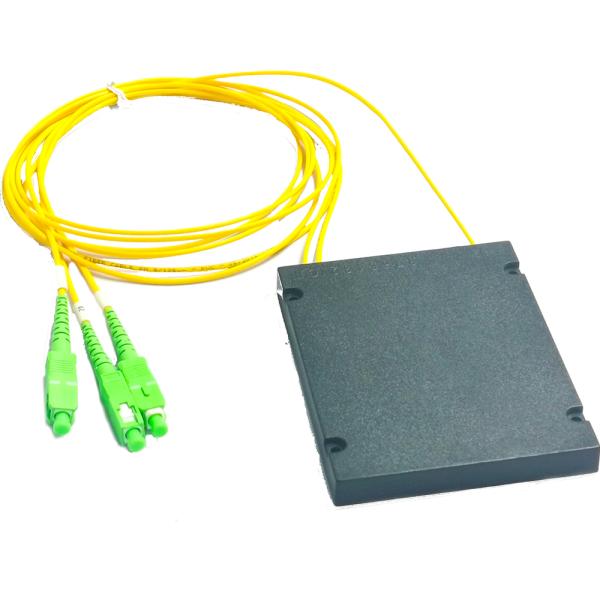

1X2 SC APC Fiber Cable Splitter Operating Wavelength 1260mm-1650mm

Question and answer:

1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have detail requirements.

2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order quantity.

3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on customer's account.

4. How about your price?
Otop: We are supplying products with very competitive price based on good performance.

5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce according to your requirment and description;
