Specifications
Certification :
ISO 9001
MOQ :
10 Pieces
Price :
Negotiable
Packaging Details :
Cartoon
Delivery Time :
7-10 Days
Payment Terms :
30% deposit , Balance due within 7 days from date of shipment bill of lading
Supply Ability :
50000 Monthly Output
Item :
Fiber Cable Splitter
Features :
Total enclosed structure
Application :
Passive optical networks (PON)
Operation Temperature :
-40~85
Connectors :
SC/LC/FC/ST /MTRJ/MPO Or Other
Characteristic :
wet proof , waterproof
operating wavelength :
1260nm-1650nm
fiber type :
1x8SC APC
diameter :
1.8mm 2.0mm 3.0mm
length :
can be customized
Description

1x8 SC APC Fiber Cable Splitter compact assembly G.657A2 with 1.8mm

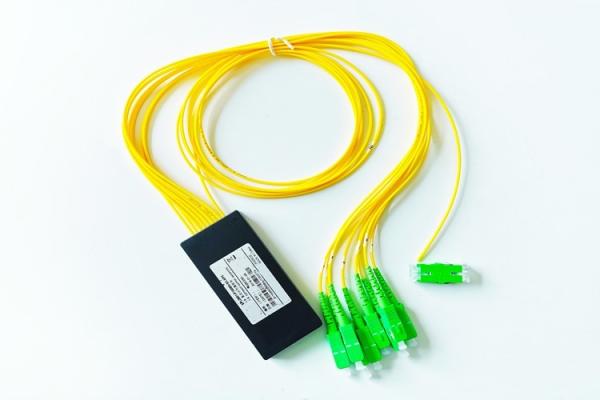

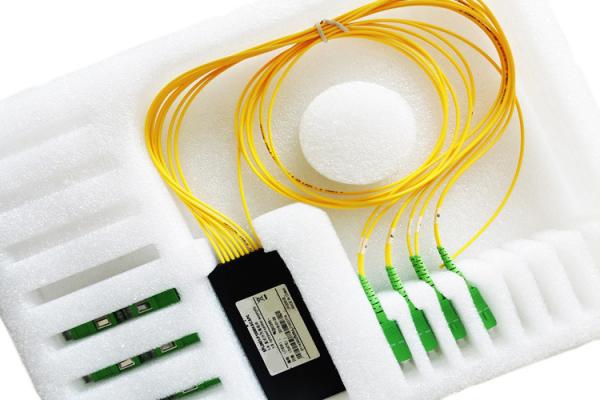

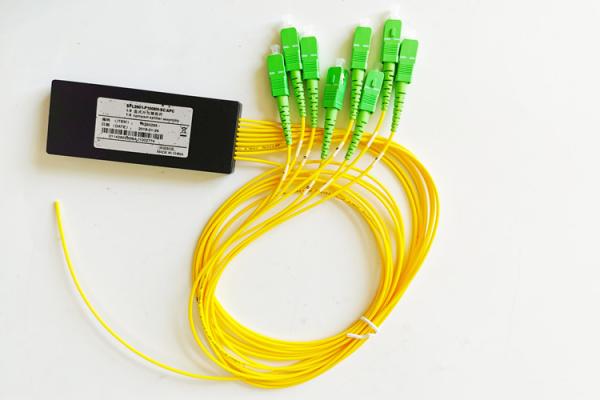

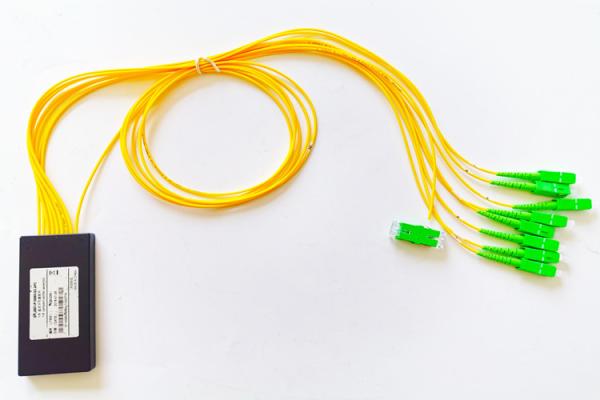

PRODUCT SHOW:

1x8 SC APC Fiber Cable Splitter compact assembly G.657A2 with 1.8mm

1:8 Optical Splitter Test Report
Bandwidth(nm): 1260-1650 CPC: 14260295
Package Size (mm): 100x45x10(LxWxH) Model: SPL2601-P1008M-SC/APC
Pigtail Type: G.657A2 with 1.8 mm S/N
Pigtail Length (m): INPUT:2.5+0.1/-0
OUTPUT:0.53+0.02
Connector Type: INPUT:NONE
OUTPUT:SC/APC		 Date: 2018-01-26
Input Output IL(dB)
@1310NM		 IL(dB)
@1550NM		 PDL(dB)
@1310NM		 PDL(dB)
@1550NM		 UNIFORMITY
(dB)		 RL(dB)
@1310		 RL(dB)
@1550
PORT1 PORT1 9.73 9.60 0.19 0.16 ≤0.8 63 61
PORT2 9.95 9.71 0.14 0.18 59 64
PORT3 9.87 9.76 0.16 0.14 61 61
PORT4 10.15 9.93 0.17 0.12 60 64
PORT5 10.07 9.84 0.16 0.06 64 62
PORT6 10.08 9.87 0.15 0.19 62 60
PORT7 10.03 9.79 0.13 0.18 62 63
PORT8 10.16 9.93 0.16 0.08 63 62

Description:

The fiber optic splitter is one of the most important passive devices in the optical fiber link, is optical fiber tandem device with many input terminals and many output terminals, especially applicable to a passive optical network (EPON.GPON.BPON.FTTX.FTTH etc.) to connect the MDF and the terminal equipment and to achieve the branching of the optical signal.

Feature:

• Total enclosed structure, be in nice shape
• Material: PC+ABS, wet proof , waterproof, anti--aging
• Clamping for feeder cable and drop cable, fiber splicing , fixation, storage, distribution...all in one
• Cable, pigtail , patch cord are running through own path without disturbing each other, cassette type SC adapter installation, easy to maintain and extend the capacity
• Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

Application:

The distribution box is used as a terminal point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be done in this box ,and meanwhile it provide solid protection and management for the FTTX net work building.

Specification:

1 1xN (with connector)
(Number of Channels) 1×2 1×4 1×8 1×16 1×32 1×64 2×2 2×4 2×8 2×16 2×32 2×64
(Operating Wavelenth) 1260 to 1650
P Level Insertion Loss 4 7.4 10.5 13.7 17 20.3 4.4 7.6 10.8 14.1 17.4 20.7
S Level Insertion Loss 4.2 7.6 10.7 14 17.3 20.7 4.6 7.9 11.2 15 18.1 21.7
(Uniformity) 0.4 0.6 0.8 1 1.2 1.6 0.8 1 1.2 1.5 1.8 2
(PDL) 0.2 0.3 0.3 0.3 0.3 0.5 0.3 0.3 0.3 0.3 0.3 0.5
(Return Loss) more than 55
(Directivity) more than 55
(Type of fiber) ITU G657A
(Operating temperature) -40 to 85
PLC Splitte Port Type Cable Type Fiber Length Connector Type Package Style
1*4
1*8
1*16
1*32
1*64
2*32
Others Specify		 0.25mm Bare fiber
Ribbon Fiber
Fan-out with 0.9mm Loose Tube
2.0mm Cable
3.0mm Cable		 1 meter
1.5 meter
specify		 FC/APC
FC/PC
SC/APC
SC/PC
ST/UPC
LC/APC
Others Specify		 Stainless steel sleeve
Plastic Module
19 1U Rack Mount
Others Specify

Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have detail requirements.

2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order quantity.

3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on customer's account.

4. How about your price?
Otop: We are supplying products with very competitive price based on good performance.

5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce
