Good Uniformity Active Optical Splitter , 2 Way Optical Splitter For Telecommunications
Good Uniformity Active Optical Splitter , 2 Way Optical Splitter For Telecommunications
Specifications
Certification :
ISO 9001
MOQ :
10 Pieces
Price :
Negotiable
Packaging Details :
Cartoon
Delivery Time :
7-10 Days
Payment Terms :
30% deposit , Balance due within 7 days from date of shipment bill of lading
Supply Ability :
50000 Monthly Output
Name :
Fiber Cable Splitter
Features :
Uniform Power Splitting
Application :
FTTX (FTTP, FTTH, FTTN, FTTC)
Port :
1*2, 2*2, 1*4, 2*4, 1*8, 2*8, 1*16, 2*16, 1*32, 2*32, 1*64, 2*64
Connector Type :
SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC
Package Style :
ABS Module
Description

Good Uniformity Active Optical Splitter , 2 Way Optical Splitter For Telecommunications

Description

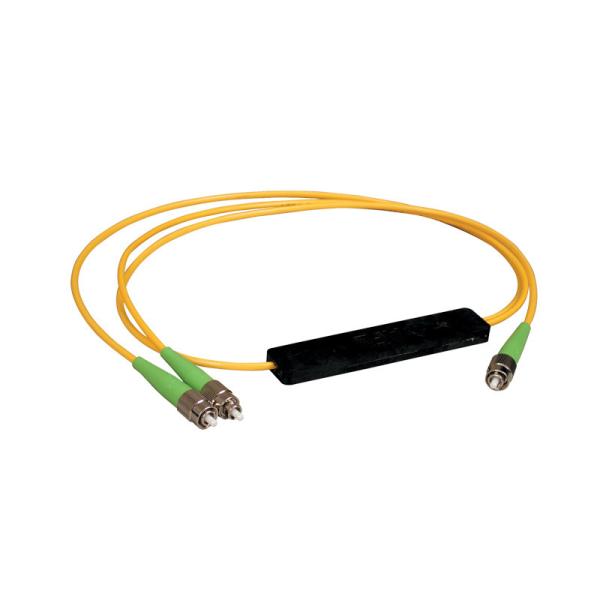

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.

Application

• FTTx
• CATV Systems
• PON Networks
• Telecommunications

Specification

Port Configration 1X2 1X4 1X8 1X16 1X32 1X64
Operating Wavelength (nm) 1260 ~ 1650
Insertion Loss(dB) Typical 3.5 6.8 10.2 13.1 16.2 20.2
Max 4.0 7.4 10.5 13.5 16.9 21.0
Channel Uniformity (dB) 0.5 0.7 1.0 1.4 1.8 2.0
PDL (dB) 0.2 0.2 0.3 0.3 0.3 0.4
WDL (dB) 0.3 0.3 0.3 0.5 0.5 0.8
TDL (-40ºC ~ 85ºC )(dB) 0.5 0.5 0.5 0.8 0.8 1.0
Dimensions forFan-out (mm) 60(L)X7(W)X4(H) 60X12X4 80(L)X20(W)X6(H)
RL (dB) > 55dB
Directivity (dB) > 55dB
Fiber Type G652D
Operating Temperature Range -40ºC ~ 85ºC
