Specifications
Certification :
ISO 9001
MOQ :
10 Pieces
Price :
Negotiable
Packaging Details :
Cartoon
Delivery Time :
7-10 Days
Payment Terms :
30% deposit , Balance due within 7 days from date of shipment bill of lading
Supply Ability :
50000 Monthly Output
Place of Origin :
China
Name :
Fiber Cable Splitter
Features :
Uniform Power Splitting
Application :
FTTX System
Port :
1*2, 2*2, 1*4, 2*4, 1*8, 2*8, 1*16, 2*16, 1*32, 2*32, 1*64, 2*64
Connector Type :
SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC
Feature :
Excellent Mechanical
fiber type :
2x32 FC UPC
operating wavelength :
1260nm-1650nm
Operating Temperature :
-40~+85
Description

2X32 FC UPC PLC Fiber Splitter 1260NM to1650NM Excellent Environmental Stability

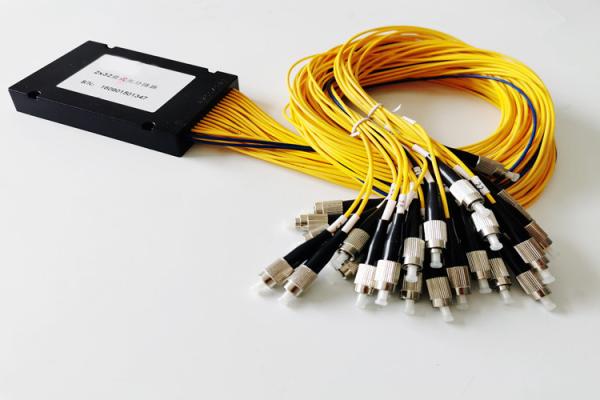

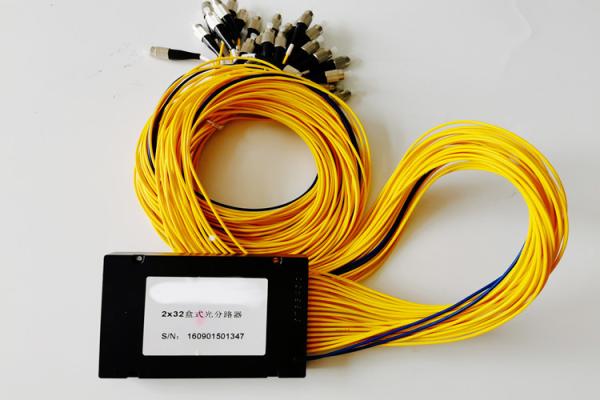

PRODUCT SHOW:

2X32 FC UPC PLC Fiber Splitter 1260NM to1650NM Excellent Environmental Stability

Description

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.

Features:

  1. Low Insertion loss
  2. Wide Operating Wavelength: From 1260nm to 1650nm
  3. Excellent Environmental & Mechanical Stability
  4. High Reliability and Stability
  5. Low PDL (Polarization Dependent Loss)
  6. Compact Design

Applications:

  1. FTTX (FTTB, FTTH, FTTC) Systems
  2. Passive Optical Network (PON)
  3. Cable Television (CATV)
  4. Optical Signal Distribution

Our service:

  1. We could print your company name on the cable.
  2. Standard and customized OEM products from small to large quantity are welcome.
  3. Compliance with global environmental industry with RoHS and SGS standards.
  4. All products are 100% fully tested by our technical expertise.

Specification:

1 x N
Parameter Unit 1 x 2 1 x 4 1 x 8 1 x 16 1 x 32 1 x 64
Insertion Loss Max. dB 3.8 7.0 10.4 13.9 17.2 22.0
Channel Uniformity Max. dB 0.6 0.5 0.5 1.4 1.6 2.5
Polarization Dependent Loss Max. dB 0.2 0.3 0.3 0.3 0.3 0.3
Wavelength Dependent Loss Max. dB 0.3 0.3 0.3 0.3 0.3 0.3
Temperature Dependent Loss Max. dB 0.5 0.5 0.5 0.5 0.5 0.5
Connector Dependent Loss Max. dB 0.2 0.2 0.2 0.2 0.2 0.2
Operating Wavelength Min.-Max nm 1250 ~ 1650
Return Loss Min. dB 55
Directivity Min. dB 55
Operating Temperature °C -40 ~ + 85
Storage Temperature °C -40 ~ + 85
Maximum Input Power Max. mW 500
Fiber Type - ITU G.652D or G.657A
2 x N
Parameter Unit 2 x 2 2 x 4 2 x 8 2 x 16 2 x 32 2 x 64
Insertion Loss Max. dB 4.0 7.3 10.7 14 17.5 22.5
Channel Uniformity Max. dB 0.8 1.0 1.0 1.5 1.8 3.0
Polarization Dependent Loss Max. dB 0.2 0.3 0.3 0.3 0.3 0.4
Wavelength Dependent Loss Max. dB 0.3 0.3 0.3 0.3 0.3 0.3
Temperature Dependent Loss Max. dB 0.5 0.5 0.5 0.5 0.5 0.5
Connector Dependent Loss Max. dB 0.2 0.2 0.2 0.2 0.2 0.2
Operating Wavelength Min.-Max. nm 1250 ~ 1650
Return Loss Min. dB 55
Directivity Min. dB 55
Operating Temperature °C -40 ~ + 85
Storage Temperature °C -40 ~ + 85
Maximum Input Power Max. mW 500
Fiber Type ITU G.652D or G.657A

Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have detail requirements.

2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order quantity.

3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on customer's account.

4. How about your price?
Otop: We are supplying products with very competitive price based on good performance.

5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce
