JTX-LC -LC APC UPC 4 core Fiber Coupler Adapter Standard Flange
JTX-LC -LC APC UPC 4 core Fiber Coupler Adapter Standard Flange
JTX-LC -LC APC UPC 4 core Fiber Coupler Adapter Standard Flange
JTX-LC -LC APC UPC 4 core Fiber Coupler Adapter Standard Flange
JTX-LC -LC APC UPC 4 core Fiber Coupler Adapter Standard Flange
JTX-LC -LC APC UPC 4 core Fiber Coupler Adapter Standard Flange
JTX-LC -LC APC UPC 4 core Fiber Coupler Adapter Standard Flange
JTX-LC -LC APC UPC 4 core Fiber Coupler Adapter Standard Flange
JTX-LC -LC APC UPC 4 core Fiber Coupler Adapter Standard Flange
JTX-LC -LC APC UPC 4 core Fiber Coupler Adapter Standard Flange
Specifications
Brand Name :
JIE TAI XIN
Model Number :
JT-5209-4LCLC -04
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 Pieces
Price :
Negotiable
Payment Terms :
30% deposit , Balance due within 7 days from date of shipment bill of lading
Supply Ability :
50000 Monthly Output
Delivery Time :
7-10 Days
Packaging Details :
Carton
name :
Fiber Optic Adapter
Adapter Type: :
LC-LC
Fiber Type :
Single Mode/Multi Mode
Application :
FTTH FTTB Network
polishing :
UPC/APC
Operating temperature :
-40℃ to 85℃
Wavelength :
1310nm 1550nm
Adapter color :
customize
core :
4
Description

LC to LC APC UPC 4ports fiber coupler adapter standard flange

Description:

Optical adapter is a fiber optic connecting part on the activities of linking components. The complete series of products, including FC, SC, ST, LC, MTRJ.

fiber optic adapter or coupler is a special connector designed to mate or connect two ends of a fiber optic cable with high precision. The adapter uses a simple design: the ends of two separate fiber optic cables with fiber optic connectors fit into two slots opposite each other. The slots are designed to precisely align the two ends so that there is minimal to no signal loss.SUNET'S Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber opticcables or fiber optic connectors between two fiber optic lines.

Features:

Low insertion loss

Simplex or duplex

Good exchangeability and repeatability

High prcision alignment

Durability >1000 times
Use connect PC,UPC,SPC,APC polished SC Fiber Optic Connectors

Application:

CATV networks

Local Area Network

Instrumentation

Telecommunication

Adapter Panel

ODF Frame

Project Specifications
Applicable connector type FC,ST,SC,LC,MU,MTRJ,ST-SC,FC-SC,ST-FC
Connector fiber type Single mode Multimode
Test wavelength 1310nm,1550nm 850nm,1300nm
Insertion loss Typical value: ≤0.15dB
Maximum value: ≤0.20dB		 Typical value: ≤0.15dB
Maximum value: ≤0.20dB
Repeatability ≤0.10dB
Interchangeability ≤0.20dB
Pluggable performance Change in loss after 1000 insertions
and removals≤0.20dB
Number of channels Single core, dual core, 4 core
Frame material Metal or plastic
Sleeve material Ceramic or metal
Operating temperature -20℃to +70℃
storage temperature -40℃to +85℃

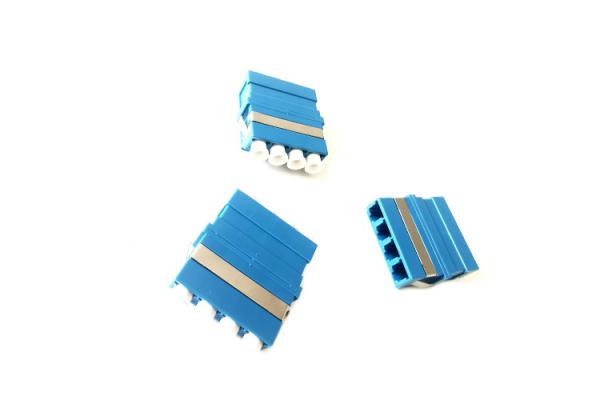

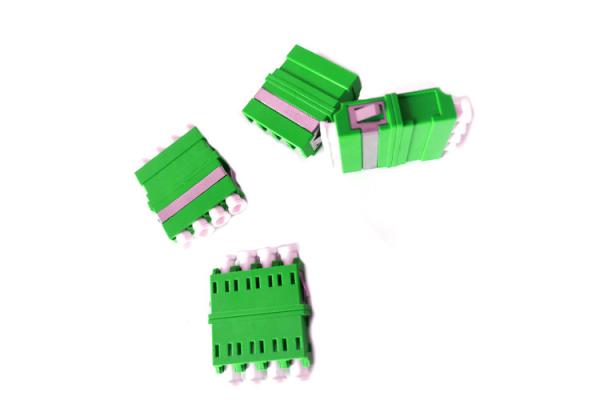

product show:

JTX-LC -LC APC UPC 4 core Fiber Coupler Adapter Standard Flange

JTX-LC -LC APC UPC 4 core Fiber Coupler Adapter Standard Flange

JTX-LC -LC APC UPC 4 core Fiber Coupler Adapter Standard Flange

JTX-LC -LC APC UPC 4 core Fiber Coupler Adapter Standard Flange

Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have detail requirements.

2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order quantity.

3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on customer's account.

4. How about your price?
Otop: We are supplying products with very competitive price based on good performance.

5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce
