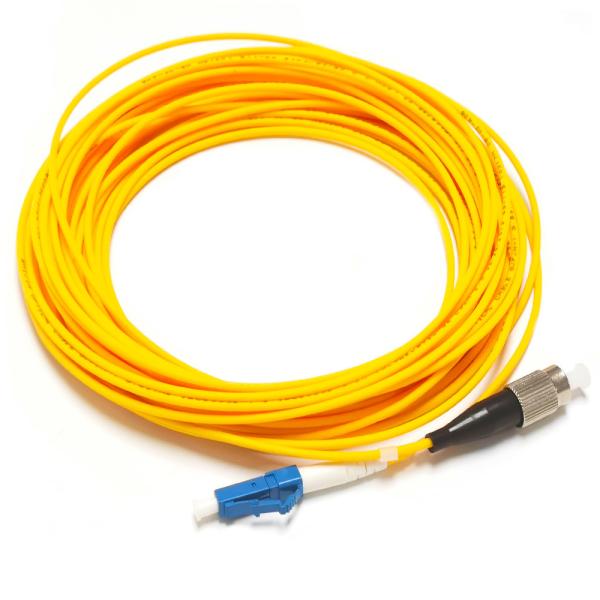

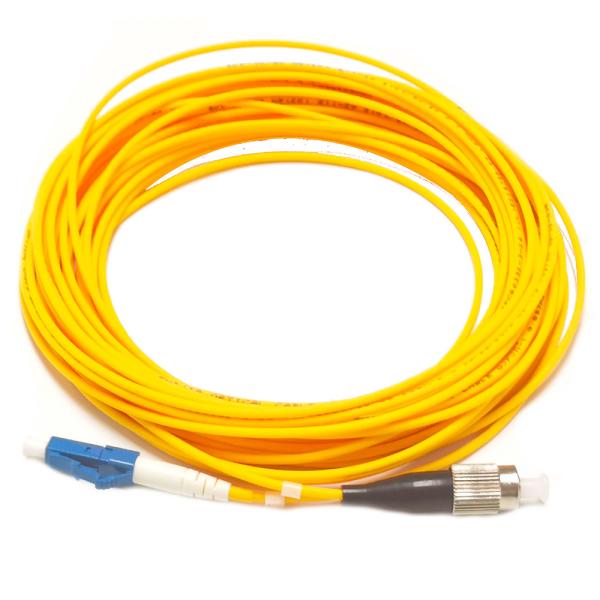

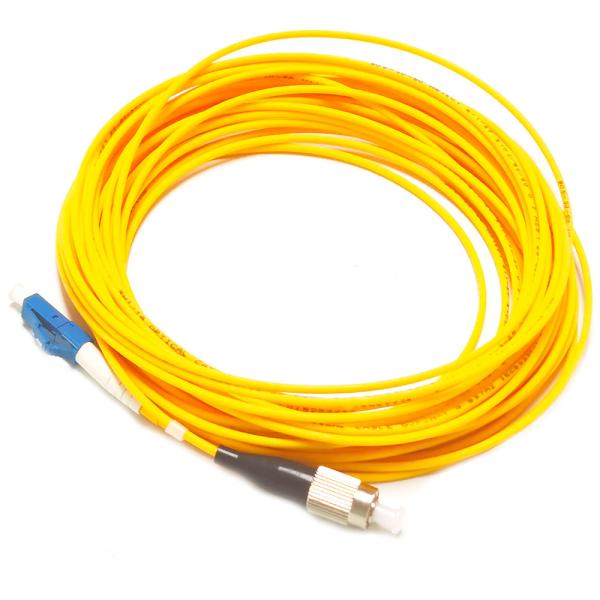

Single Mode LC UP- FC UPC Fiber Patch Cord 10m 20m length Cunstomized
Single Mode LC UP- FC UPC Fiber Patch Cord 10m 20m length Cunstomized
Single Mode LC UP- FC UPC Fiber Patch Cord 10m 20m length Cunstomized
Single Mode LC UP- FC UPC Fiber Patch Cord 10m 20m length Cunstomized
Single Mode LC UP- FC UPC Fiber Patch Cord 10m 20m length Cunstomized
Single Mode LC UP- FC UPC Fiber Patch Cord 10m 20m length Cunstomized
Single Mode LC UP- FC UPC Fiber Patch Cord 10m 20m length Cunstomized
Single Mode LC UP- FC UPC Fiber Patch Cord 10m 20m length Cunstomized
Specifications
Brand Name :
JIE TAI XIN
Model Number :
JT-8009-SMLFU-14
Certification :
ISO 9001
Place of Origin :
China
MOQ :
10 Pieces
Price :
Negotiable
Payment Terms :
30% deposit , Balance due within 7 days from date of shipment bill of lading
Supply Ability :
50000 Monthly Output
Delivery Time :
7-10 Days
Packaging Details :
Carton
Item :
Fiber Optic Patch Cable
fiber Type :
LC to FC
Cable :
simplex
Application :
Data communication network
Cable Length: :
10 meter 20 meter or customized
Characteristic :
Excellent repeatability
diameter :
2.0mm
polishing :
UPC
feature :
Low insertion loss and high return loss
cable type :
SM MM
mode :
single mode
Description

LC UPC fiber patch cord FC UPC single mode 2mm 10m 20m cunstomized

Products description:

Duplex fiber patch cords are produce according to international standard, which are available in OS1/OS2, OM1, OM2, OM3, OM4 or OM5 exceed requirements of ANSI/TIA-568.3-D.Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss.Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC and MTRJ with PC, UPC or APC polish types.

What is simplex patch cord?

Fiber patch cord, also known as fiber patch cable or fiber jumper cable, is a fiber optic cable terminated with fiber optic connectors on its both ends. ... Simplex fiber patch cord has one fiber and one connector on each end. Both single mode and multi-mode simplex optic patch cords have only one single strand of fiber.

Features
1. Compliant with international standard such as ANSI,Bellcore, TLA/EIA, IEC,also according with the industrial standards of Telecom in China
2. Realize the activelink of optic fiber transmission
3. Low insertion loss and high return loss
4. Excellent repeatability and interchangeability

Advantage
1. Professional manufacturer, 100% tested
2. Customers solutions in days, not weeks
3. Warmly services with careful attentions
4. Can provide your specific inquiry within 24 hours
5. Save much costs, bring more benefit for customer to expand business

Applications:
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Active device termination
Fiber optics data transmission(FODT)
Test Equipment
CATV

Parameter:

END FACE TYPE PC UPC AND APC
FIBER TYPE SM(G652 G655 G657) MM(OM1-OM5)
CABLE DIAMETER 0.9 2.0 3.0 OR CUSTOMIZED(SIMPLEX/ DUPLEX)
INSERTION LOSS ≤0.3DB
RETURN LOSS UPC SM≥50DB APC SM≥60DB PC MM≥35DB
REPEATABILITY ≤0.1
DURABILITY ≤0.2DB
INTERCHANGEABILITY ≤0.2DB
TENSILE STRENGTH 0.9MM＞5N 2.0/3.0＞70N
OPERATING TEMPERATURE -20~70
STORAGE TEMPERATURE -40~80
QUTER SHEATH MATERIAL PVC LSZH PU
BENDING RADIUS (STATIC/DYNAMIC) 10D/20D
LENGRTH CUSTOMIZED

Product type ST SC FC LC
Multimode Single mode Multimode Single mode Multimode Single mode Multimode Single mode
Insertion loss ≤0.2dB ≤0.2dB ≤0.2dB ≤0.2dB ≤0.2dB ≤0.2dB ≤0.2dB ≤0.2dB
Return Loss PC≥45dB PC≥45dB 
UPC50 dB 		 PC≥45dB
UPC≥50 dB 		 PC≥45dB
UPC≥50 dB		 PC≥45dB
UPC≥50 dB		 PC≥45dB
UPC≥50 dB		 PC≥45 dB
 UPC≥50 dB
 APC≥65 dB		 PC≥45 dB
 UPC≥50 dB
 APC≥65 dB
Repeatability ≤0.2dB ≤0.2dB ≤0.2dB ≤0.2dB ≤0.2dB ≤0.2dB ≤0.2dB ≤0.2dB
Interchangeability  ≤0.2dB ≤0.2dB ≤0.2dB ≤0.2dB ≤0.2dB ≤0.2dB ≤0.2dB ≤0.2dB
temperature range -40ºC~85 ºC -40ºC~85 ºC -40ºC~85 ºC -40ºC~85 ºC -40ºC~85 ºC -40ºC~85 ºC -40ºC~85 ºC -40ºC~85 ºC

Product Show:

Single Mode LC UP- FC UPC Fiber Patch Cord 10m 20m length Cunstomized

Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have detail requirements.

2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order quantity.

3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on customer's account.

4. How about your price?
Otop: We are supplying products with very competitive price based on good performance.

5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce
