Rubber Insulated Fiber Optic Cable Protection Sleeve / Wire Heat Shrink Tubing
Rubber Insulated Fiber Optic Cable Protection Sleeve / Wire Heat Shrink Tubing
Rubber Insulated Fiber Optic Cable Protection Sleeve / Wire Heat Shrink Tubing
Rubber Insulated Fiber Optic Cable Protection Sleeve / Wire Heat Shrink Tubing
Rubber Insulated Fiber Optic Cable Protection Sleeve / Wire Heat Shrink Tubing
Rubber Insulated Fiber Optic Cable Protection Sleeve / Wire Heat Shrink Tubing
Specifications
Brand Name :
ANSHI
Model Number :
AS-ODF-RSG
Certification :
ROHS, ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
500,000pcs/week
Product Name :
Fiber Splice Protection
Length :
40mm
Type :
Protection
Shrinking Temperature :
110~130 ℃
Radial shrinking rate :
＞50%
Axial Shrinking Rate :
＜10%
Description

60 mm Fusion Splice Protection Sleeves Fiber Optic Rubber-insulated Wire Heat Shrink Tubi

Specification
Shrinking Temperature (°C)
110 ~ 130
Radial Shrinking Rate (%)
>50
Axial Shrinking Rate (%)
<10
Low Temperature Property
No crackle at -55°C lasting 4 hours
Normal Operation Temperature (°C)
-55°C ~ + 135°C
Normal Operature Relative Humidity
≤95%
Spark- over Strength (kV/mm)
≥20
Tensile Strength (Mpa)
20
Loss @ -40°C
0.03dB
Loss @ -40°C
0.02dB

Rubber Insulated Fiber Optic Cable Protection Sleeve / Wire Heat Shrink Tubing

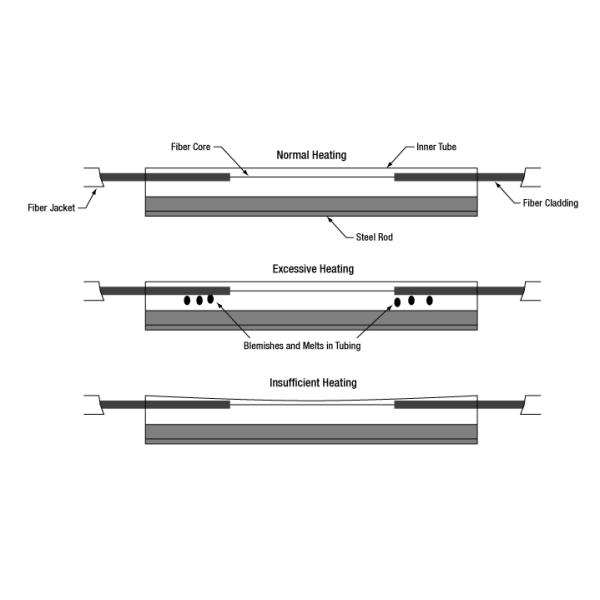

Product features: designed by the cross-linked polyolefin, hot-melt pipes and reinforced stainless steel fiber components to connect protection components.

1. does not affect the photoconductivity of optical fibers.

2. protect the connection point and improve the mechanical strength.

3. easy to operate, reduce the risk of damage to the optical fiber installed.

4. transparent sleeve makes the condition of the optical fiber connection clear.

5., the sealing structure to connect with good temperature and humidity properties.

Rubber Insulated Fiber Optic Cable Protection Sleeve / Wire Heat Shrink Tubing
