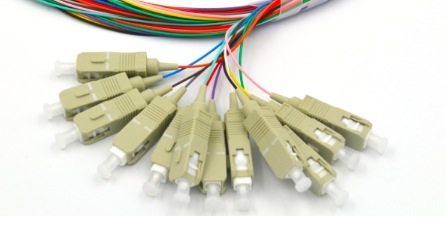

12 Cores Optical Fiber Patch Cord SC / UPC 1.5 Meter Fiber Optic Pigtail
12 Cores Optical Fiber Patch Cord SC / UPC 1.5 Meter Fiber Optic Pigtail
12 Cores Optical Fiber Patch Cord SC / UPC 1.5 Meter Fiber Optic Pigtail
12 Cores Optical Fiber Patch Cord SC / UPC 1.5 Meter Fiber Optic Pigtail
Specifications
Brand Name :
ANSHI
Model Number :
AS-ODF--PG-SC/UPC
Certification :
ISO9001
Place of Origin :
China
MOQ :
CAN DISCUSS
Price :
Negotiable
Supply Ability :
100000 pcs per month
name :
12 core fiber cable
Return loss :
≥50.00dB(PC) ≥65.00dB(APC)
Connector Type :
SC/UPC
Length :
1m,2m,3m... can customize
Fiber Type :
SM/MM
Tensile Strength :
≥10KGS
Repeatability :
≤0.1
Insertion loss :
0.3dB
fiber :
corning
Description

12 cores / fibers Multi-fiber Pigtail Fiber Optic Pigtail SC/UPC 1.5 Meter pigtail, Can be customized

Specifications

Fiber Optic Pigtail

1.SC,LC,FC,ST,MU,MTRJ,D4,DIP,E2000

2.0.9mm / 2.0mm / 3.0mm

3.SM/MM SX/DX

41.MM,3MM.5MM

Technical specifications:

12 Cores Optical Fiber Patch Cord SC / UPC 1.5 Meter Fiber Optic Pigtail

Pigtail Connector PC (SM) UPC (SM) APC (SM) MM
Return Loss (dB) ≥45 ≥50 ≥60 ≥35
Insertion Loss (dB) ≤0.2 (max≤0.3)
Repeatability (dB) ≤0.1
Durability(1/Matings) ≥500
Operation Temperature (°C) -25~+70
Tensile Strength (N) ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber 9/125um, 50/125um,62.5/125um,ect
diameter 0.9mm 2.0mm, 3.0mm etc
Cable material PVC, LSZH
Cores Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc
