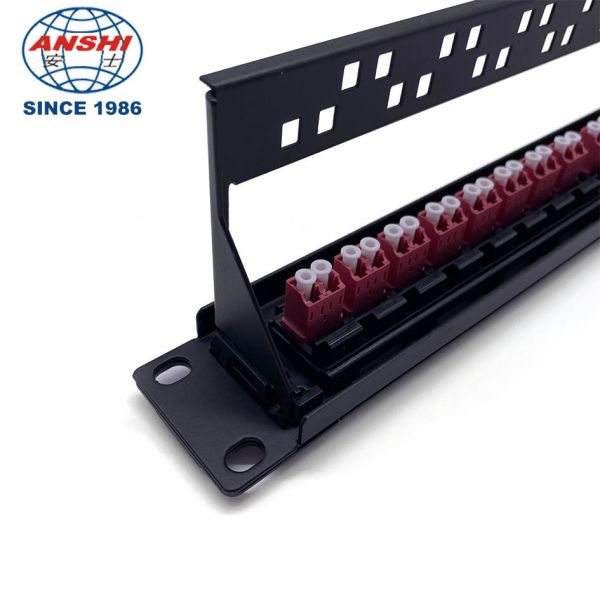

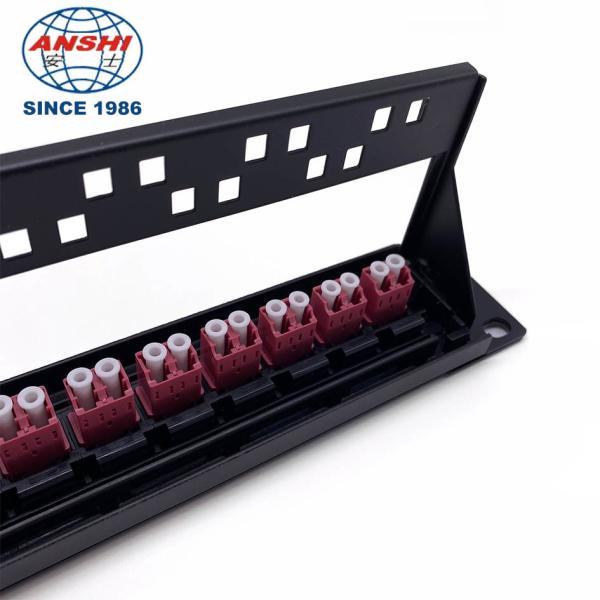

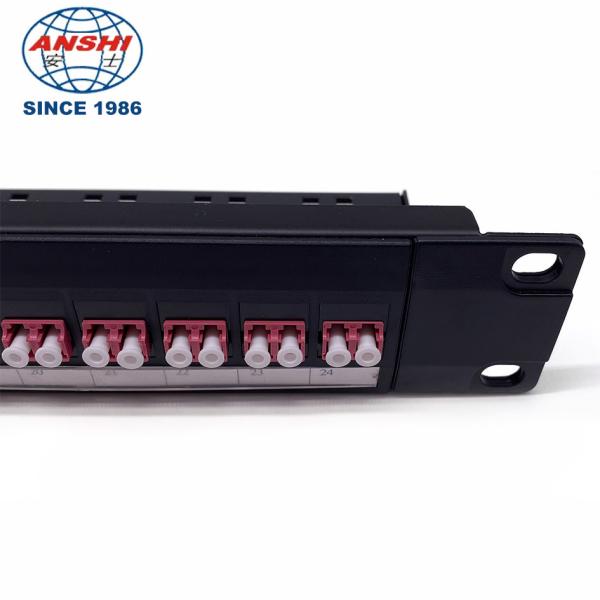

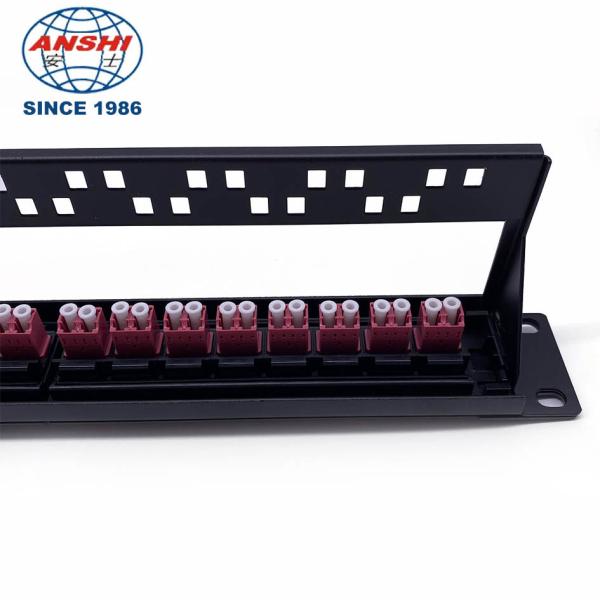

Rack Mount ODF Fiber Optic Patch Panel For Telecommunications
Rack Mount ODF Fiber Optic Patch Panel For Telecommunications
Rack Mount ODF Fiber Optic Patch Panel For Telecommunications
Rack Mount ODF Fiber Optic Patch Panel For Telecommunications
Rack Mount ODF Fiber Optic Patch Panel For Telecommunications
Rack Mount ODF Fiber Optic Patch Panel For Telecommunications
Rack Mount ODF Fiber Optic Patch Panel For Telecommunications
Rack Mount ODF Fiber Optic Patch Panel For Telecommunications
Specifications
Brand Name :
ANSHI
Model Number :
AS-FPP-JY-24P-LC
Certification :
ROHS, ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
20,000 pcs/week
Product Name :
Indoor Termination Box
Installation :
Wall mount
Dimension :
19”
Max Capacity :
24 Cores
Application :
FTTH system
Color :
Can be customized
Description

ANSHI 19 Inch Rack Mount 24 Ports Fiber Optic Patch Panel ODF

Product Description

Feature:

Technical Information:


Type: Cable installation, wall mount
Size: 40x38x14cm , 30x30x8.5cm, 40.5x38.2x8.5cm

Capacity: 48 SC, 96 LC
Connector options: SC, SC/APC, LC, LC/APC, ST, FC

Key Features:

1) Standard size, light weight and reasonable structure

2) Splice tray inside changeable

3) Can be used in 19'', 23'' standard distribution frame

4) Suitable for ribbon and single fiber

5) Various panel plate to fit different adapter interface

6) Front mark on the plate is easy for identification and operation

7) 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters

8) Easy for management and operation

Product Application:

1) Telecommunications subscriber loop

2) Fiber to the home (FTTH)

3) LAN/WAN

4) CATV

Electricity Performance:

Environmental temperature -25 - 55°C
Atmosphere pressure 70~106Kpa
Insulating resistance >2×104 MΩ/500VDC
Relative humidity <85%(when the temperature is below 30°C)
Voltage resistance strength Under the effect of 15kv/DC/1min, non-puncture, and no arc-over

Rack Mount ODF Fiber Optic Patch Panel For TelecommunicationsRack Mount ODF Fiber Optic Patch Panel For TelecommunicationsRack Mount ODF Fiber Optic Patch Panel For TelecommunicationsRack Mount ODF Fiber Optic Patch Panel For Telecommunications
