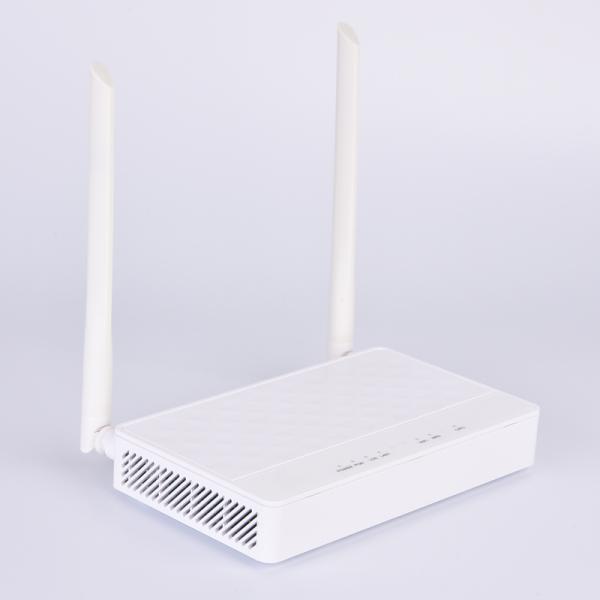

AS-ONU12 1GE+CATV+2.4G WIFI
AS-ONU12 1GE+CATV+2.4G WIFI
AS-ONU12 1GE+CATV+2.4G WIFI
AS-ONU12 1GE+CATV+2.4G WIFI
AS-ONU12 1GE+CATV+2.4G WIFI
AS-ONU12 1GE+CATV+2.4G WIFI
AS-ONU12 1GE+CATV+2.4G WIFI
AS-ONU12 1GE+CATV+2.4G WIFI
Specifications
Brand Name :
ANSHI
Model Number :
AS-ONU12
Certification :
ISO9001, SGS
Place of Origin :
ZHEJIANG, CHINA
MOQ :
Negotiable
Price :
Negotiable
Product name :
1GE+1FE+CATV+2.4G WIFI
Size :
168*130*28mm
Weight :
230g
Power adapter input :
100V～240V AC，50Hz～60Hz
PowerSupply requirement :
12V DC，1.5A
Power consumption :
<10w
Working temperature :
-10°C ~ +45°C
Module type :
Class B+ SC/APC
Working wavelength :
up 1310nm，down 1490nm ;CATV：1550nm
Interface type :
1*RJ45
Description

AS-ONU12 1GE+CATV+2.4G WIFI

Product Overview
AS-ONU12 model ONU is a user terminal device independently developed in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators. AS-ONU12 is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.
Features
♦ Support EPON/GPON mode and switch mode automatically
♦ GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
♦ GPON:8 T-CONTs,32 GEM Ports
♦ Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote confifiguration and maintenance
♦ Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode
♦ etc
♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
♦ Support PPPoE/ Static IP/ DHCP
♦ Support IPv4, IPv6 and IPv4/IPv6
♦ Support fifirewall level Settings, support based on URL/MAC/ IP/ address frame fifiltering
♦ Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
♦ Qos supports PQ, WRR, and CAR queue scheduling
♦ Provide 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings,
♦ Support DDSN, ALG, DMZ and UPNP
♦ Support CATV interface for Video Service
Highlights
♦ Compatible with 95% Third-party OLTs (Including Huawei/ZTE/Fiberhome/BT-PON and so on)
♦ Spport EPON/GPON mode and switch mode automatically
♦ Support Route PPPoE/DHCP/Static IP and Bridge mode
♦ Support ONU auto-discovery/Link detection/remote upgrade of software
♦ Support IPv4/IPv6 dual mode
♦ Support Firewall function and IGMP multicast feature
♦ Support LAN IP and DHCP Server confifiguration
♦ Support Port Forwarding and Loop-Detect

AS-ONU12 1GE+CATV+2.4G WIFIAS-ONU12 1GE+CATV+2.4G WIFIAS-ONU12 1GE+CATV+2.4G WIFI
