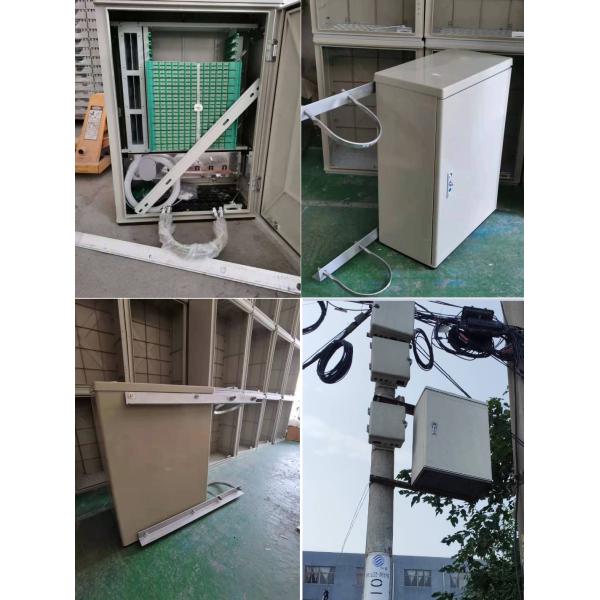

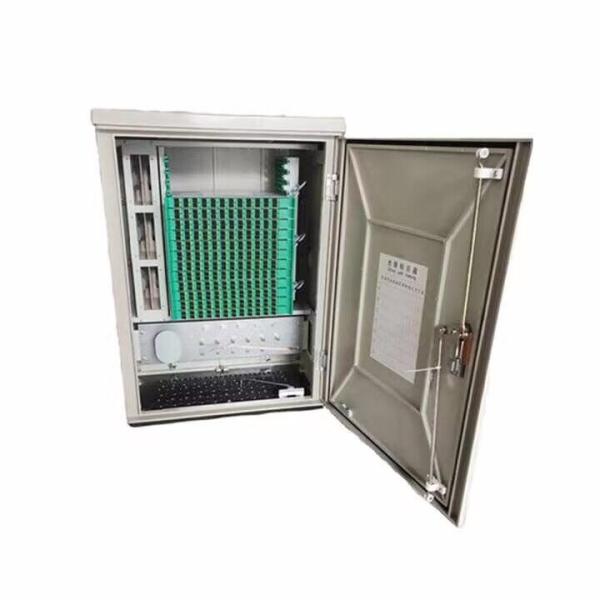

144, 96, 288 Fiber PON Cabinet With Pole / Wall Bracket Fiber Distribution Hub (FDH)
144, 96, 288 Fiber PON Cabinet With Pole / Wall Bracket Fiber Distribution Hub (FDH)
144, 96, 288 Fiber PON Cabinet With Pole / Wall Bracket Fiber Distribution Hub (FDH)
144, 96, 288 Fiber PON Cabinet With Pole / Wall Bracket Fiber Distribution Hub (FDH)
144, 96, 288 Fiber PON Cabinet With Pole / Wall Bracket Fiber Distribution Hub (FDH)
144, 96, 288 Fiber PON Cabinet With Pole / Wall Bracket Fiber Distribution Hub (FDH)
144, 96, 288 Fiber PON Cabinet With Pole / Wall Bracket Fiber Distribution Hub (FDH)
144, 96, 288 Fiber PON Cabinet With Pole / Wall Bracket Fiber Distribution Hub (FDH)
144, 96, 288 Fiber PON Cabinet With Pole / Wall Bracket Fiber Distribution Hub (FDH)
144, 96, 288 Fiber PON Cabinet With Pole / Wall Bracket Fiber Distribution Hub (FDH)
Specifications
Brand Name :
ANSHI
Model Number :
AS-MOC144
Certification :
ROHS, ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
2000pcs/week
product name :
144 cores 288 fibers wall/pole mount cabinet
Use :
FTTH Solution
Connector Type :
LC, SC, FC, ST
Product Size :
750*550*310MM
Material :
SMC Or Stainless steel
Polished :
UPC or UPC
Color :
Grey
Fiber Count :
144 or 288 Fibers
Fiber Mode :
SM/MM
Description

144, 96, 288 Fiber PON Cabinet With Pole/Wall Bracket Fiber Distribution Hub (FDH)

Product Description
Product name 144 cores 288 fibers wall/pole mount cabinet
Pre-Terminated Connector LC, SC, FC, ST
Polished UPC or UPC
Fiber Mode SM/MM
Fiber Count 144 or 288 Fibers
Size 750*550*310
Jacket Color Grey
Jaket Material SMC Or Stainless steel
Warranty Limited Life
Application FTTH Solution
Product Keywords Fiber Distribution Hub,Fiber Distribution Hub Pole,Fiber Distribution Hub 144 Fiber

Features:

  • connecting trunk and distributing optical fiber cable.

  • capability of splicing, storage, and fiber cable distribution.

  • Fiber optic cabinet, max up to 12/24/48 trays, 12 ports one tray, total 144/288/576 ports, FC,ST or SC,LC adapter can be installed.

  • Optional cabinet material: SMC, stainless steel.

  • Effective:rain-proof, dust -proof,pests-proof

Technical parameters:

Operation Conditions:

Work Temperature: -40C~+55C

Relative humidity:≤95%(+30C)

Atmospheric pressure: 70KPa~106 KPa

Photoelectric property

Insertion loss: ≤0.2dB

return loss:PC≥45 dB UPC≥50dB APC≥60dB

Isolation resistance between high voltage protection place and frame ≥20000MΩ(DC500V)

withstand voltage between high voltage protection place and frame ≥3000V(DC)/1min (no puncture,no flashover)

144, 96, 288 Fiber PON Cabinet With Pole / Wall Bracket Fiber Distribution Hub (FDH)144, 96, 288 Fiber PON Cabinet With Pole / Wall Bracket Fiber Distribution Hub (FDH)
