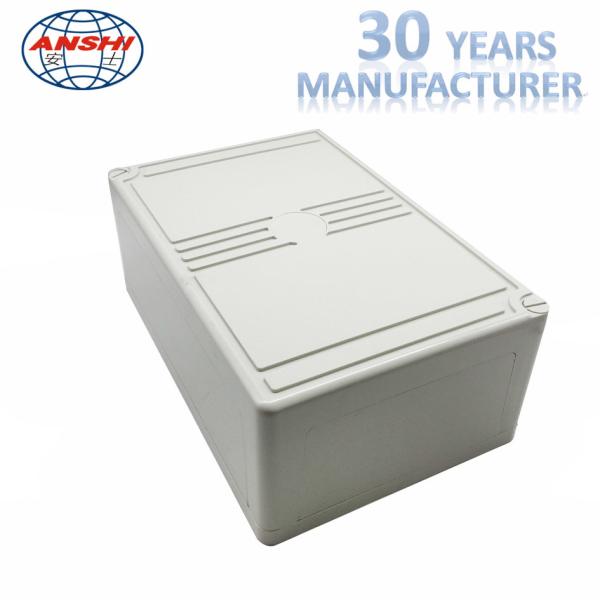

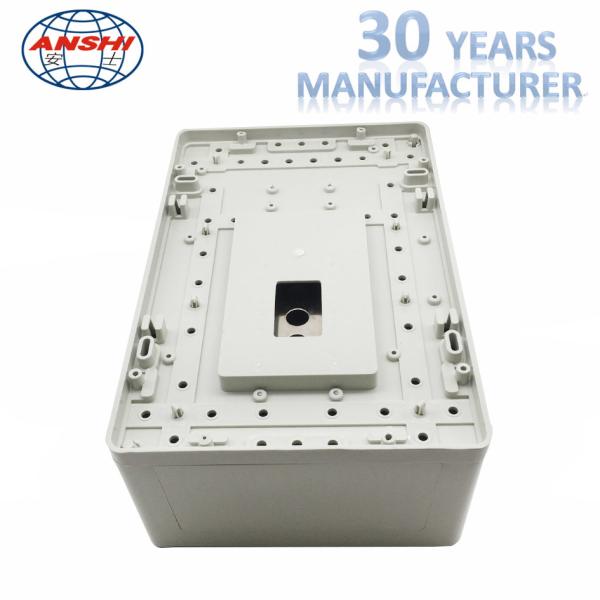

Screw Lock UK Type Krone Cable Distribution Box 100 Pair For LSA Module
Screw Lock UK Type Krone Cable Distribution Box 100 Pair For LSA Module
Screw Lock UK Type Krone Cable Distribution Box 100 Pair For LSA Module
Screw Lock UK Type Krone Cable Distribution Box 100 Pair For LSA Module
Screw Lock UK Type Krone Cable Distribution Box 100 Pair For LSA Module
Screw Lock UK Type Krone Cable Distribution Box 100 Pair For LSA Module
Specifications
Brand Name :
ANSHI
Model Number :
AS-DB100B
Certification :
ISO 90001, SGS, DAS
Place of Origin :
ZHEJIANG, CHINA
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
50000 Pieces per Month
Packaging Details :
69*34*54cm, 18pcs/ctn, 24kgs, 23kgs
product :
Telephone Distribution Box
Material :
ABS
Color :
White
Type :
100 pairs
Lock :
Screw Lock
Application :
Telephone
Description

Screw Lock UK Type Krone Cable Distribution Box 100 Pair For LSA Module

Features:


1) Can be mounted with LSA-PLUS 10-pair distribution or connection module


2) Waterproof box, suitable for outdoor wire distribution


3) Material of house: ABS


4) Including stainless steel mounting frame, but modules to be ordered separately


5) Including 1 back mount frame(10ways)


6) Compatible with Krone modules

Specifications:

1. Environment condition: -5-40 degree Celsius ;Relative humidity <85% (+30 degree Celsius);Atmospheric pressure: 70-106KPa ;


2. The modules are compatible with KRONE LSA-PLUS modules.


3. The design of contacts basing on the principle of airtight contacting makes a completely reliable connection between the contacts and wires


4. Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N


5. Internal diameter of connection wire: 0.4-0.6 mm


6. The performance of anti-burn: PBT (UL94V-0)or anti-burn ABS (UL94V-0),Combustibility achieved GB/T 5169.7-1985 standard

7. Insulated resistance: under standard atmospheric pressure ,Insulated resistance no less than 1,000M ohm between the two disjunct connections


8. Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition


9. Intermediate resistance: no more than 3m ohm under standard examination condition


10. Dielectric strength: according to industry standard


11. Specification:10-30 pairs,Waterless,every specification has connection or disconnection types


12. Life: durability 200 cycles

Screw Lock UK Type Krone Cable Distribution Box 100 Pair For LSA ModuleScrew Lock UK Type Krone Cable Distribution Box 100 Pair For LSA Module
