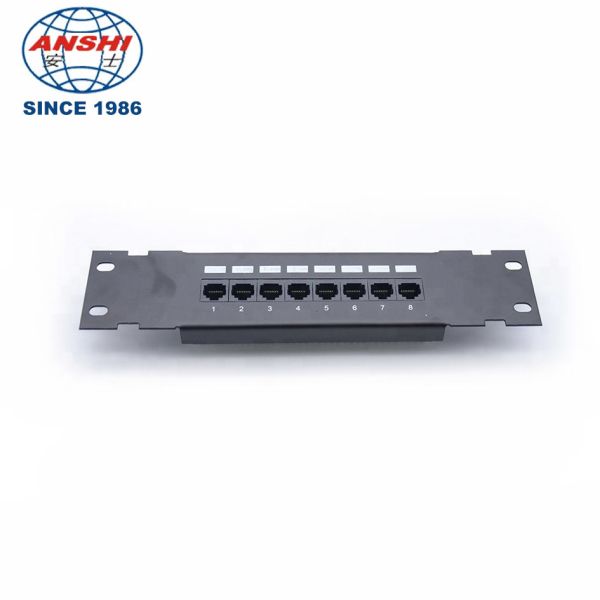

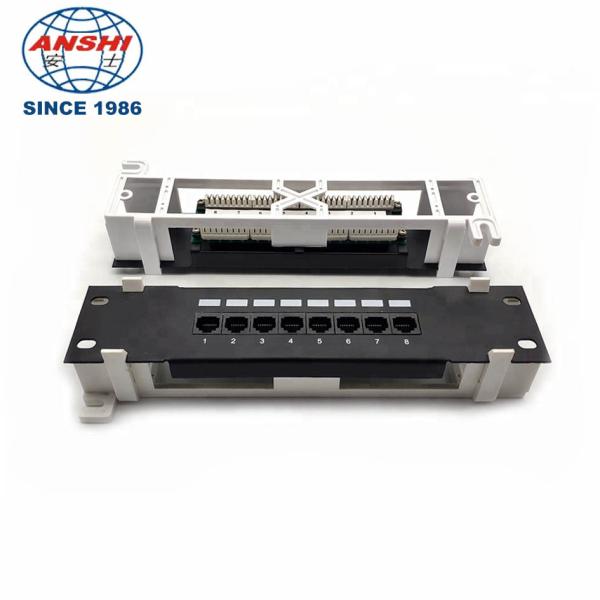

CAT5e 110 IDC Type Rack Mount Patch Panel 1U 8 Port
CAT5e 110 IDC Type Rack Mount Patch Panel 1U 8 Port
CAT5e 110 IDC Type Rack Mount Patch Panel 1U 8 Port
CAT5e 110 IDC Type Rack Mount Patch Panel 1U 8 Port
CAT5e 110 IDC Type Rack Mount Patch Panel 1U 8 Port
CAT5e 110 IDC Type Rack Mount Patch Panel 1U 8 Port
CAT5e 110 IDC Type Rack Mount Patch Panel 1U 8 Port
CAT5e 110 IDC Type Rack Mount Patch Panel 1U 8 Port
Specifications
Brand Name :
ANSHI or OEM
Model Number :
AS-PL-4019-8
Certification :
SGS; DAS
Place of Origin :
ZHEJIANG, China
MOQ :
100
Price :
Negotiable
Supply Ability :
10000 Pieces per Month
Name :
1u 8 port 10 inch patch panel
Type :
UTP，Wall Mount
Port :
8 ports
Height :
1U, 10''
Category :
CAT5e/CAT6/CAT6A
Size :
255x64x48mm
Weight :
304g
IDC :
Krone/110/Dual IDC
Color :
Black
Description

1U 10'' Inch 8 Port wall moun UTP Patch Panel 110 IDC Type, can OEM

Full Technical Specifications

1)Toolless and cabinet designed
2) Label and inlaid marks for convenience of identification and network management
2)Highly resistance and inflaming retarding material, Grade UL94-0
3)Connection strap to adopt gold plate,alloy of Cu and Be,IDC to use the alloy of Cu and P

1) Firm and easy installation reducing the installation and operation cost.
2) Transmission stability.
3)Module part is fitted with shield, protecting inner 1DC contact from irregular working in rugged environment
4)Meet or exceed the current T568A and T568B standard

Mechanical property
Times of repetitive use:≥800
Termipoint life:≥200
Insulation diameter:0.7mm-1.4mm(1.6mm)
Temperature interval:-40°C-70°C(storing)
-10°C-60°C(installation)
-10°C-60°C(working)
Application standard:
ISO/IEC11801:2002
IEC 60603-7-4(edition:1.02003-01-10)
IEC 60603-7-2(edition:1.02003-01-10)
EIA/TIA568B.2-1(2002de-embedded)

Electrinic Voltage Rating :125 VAC RMS
Current Rating : 1.5AMP
Contact Resistance:110 Milliohs MAX.
Insulation Resistance:1 000 megohms MIN 500 VDC
Dielectric Strength :750VAC RMS 60Hz,1 MIN
Environment Storge:-40~85°c
Operation:0~70°c
Confirm to TIA/EIA 568A Cat.6
Machanical Contact Material: Phosphor Bronze Stamp Pin ,T=0.30mm
IDC Contact Material: Phosphor Bronze ,T=0.50mm with TIN Plating
RJ45 Jack:IFE:750 times MIN.
IDC Life :200 times MIN.
Wire:AWG 24-26
Tia Cat.6 Perm Link Test: Worst Pair NEXT Margin ≥3dB
Retentiveness of insertion structure:50N 60±5s

Name : 8 Port Patch Panel
Country of origin : Ningbo,China
Description : 10 Inch 1U Patch Panel
Type : Wall Mount
Color : Black
IDC : Krone/110/Dual IDC


CAT5e 110 IDC Type Rack Mount Patch Panel 1U 8 PortCAT5e 110 IDC Type Rack Mount Patch Panel 1U 8 Port
