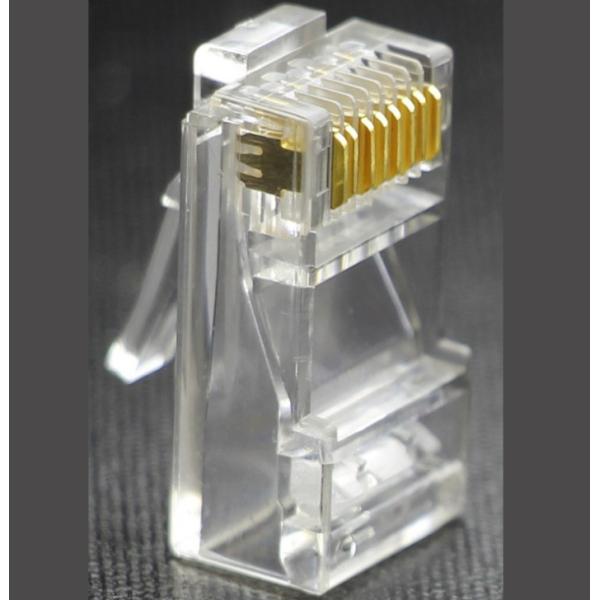

RJ45 8P8C Cat5e UTP Gold Plated Modular Plug
RJ45 8P8C Cat5e UTP Gold Plated Modular Plug
RJ45 8P8C Cat5e UTP Gold Plated Modular Plug
RJ45 8P8C Cat5e UTP Gold Plated Modular Plug
RJ45 8P8C Cat5e UTP Gold Plated Modular Plug
RJ45 8P8C Cat5e UTP Gold Plated Modular Plug
Specifications
Brand Name :
ANSHI
Model Number :
XL-4021A
Certification :
SGS
Place of Origin :
ZHEJIANG
MOQ :
10000pcs
Price :
$0.027-$0.10
Supply Ability :
1000000 pcs per month
Product :
CAT 5e Modular Plug 8P8C
Type :
RJ45, UTP
Category :
CAT5E
Material :
PC
Glod Plated :
Depend on customers
Application :
Telecommunication
Description

RJ45 8P8C Cat5e UTP Gold Plated Modular Plug

PRODUCT FACT

The 8P8C (8 position 8 contact, also backronymed as 8 position 8 conductor; often called RJ45 ) plug is the male type of modular connector commonly used for Ethernet over twisted-pair applications, where the plug on each end terminated using the T568A or T568B pin/pair assignments that are defined in ANSI/TIA-568-C.2 standard.

These connectors are commonly used in computer networking and other telephone applications involving unshielded twisted-pair (UTP), shielded twisted-pair (STP), and multiconductor flat cable. Most network communications today are carried over Category 5e, Category 6 or Category 6A cable with an 8P8C modular plug crimped on each end.

§ SPECIFICATION

-Lead-free & RoHS compliant, certified by TUV.

-Meet the ANSI/TIA-568-C.2, ISO/IEC 2ndedition and CENELEC EN 50173-1 cabling requirements of IEC 60603-7 for RJ45 8-way connector.

ELECTRICAL

-Voltage proof: 1000V DC or AC peek, contact-to-contact.

-Current-carrying capacity: 0.75 Amps minimum

-Contact resistance: 20MΩ maximum

-Insulation resistance: 500MΩ minimum at 10V DC or 100 MΩ minimum at 500V DC

-Input to output resistance: 200MΩ maximum

-DC resistance: 0.2 ohm maximum

MECHANICAL

-Mechanical operation: 750 cycles minimum

-Effectiveness of connector coupling devices: 50 N (11 lbf) for 60s ± 5s

ENVIRONMENTAL

-Temperature: -10℃~60℃

-Humidity: 10%~90%RH

RJ45 8P8C Cat5e UTP Gold Plated Modular Plug
